Home >> Lexus >> 2011 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations >> Electronically Controlled Brake System

Electronically Controlled Brake System

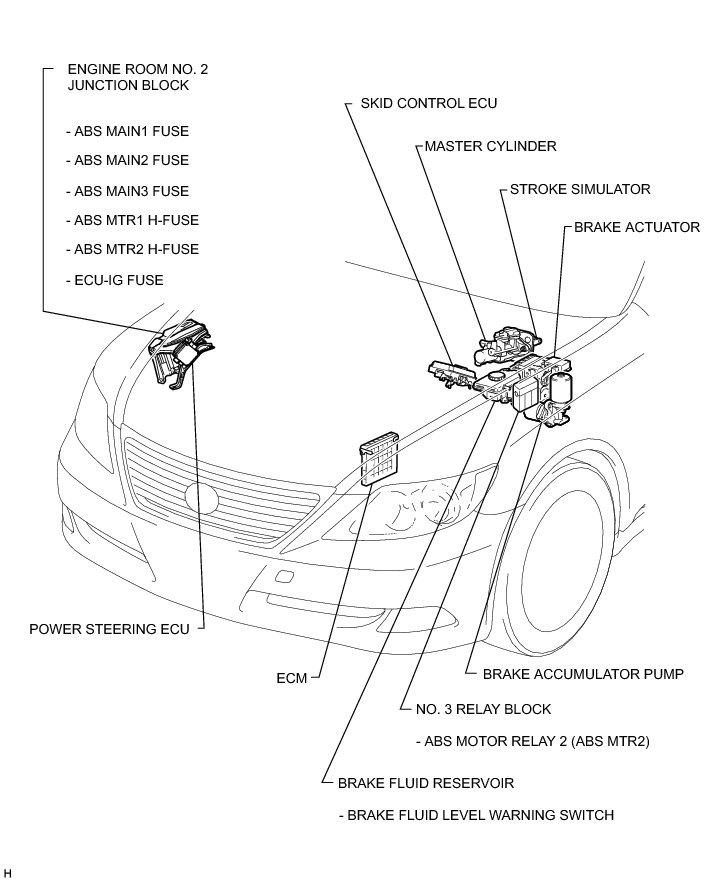

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: PARTS LOCATION
