Service Data





SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

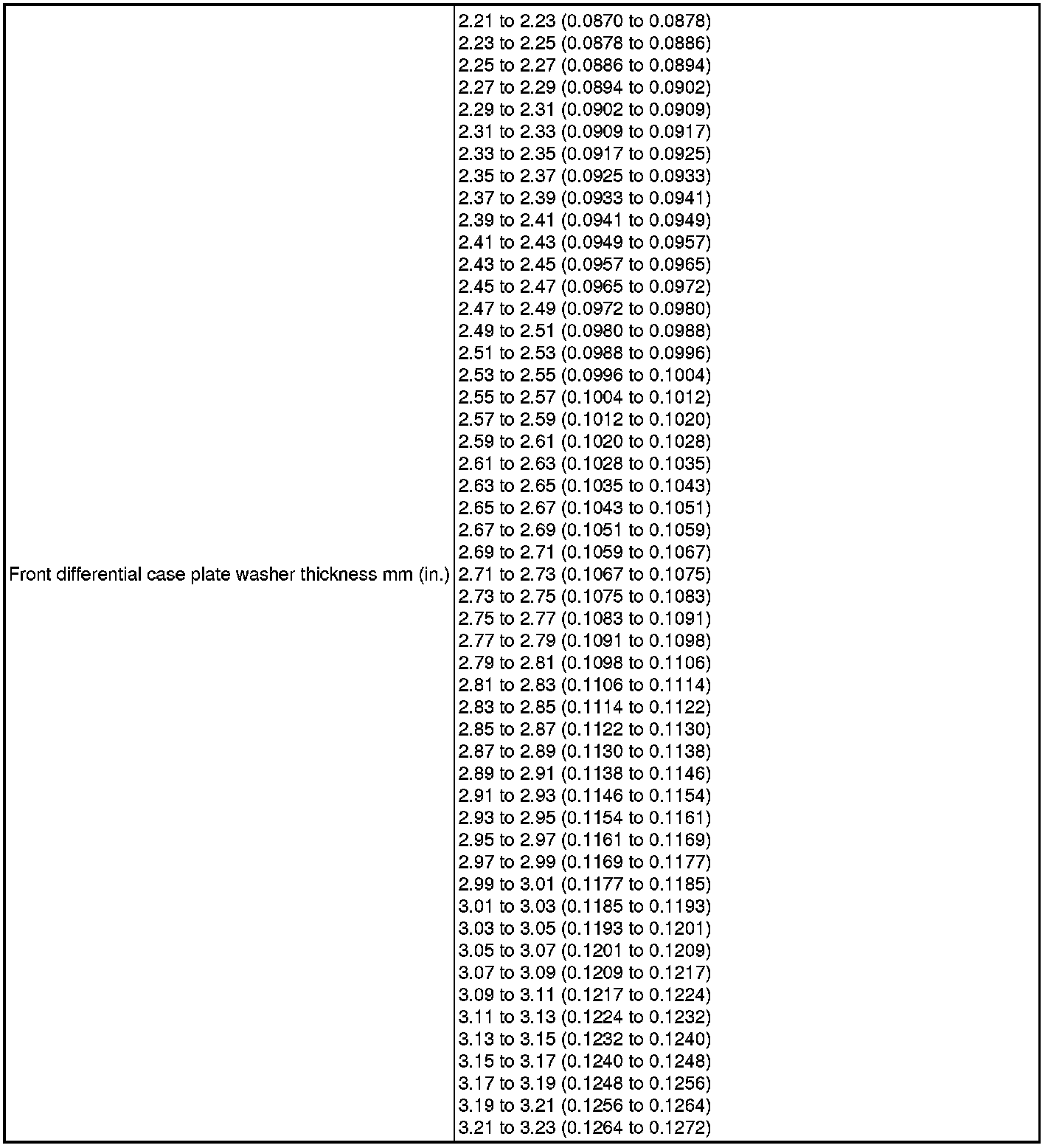

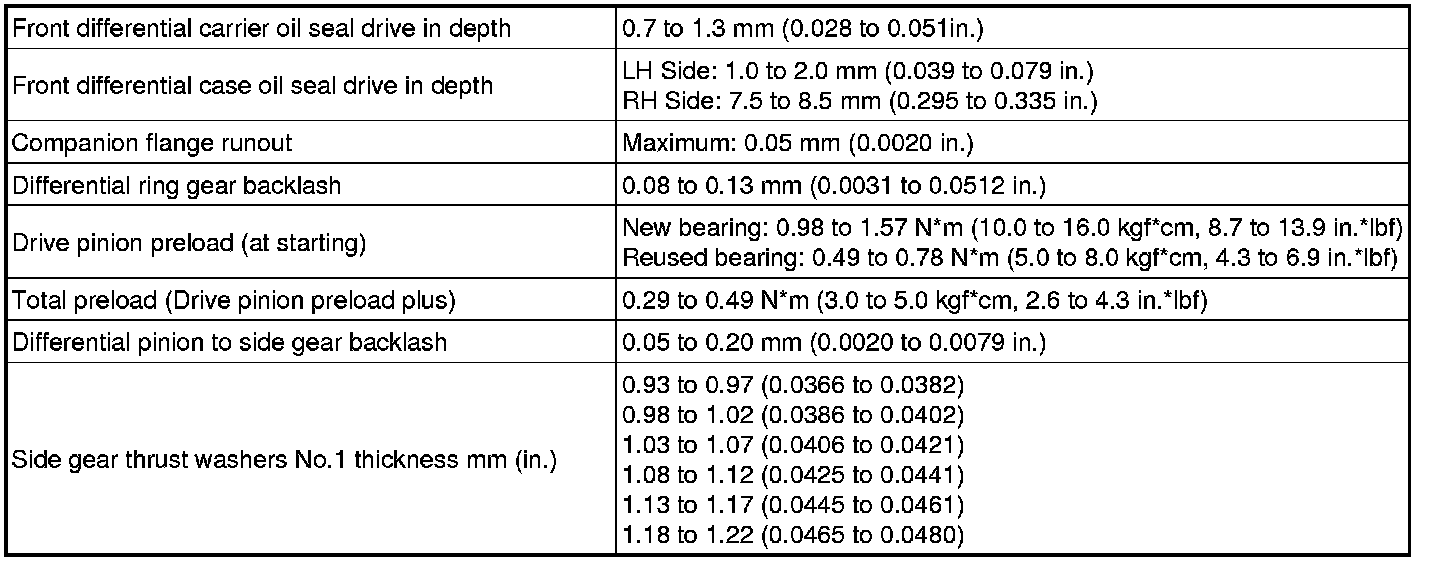

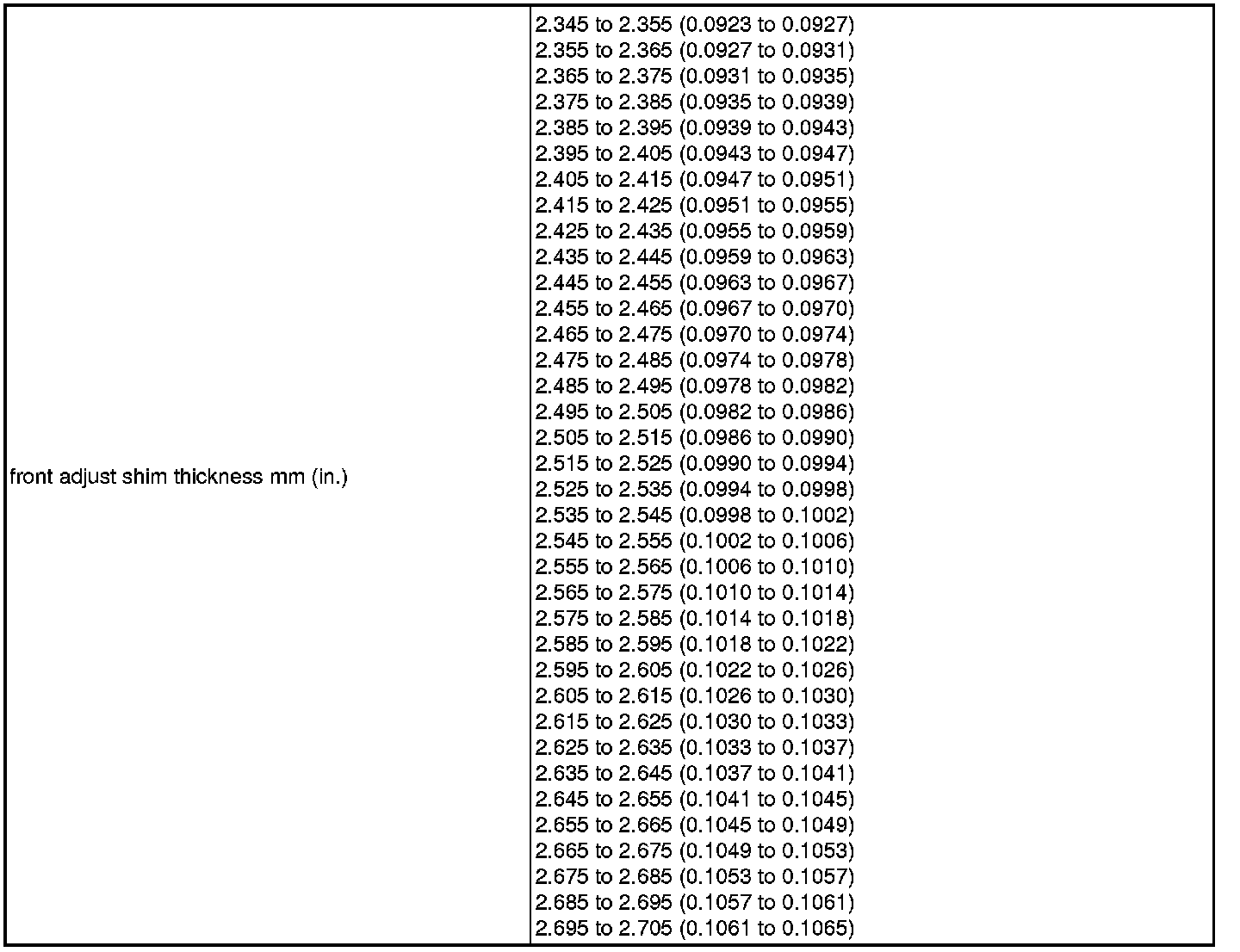

FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD)

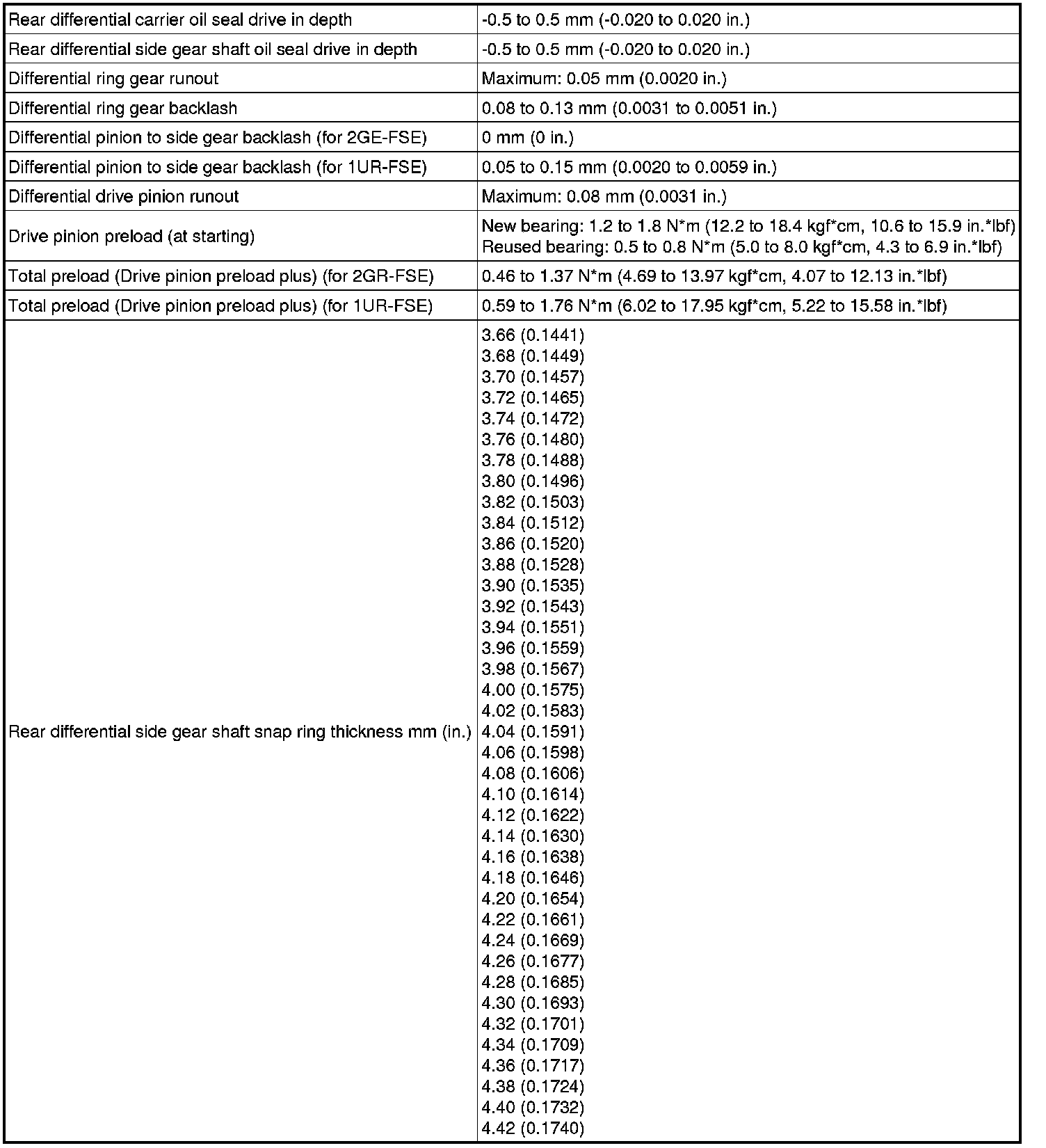

REAR DIFFERENTIAL CARRIER ASSEMBLY
