Removal

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

2. REMOVE FRONT BUMPER ASSEMBLY Removal

3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

(a) Disconnect the sensor connector.

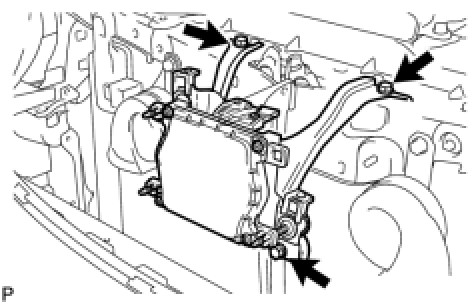

(b) Remove the 3 bolts and millimeter radar sensor assembly.
