Alignment

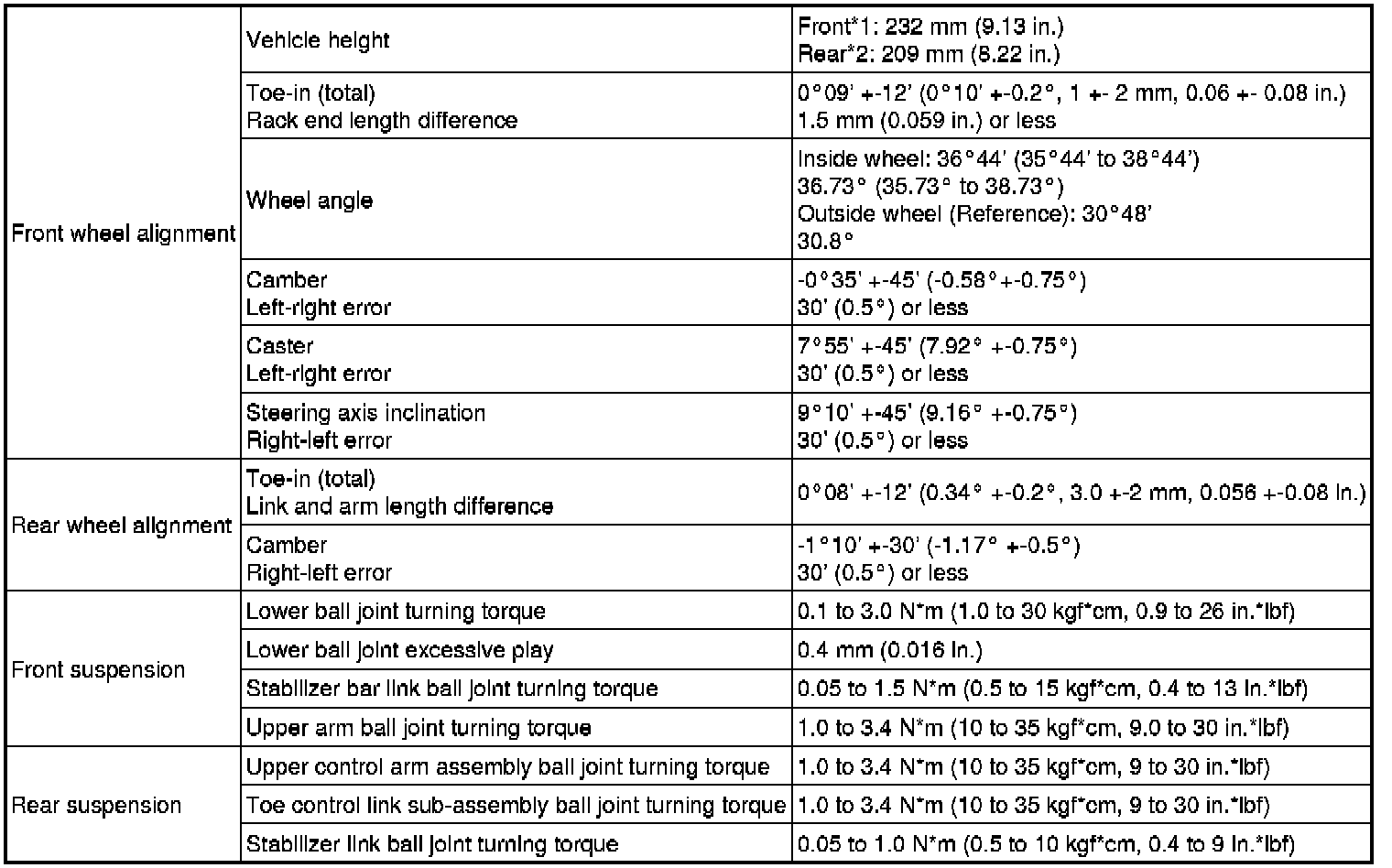

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA





* *1: Measure the distance from the ground to the center of the lower suspension arm mounting bolt.

* *2: Measure the distance from the ground to the center of the lower suspension arm No. 2 mounting bolt.
