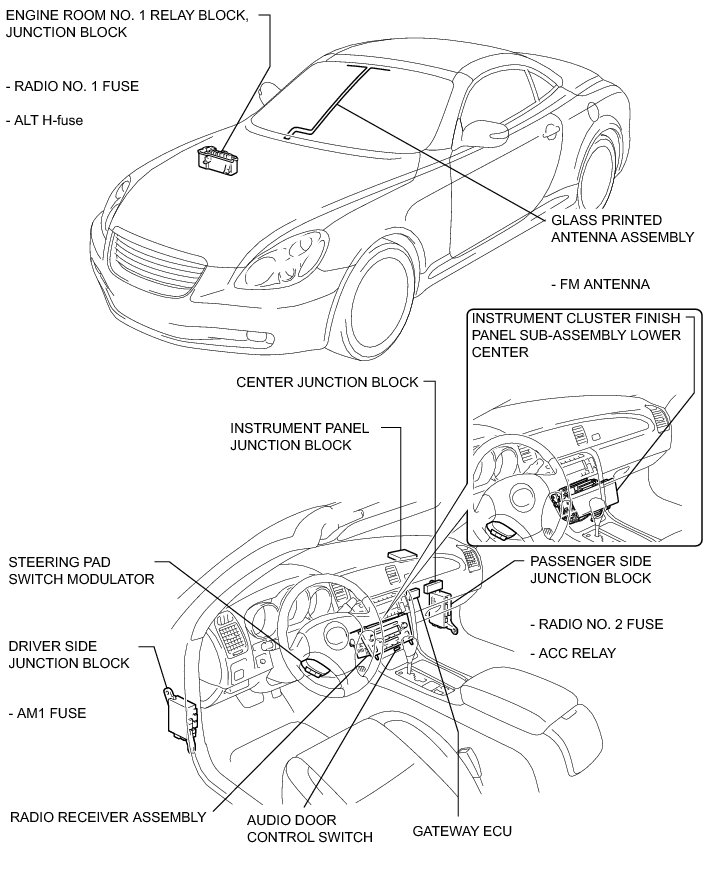

Central Control Module: Locations
AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM (w/o Navigation System): PARTS LOCATION
Instrument Panel - Locations:
