Rear Window Defogger System does not Operate: Wiring Diagram

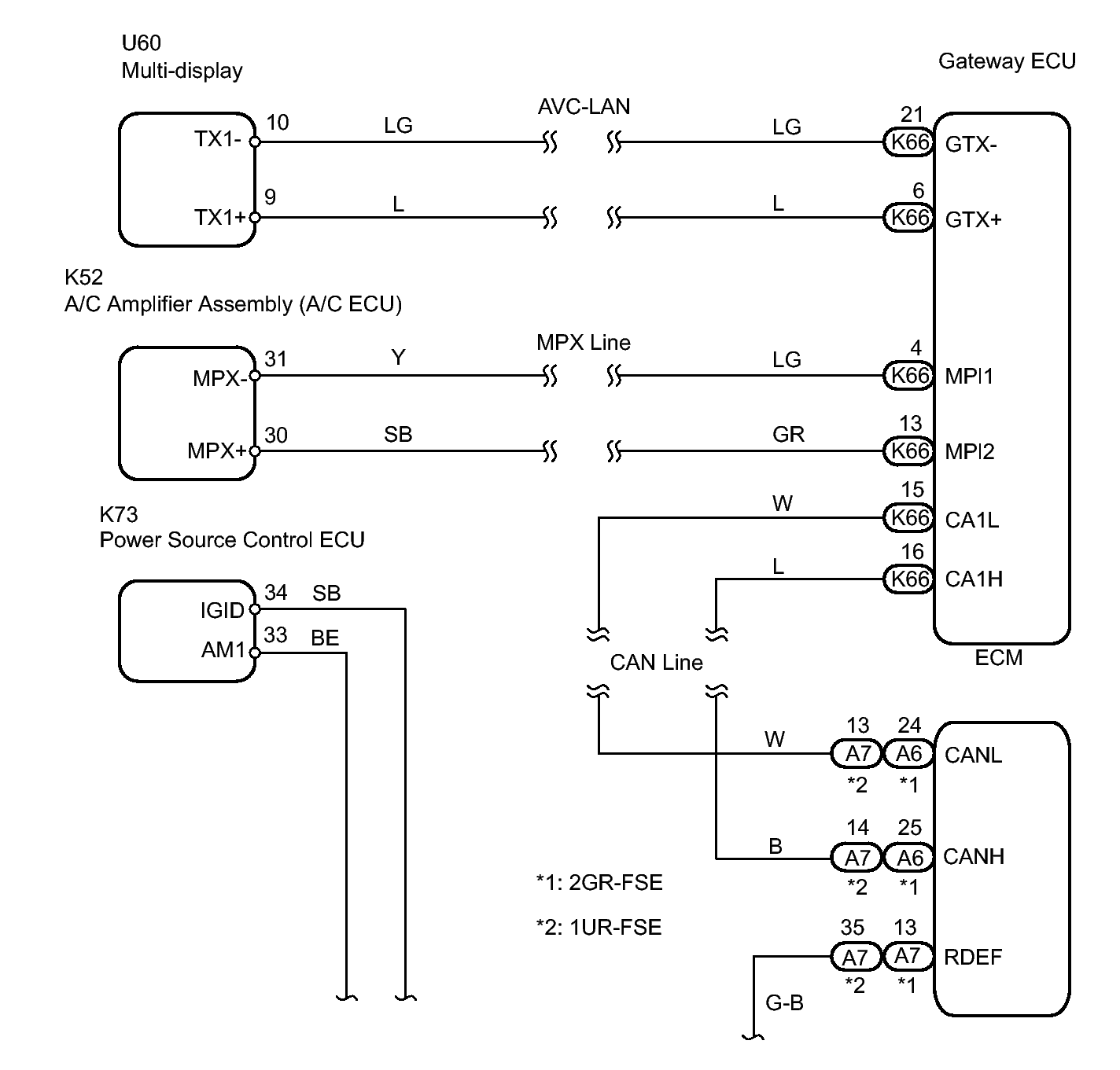

Fig 1: Identifying Rear Window Defogger - Wiring Diagram (1 Of 2)
GTY256344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

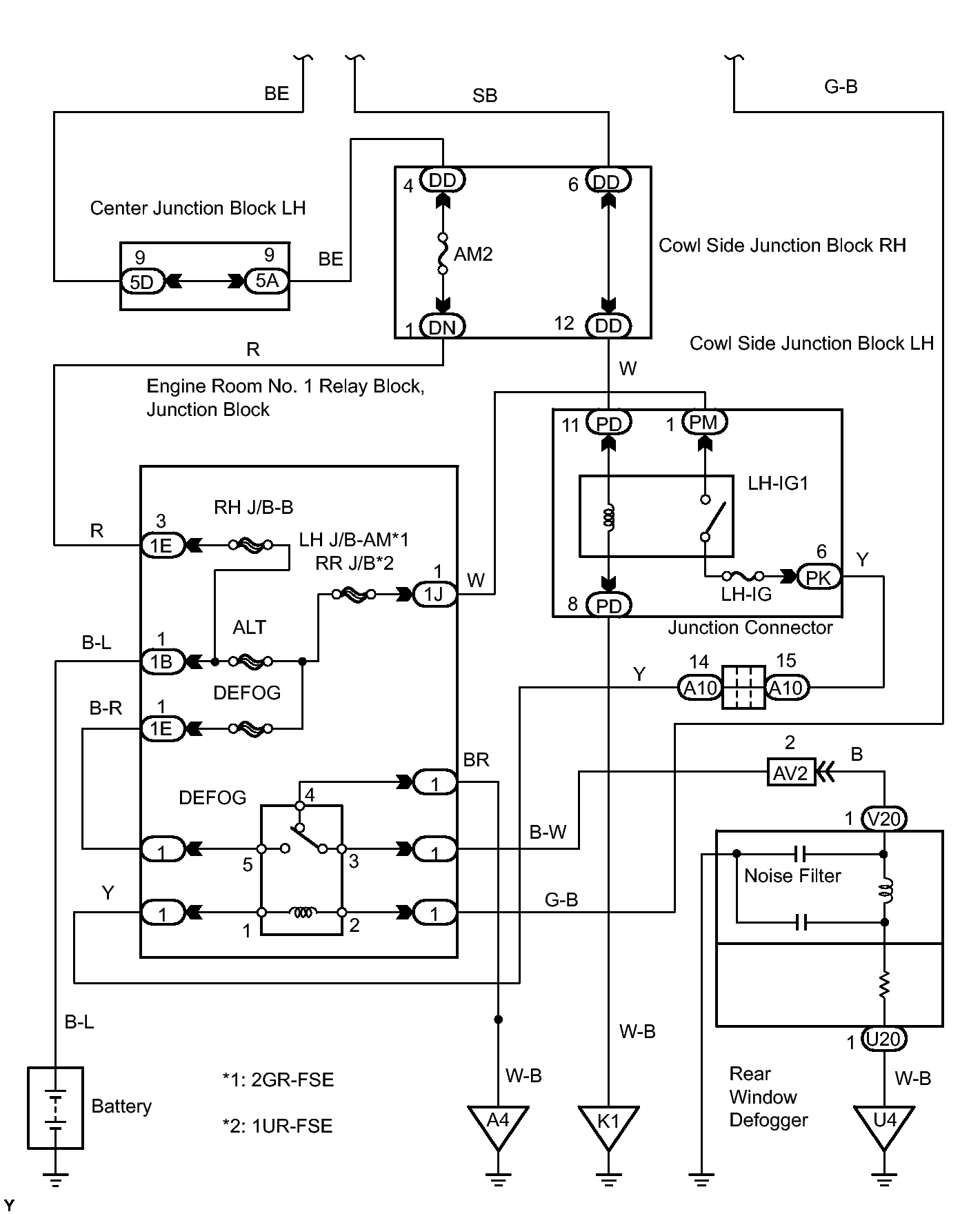

Fig 2: Identifying Rear Window Defogger - Wiring Diagram (2 Of 2)
GTY267280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
