Home >> Lexus >> 2010 >> ES 350 V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications





SERVICE SPECIFICATIONS: SUSPENSION: TORQUE SPECIFICATIONS

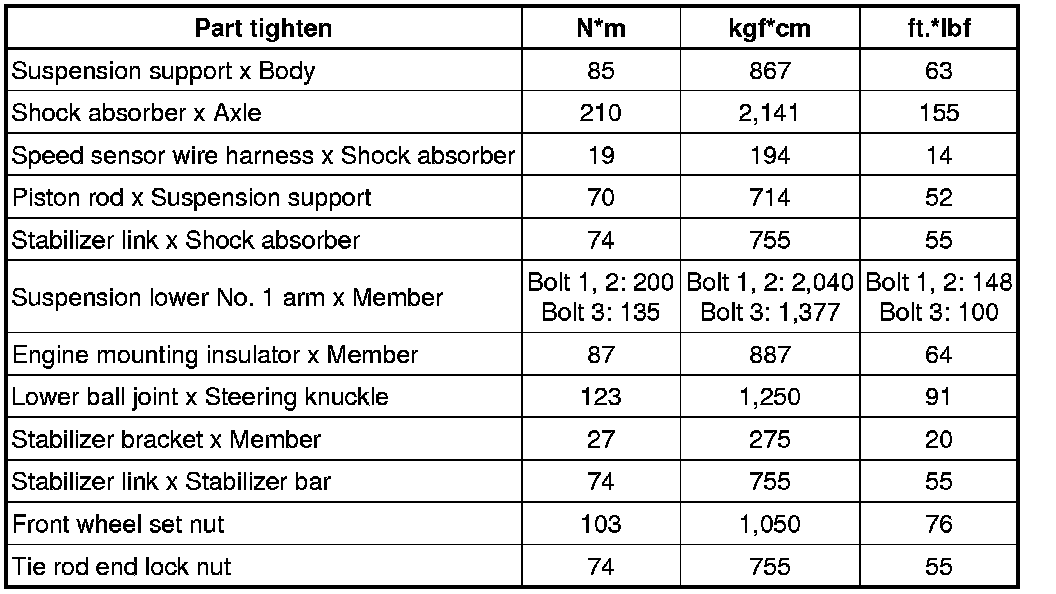

FRONT:

FRONT::

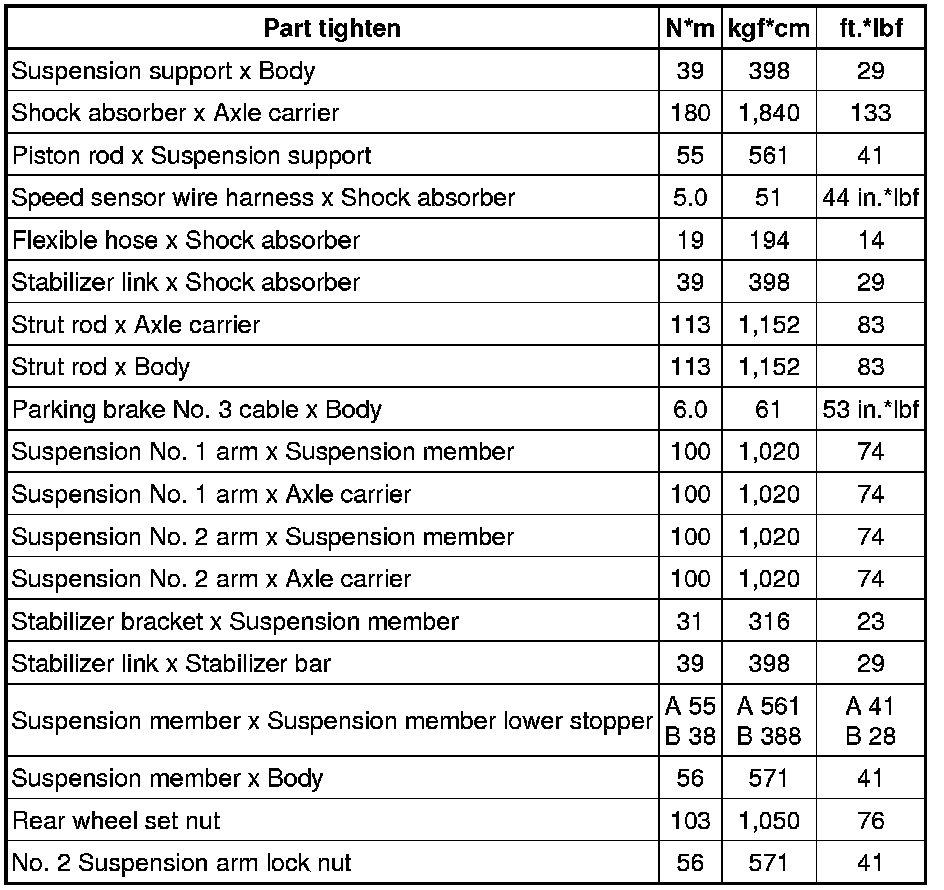

REAR:

REAR::
