Ignition System: Locations

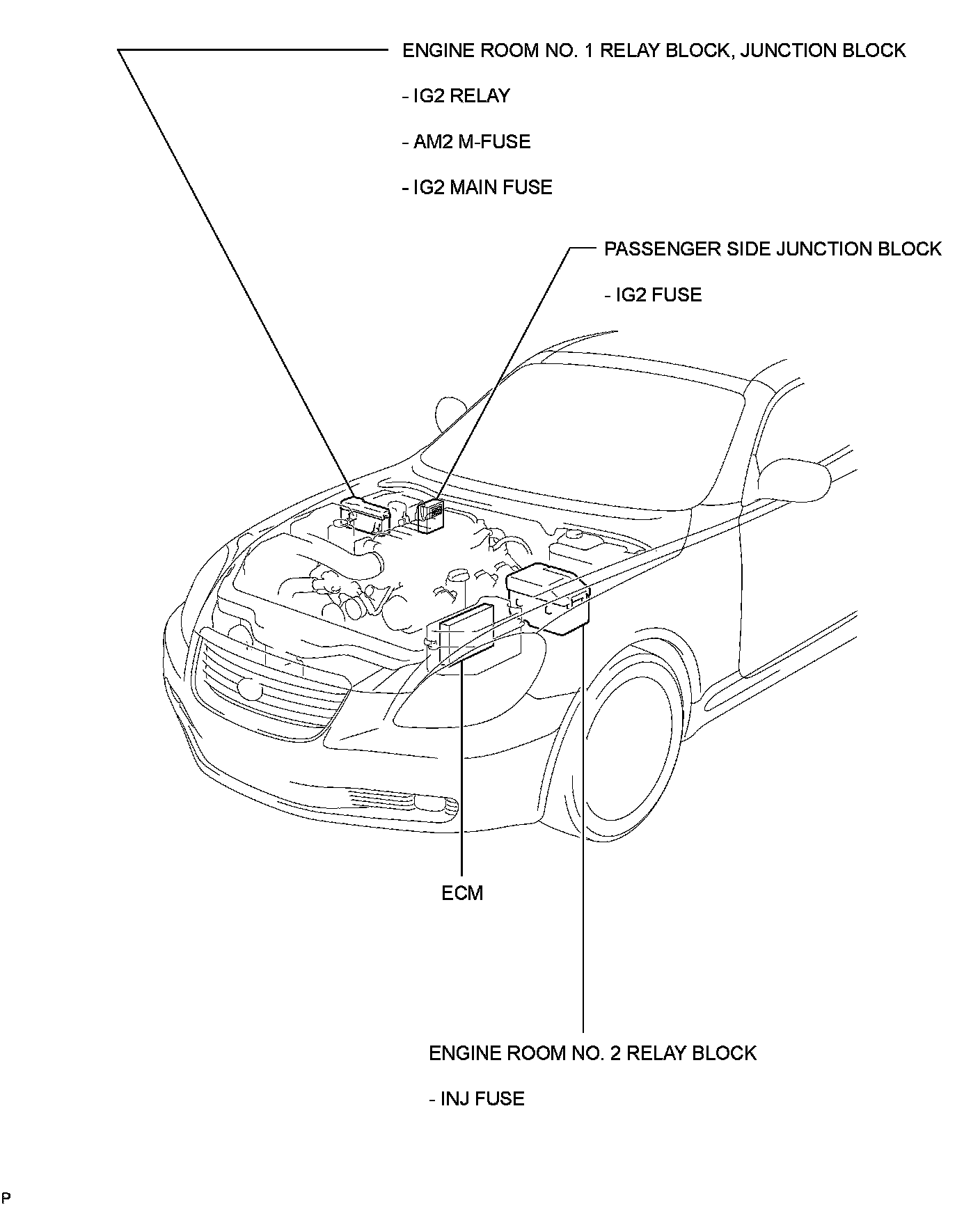

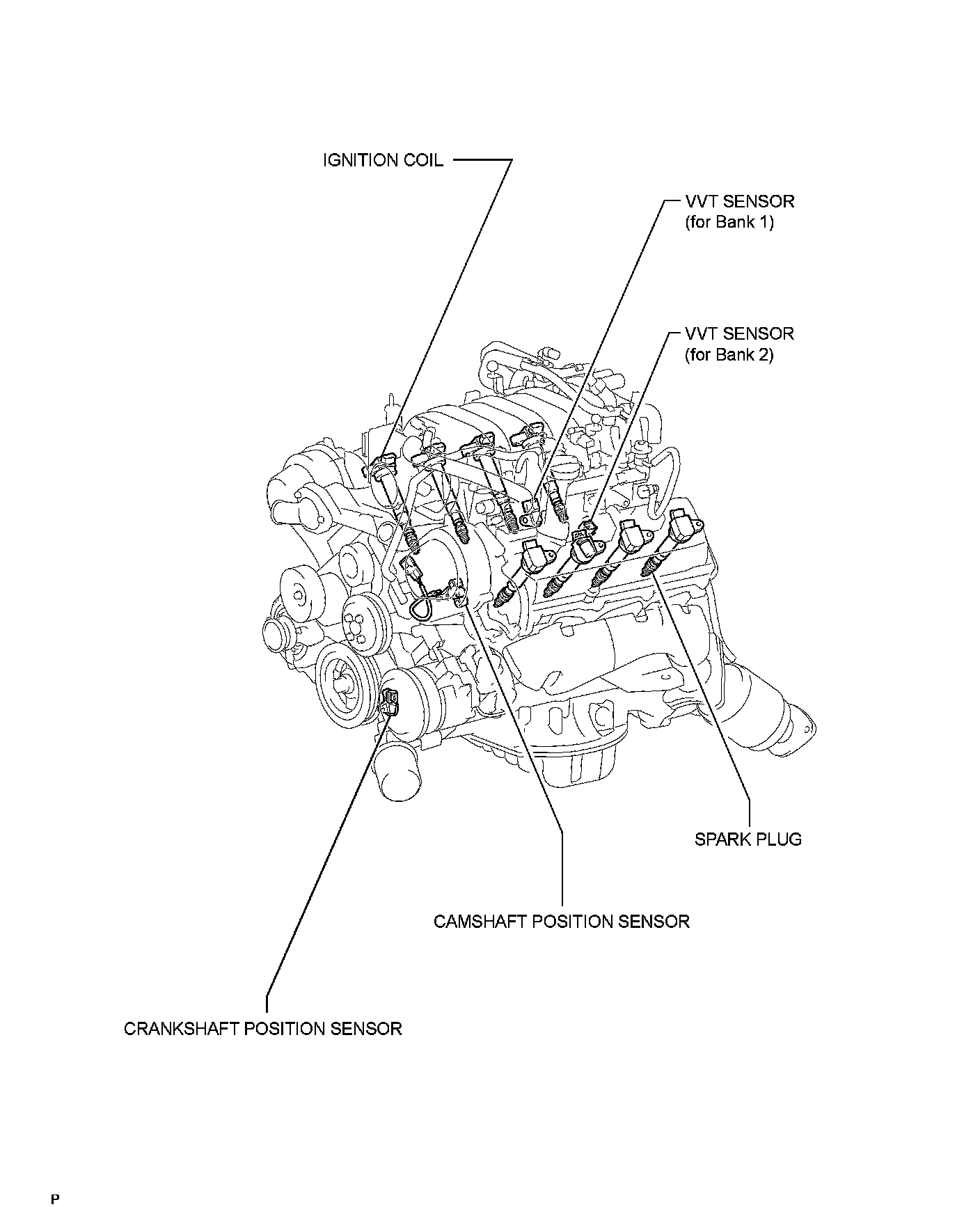

3UZ-FE IGNITION: IGNITION SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
