Millimeter Wave Radar Sensor: Components

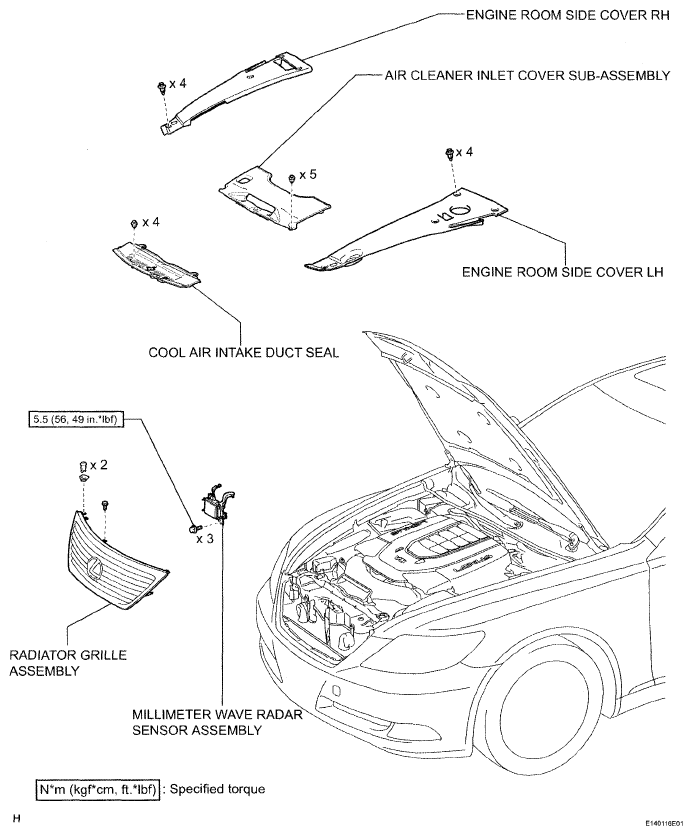

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications

G04951468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
