Home >> Lexus >> 2009 >> LS 460 AWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio/Visual >> Radio Receiver >> Components

Radio Receiver: Components

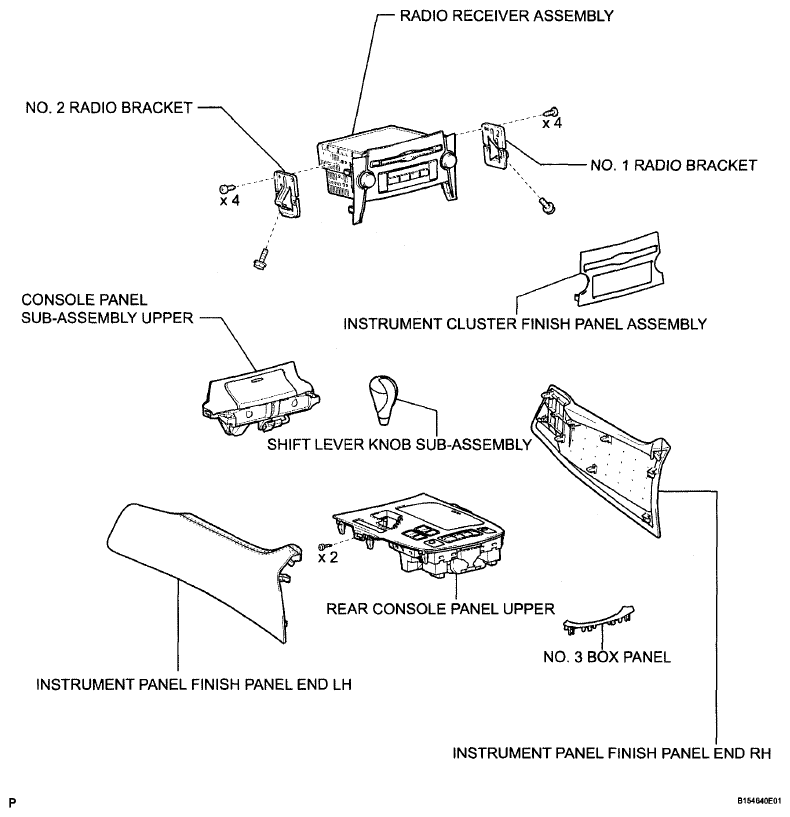

Fig 1: Identifying Radio Receiver Components

G06189541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
