Lexus
>>
2009
>>
LS 460 AWD V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windshield
>>
Service and Repair
>>
Components
Components
WINDSHIELD
/ WINDOWGLASS: WINDSHIELD GLASS: COMPONENTS
COMPONENTS

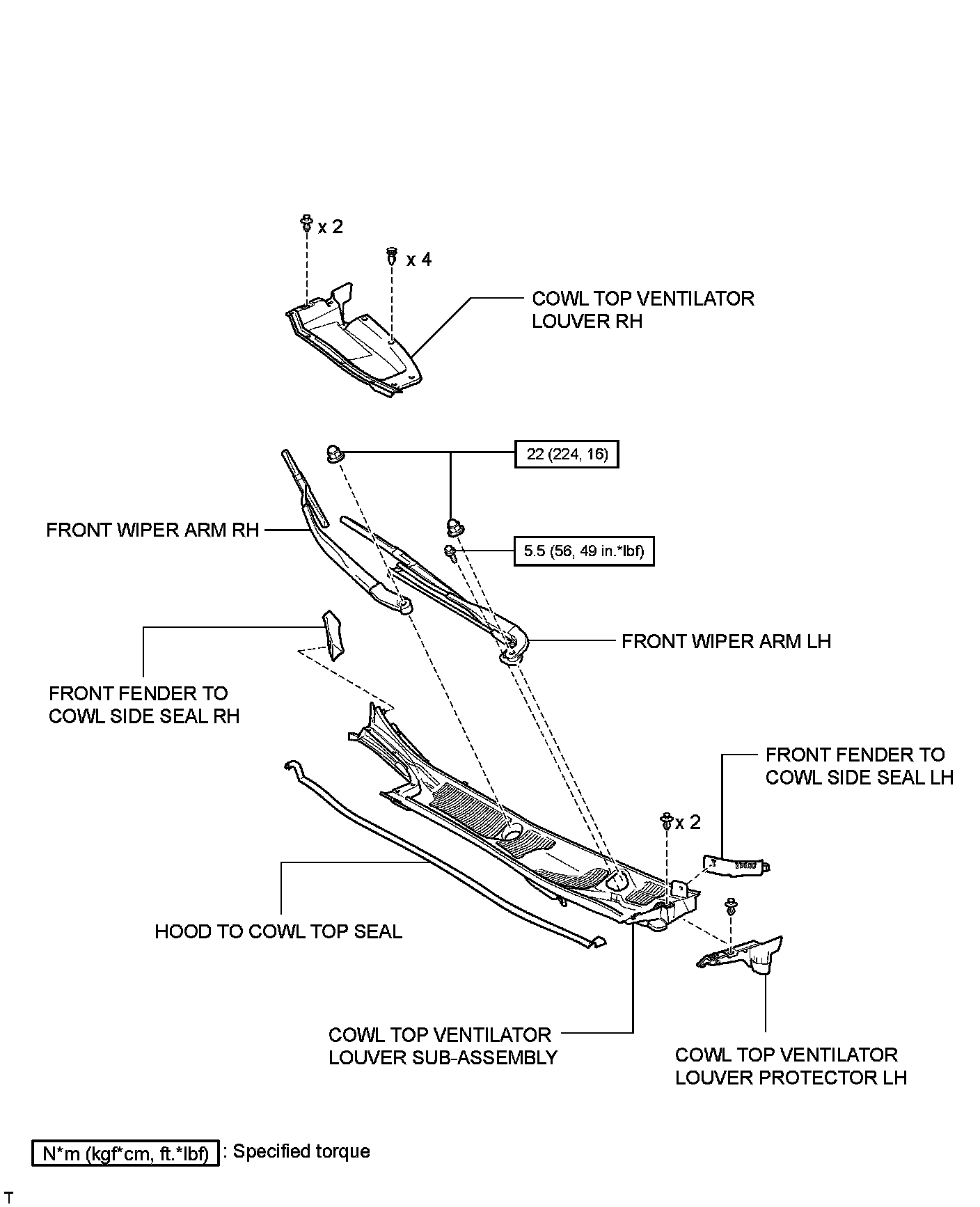

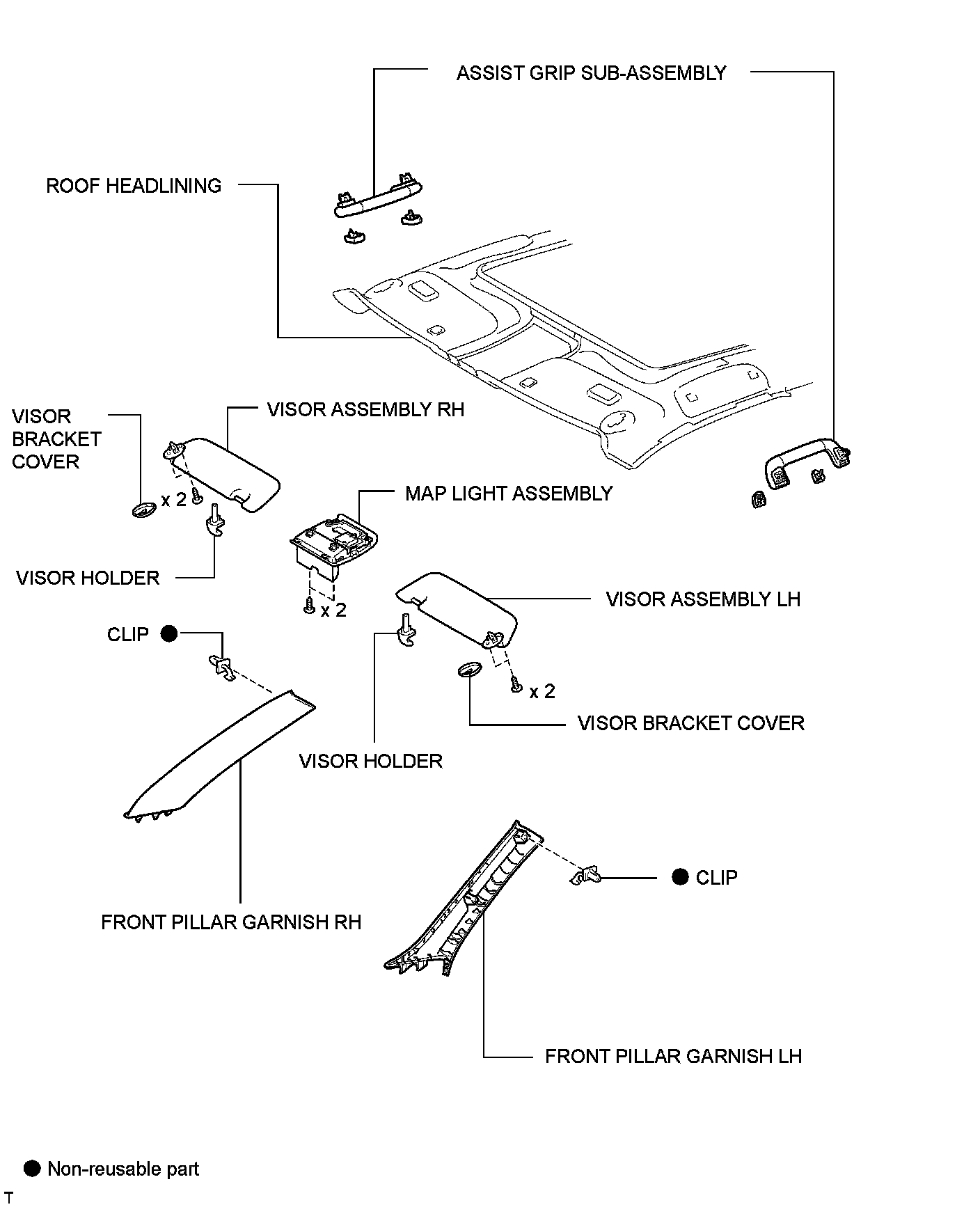

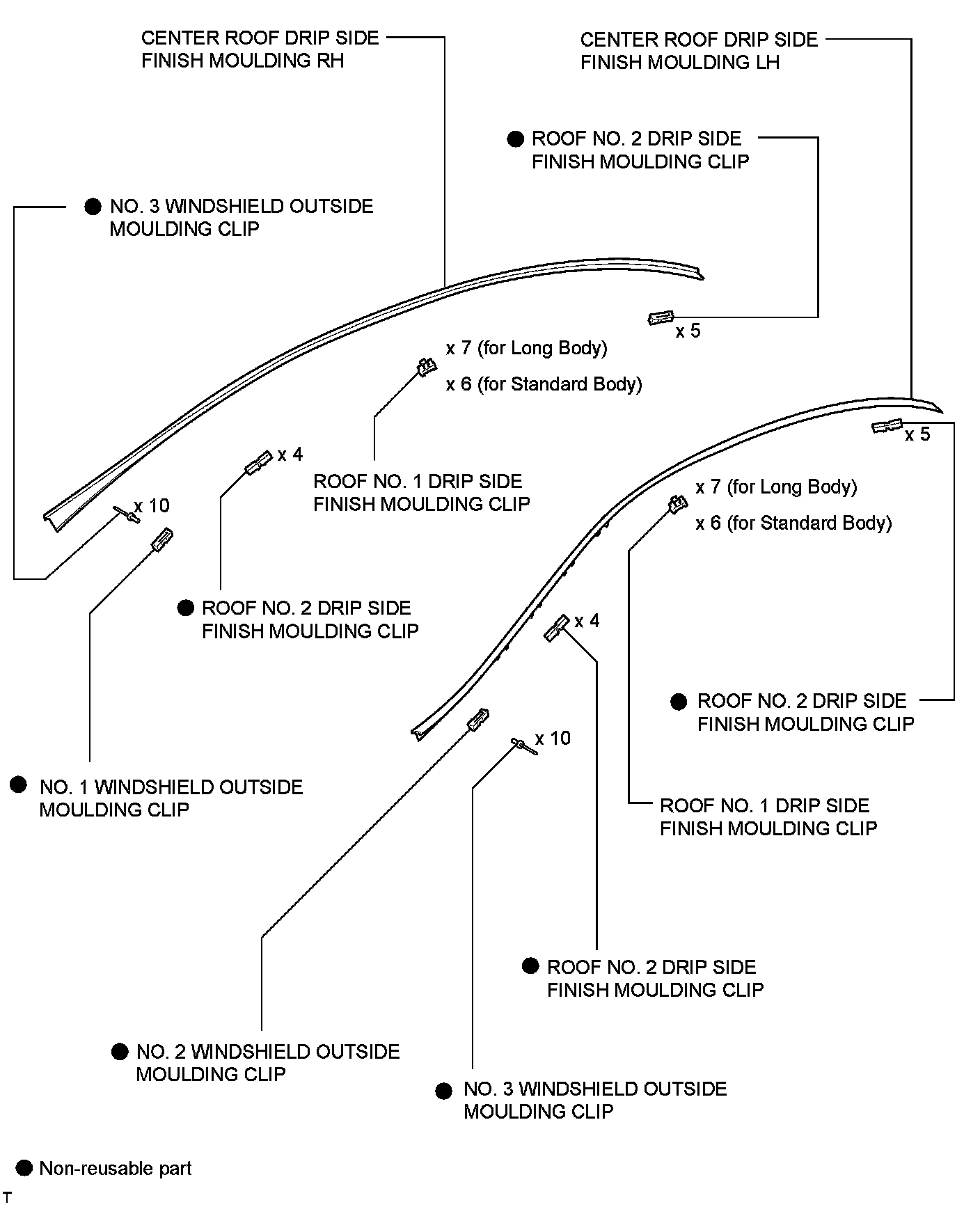

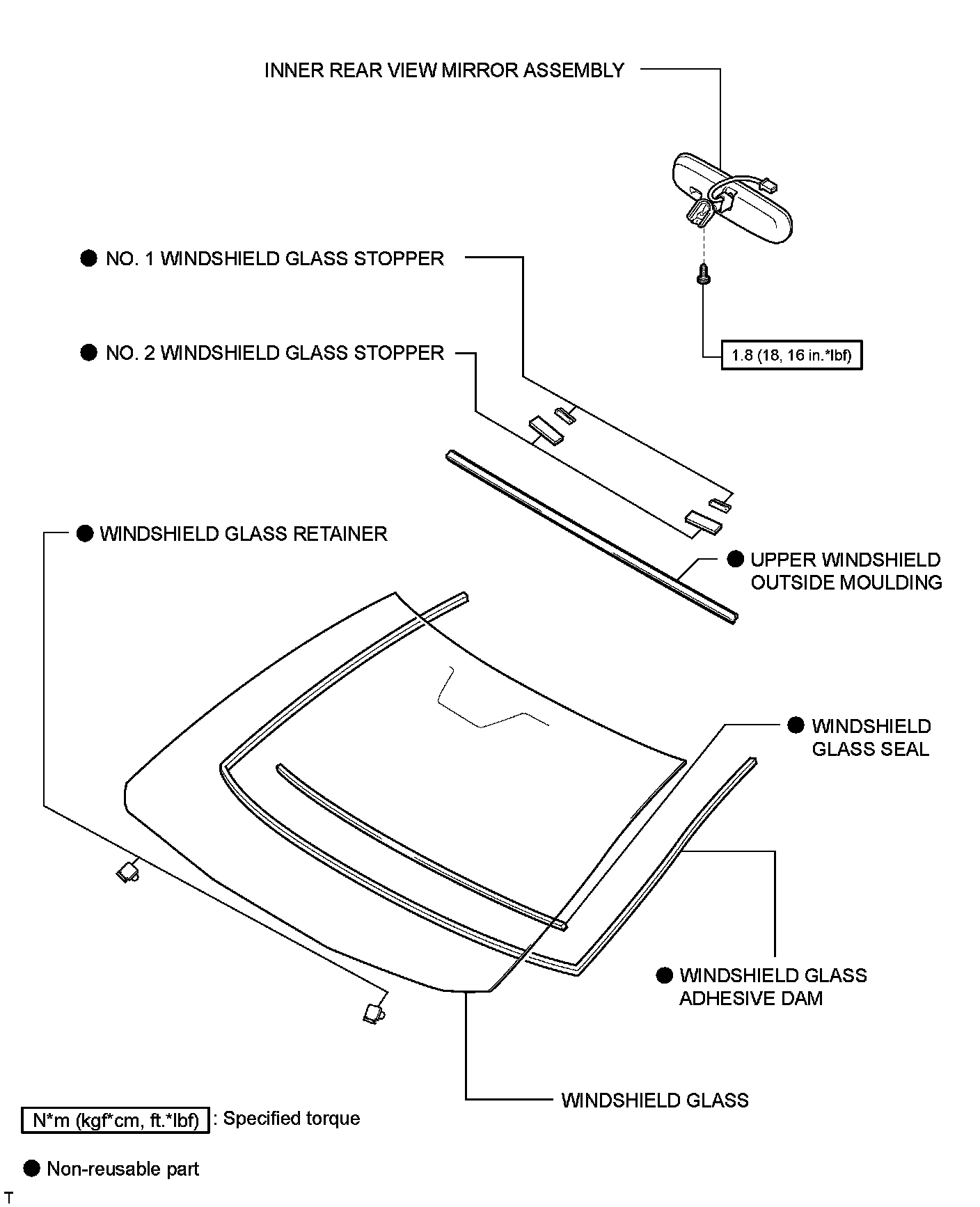

ILLUSTRATION
