AIR CONDITIONING: INFRARED RAY SENSOR: REMOVAL

REMOVAL

1. REMOVE ROOF CONSOLE BOX ASSEMBLY





(a) Detach the 4 claws and remove the spot light lens.





(b) Remove the 2 screws.
(c) Detach the 6 clips and 2 claws.
(d) Disconnect the 2 connectors and remove the roof console box.





2. REMOVE AIR CONDITIONING INFRARED RAYS SENSOR

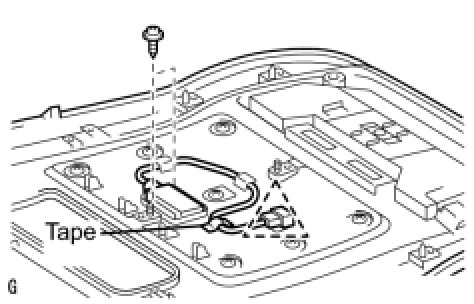

(a) Remove the tape.
(b) Remove the 2 screws.
(c) Detach the clamp and remove the sensor.
