Navigation Module: Locations

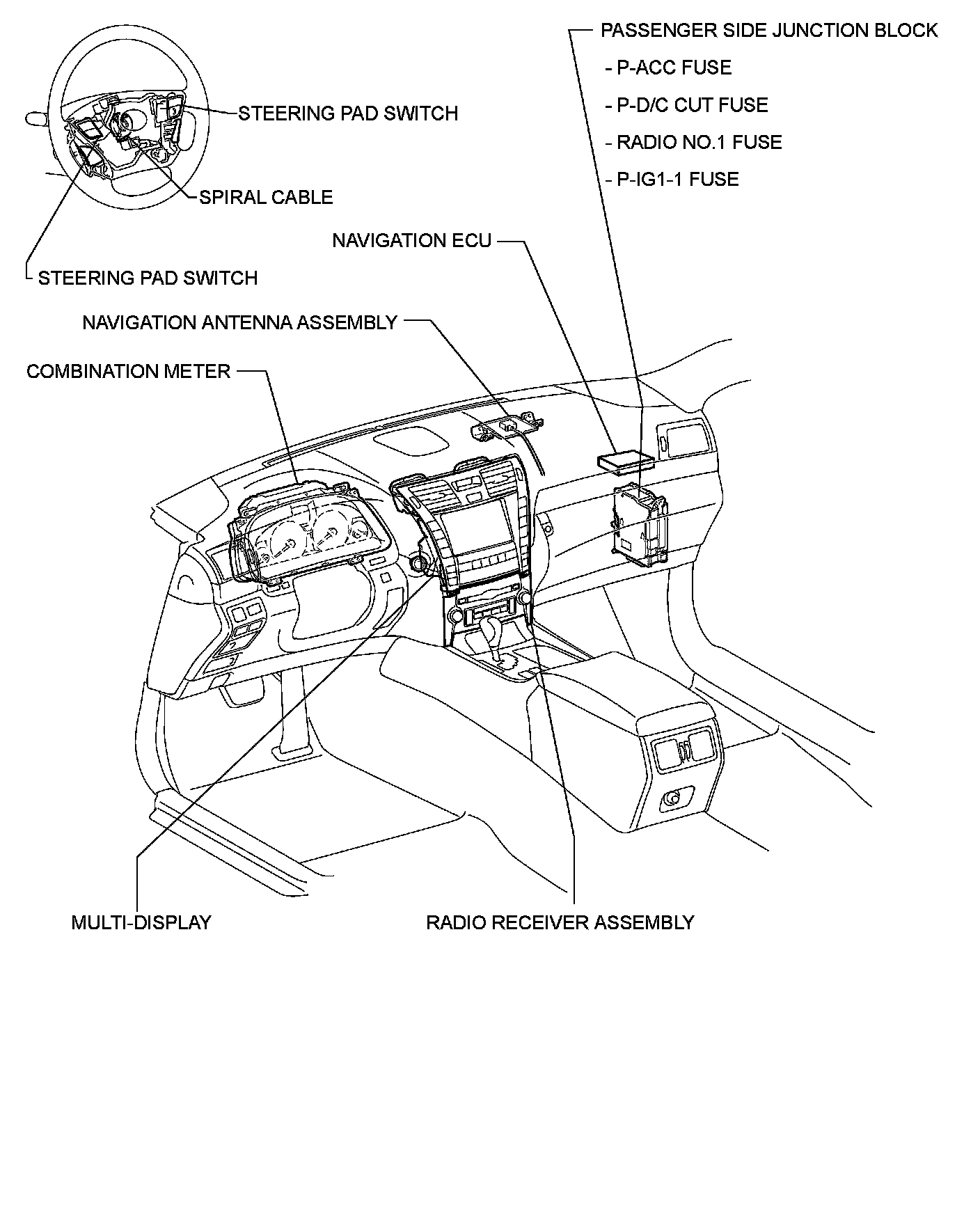

NAVIGATION: NAVIGATION SYSTEM (for DVD): PARTS LOCATION
PARTS LOCATION
ILLUSTRATION

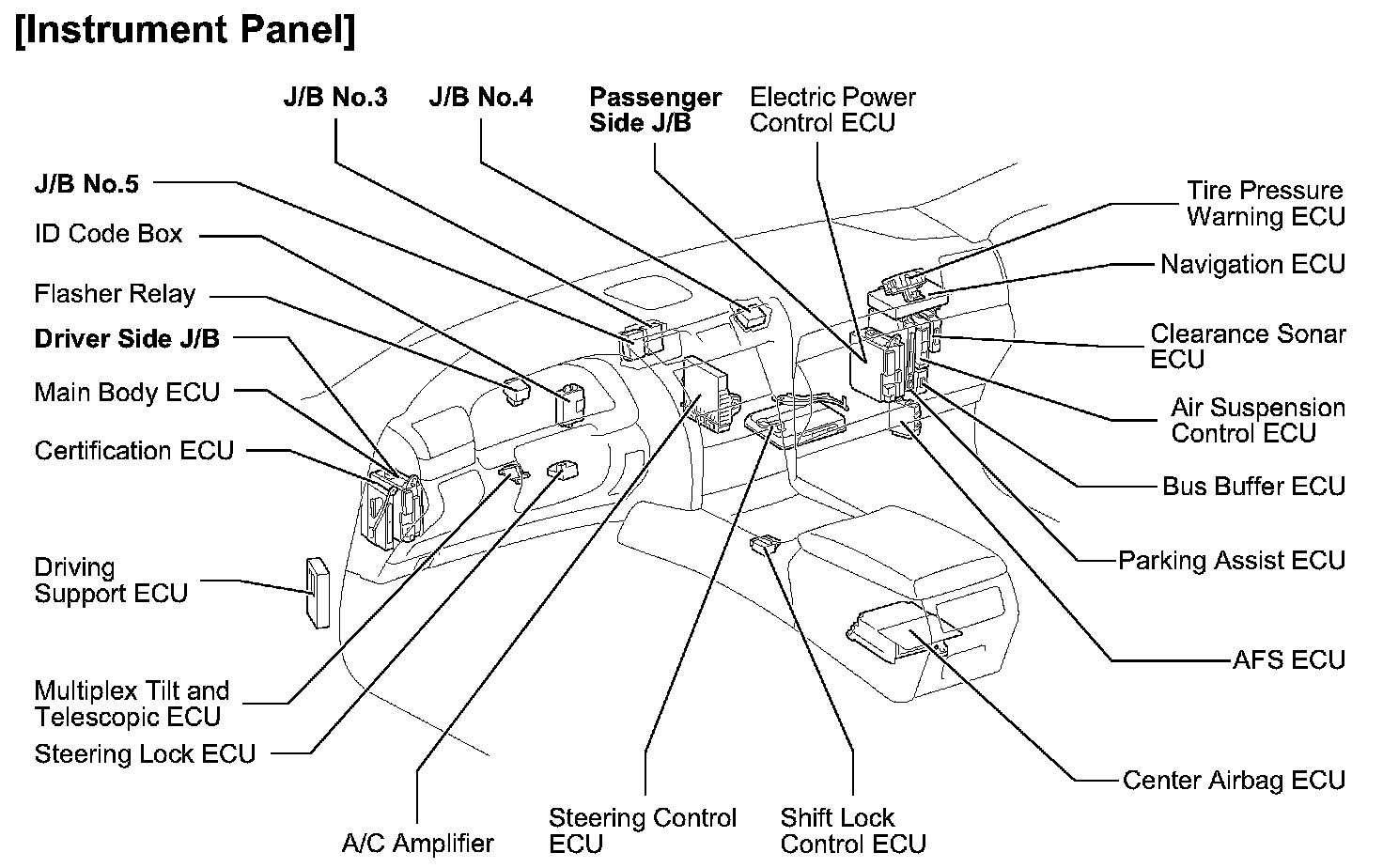

Instrument Panel:
