Home >> Lexus >> 2009 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Torque Specifications

Torque Specifications








SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

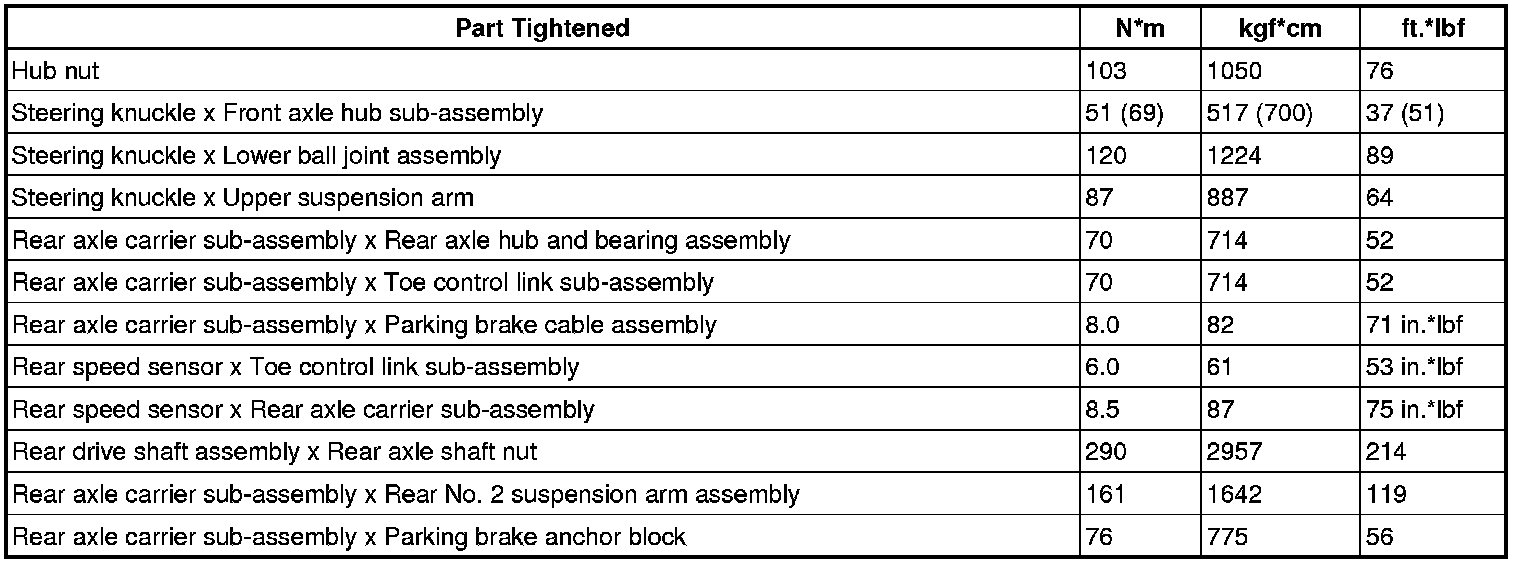

Axle





(): For use without SST

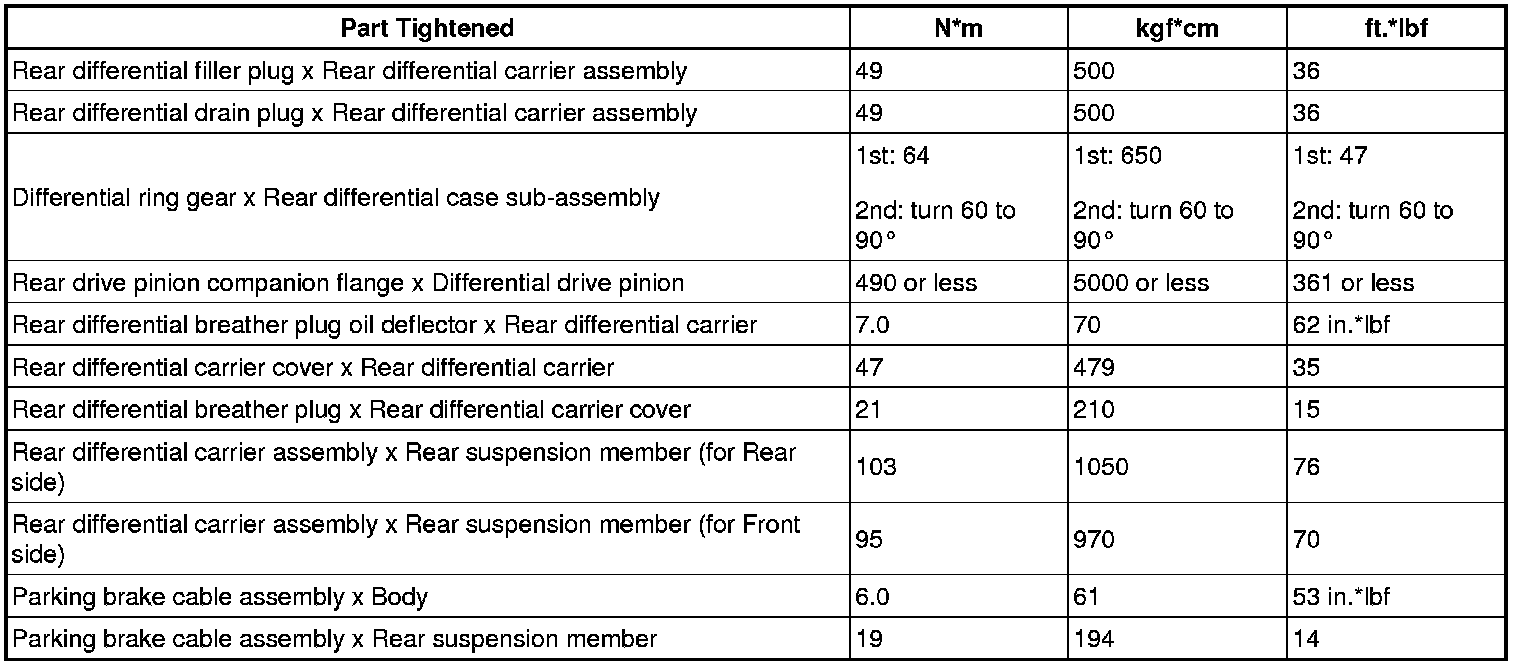

Differential
