Service Data








SERVICE SPECIFICATIONS: DIFFERENTIAL: SERVICE DATA

SERVICE DATA

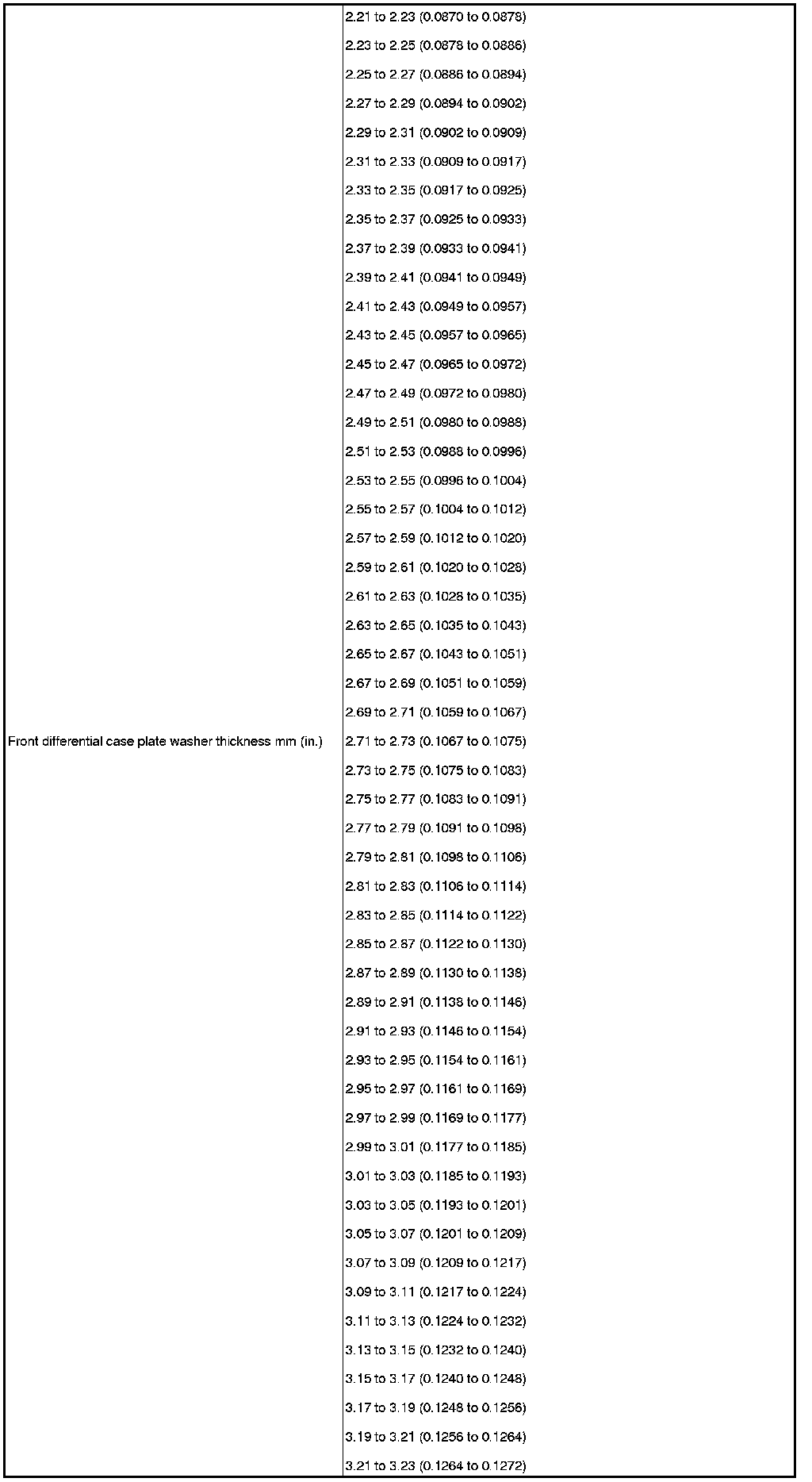

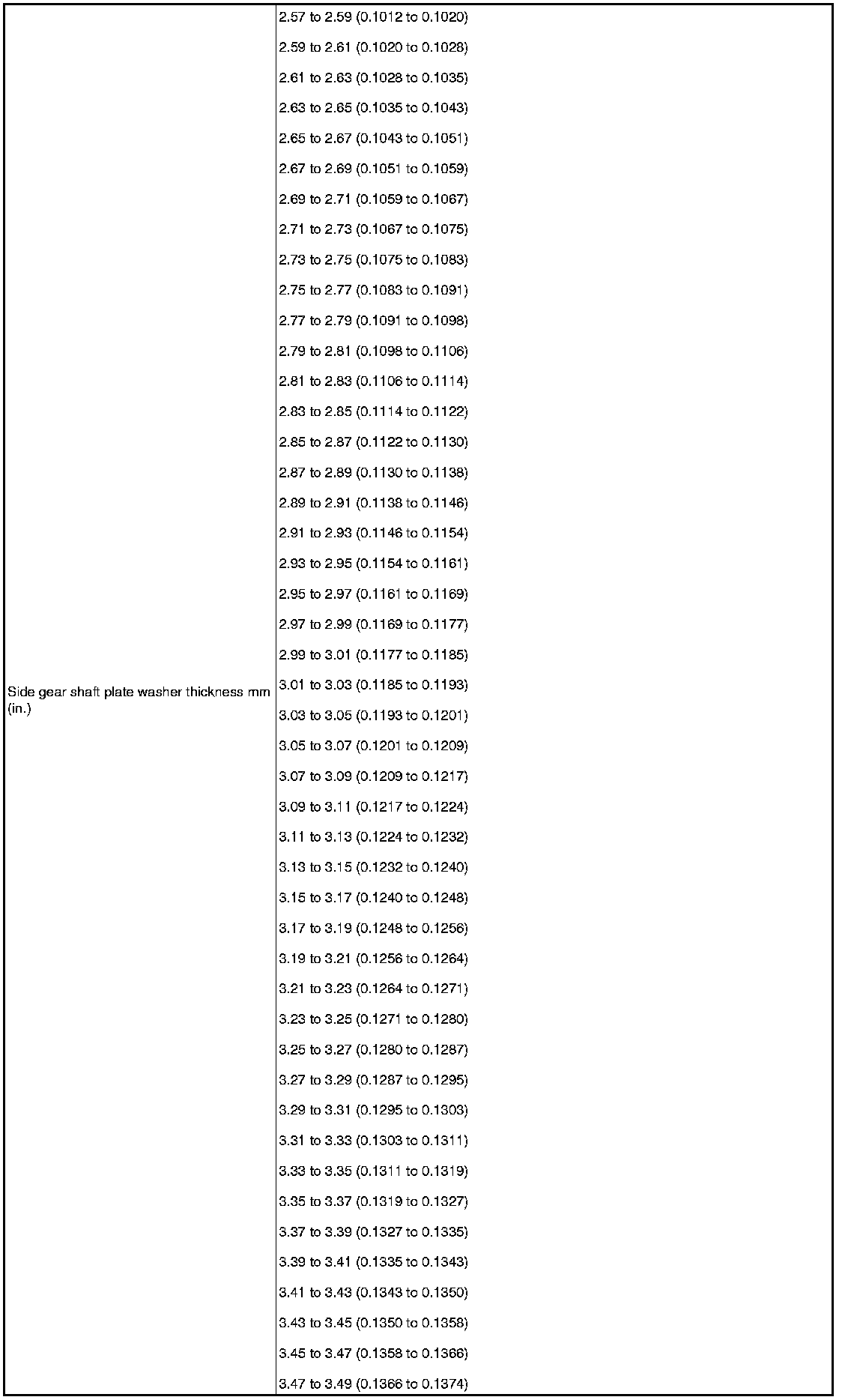

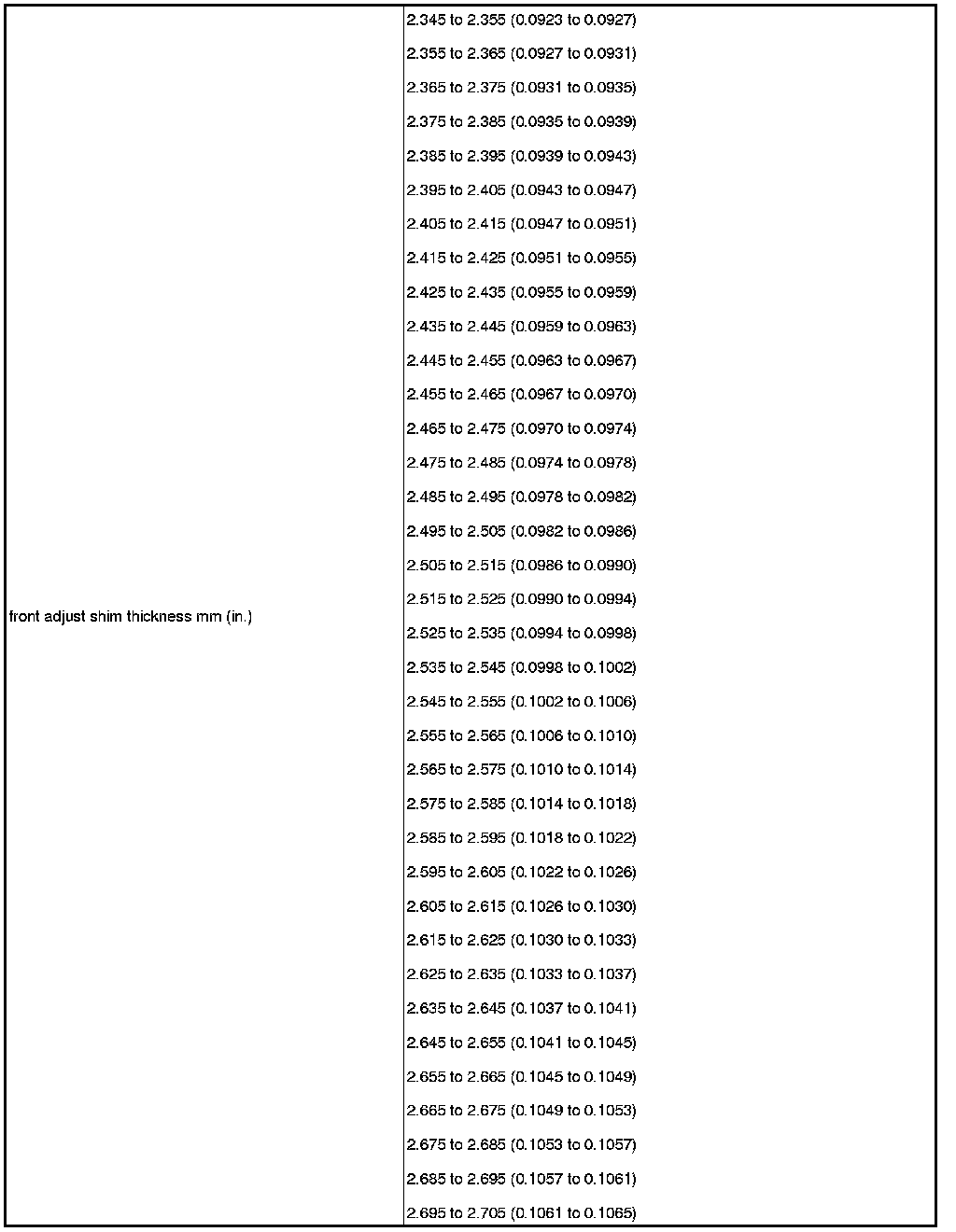

FRONT DIFFERENTIAL CARRIER ASSEMBLY (for 4WD)

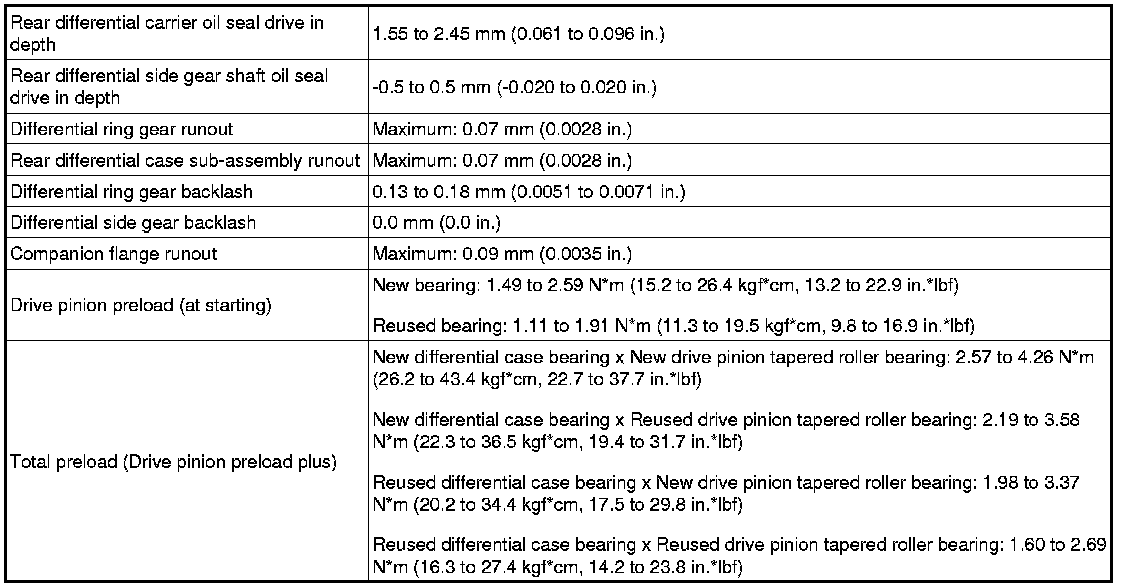

REAR DIFFERENTIAL CARRIER ASSEMBLY (for 2GR-FSE)













REAR DIFFERENTIAL CARRIER ASSEMBLY (for 4GR-FSE)
