Removal

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal
2. REMOVE FRONT BUMPER ASSEMBLY Removal
3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
(a) Disconnect the sensor connector.

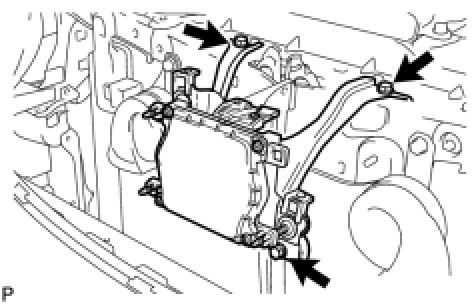

(b) Remove the 3 bolts and millimeter radar sensor assembly.
