Torque Specifications

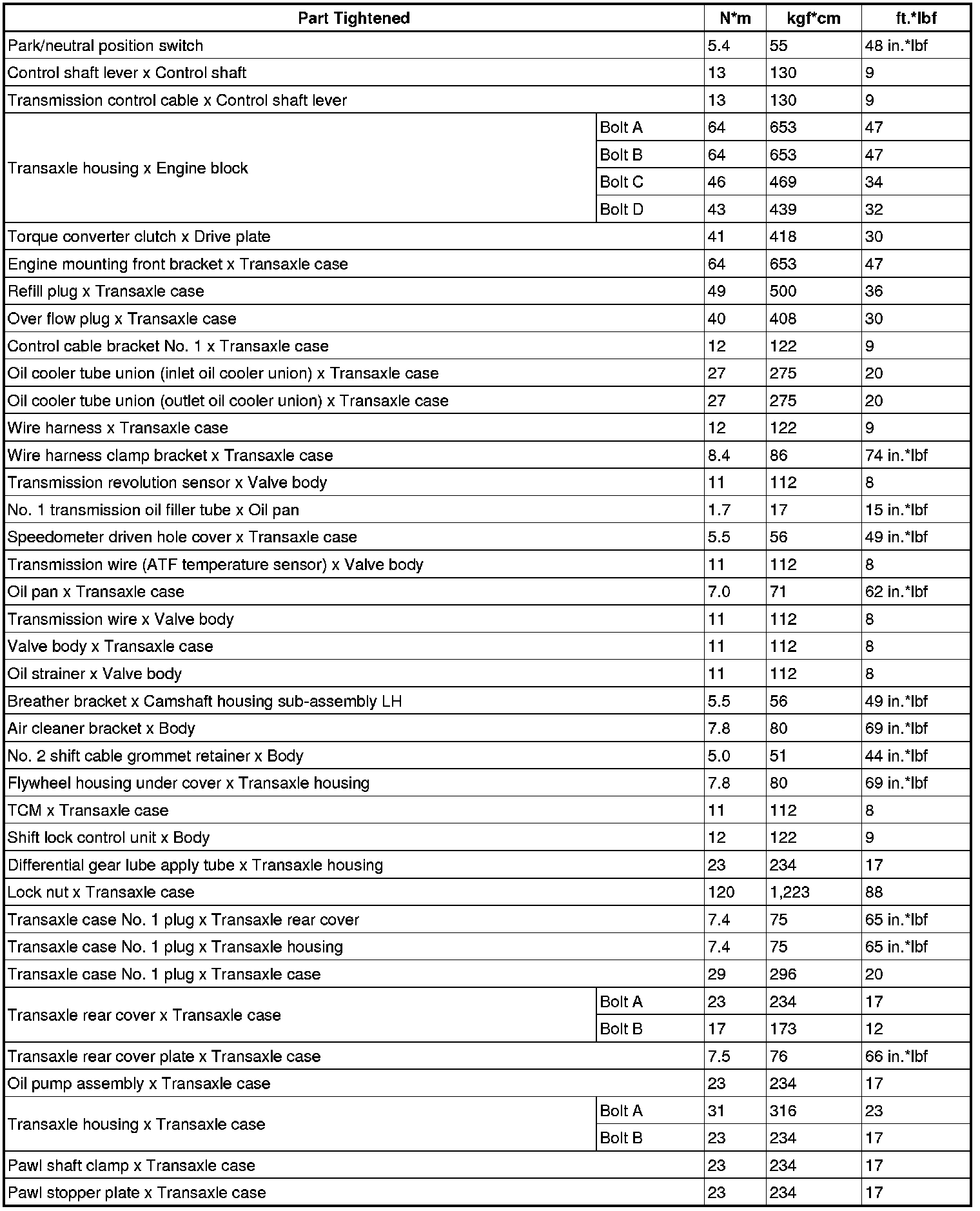

SERVICE SPECIFICATIONS: U660E AUTOMATIC TRANSAXLE: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS









Drive plate & ring gear sub-assembly x Crankshaft 83 Nm (850 kgf-cm, 61 ft lb)
Tighten the 8 mounting bolts uniformly in several steps
