Relay Box

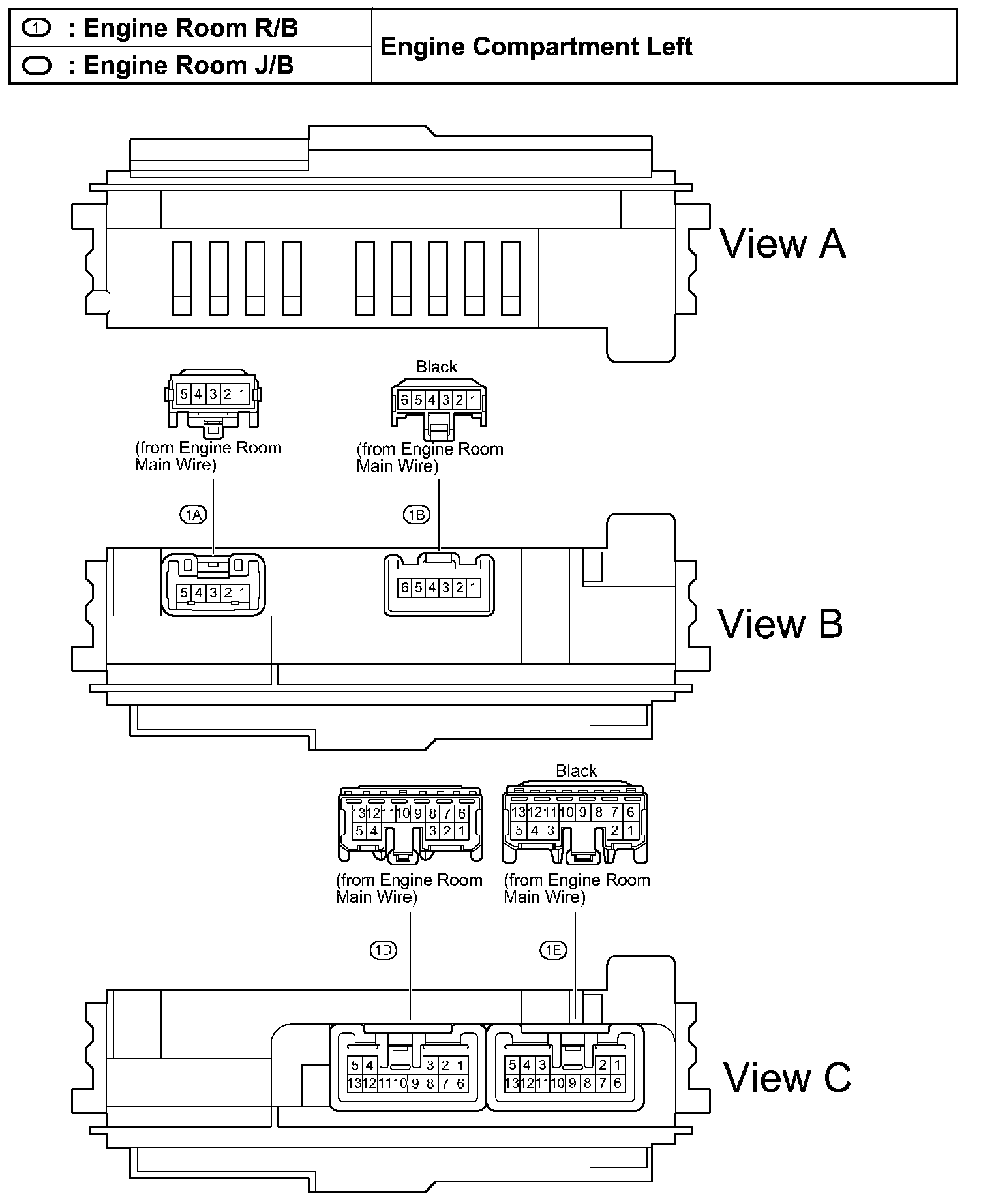

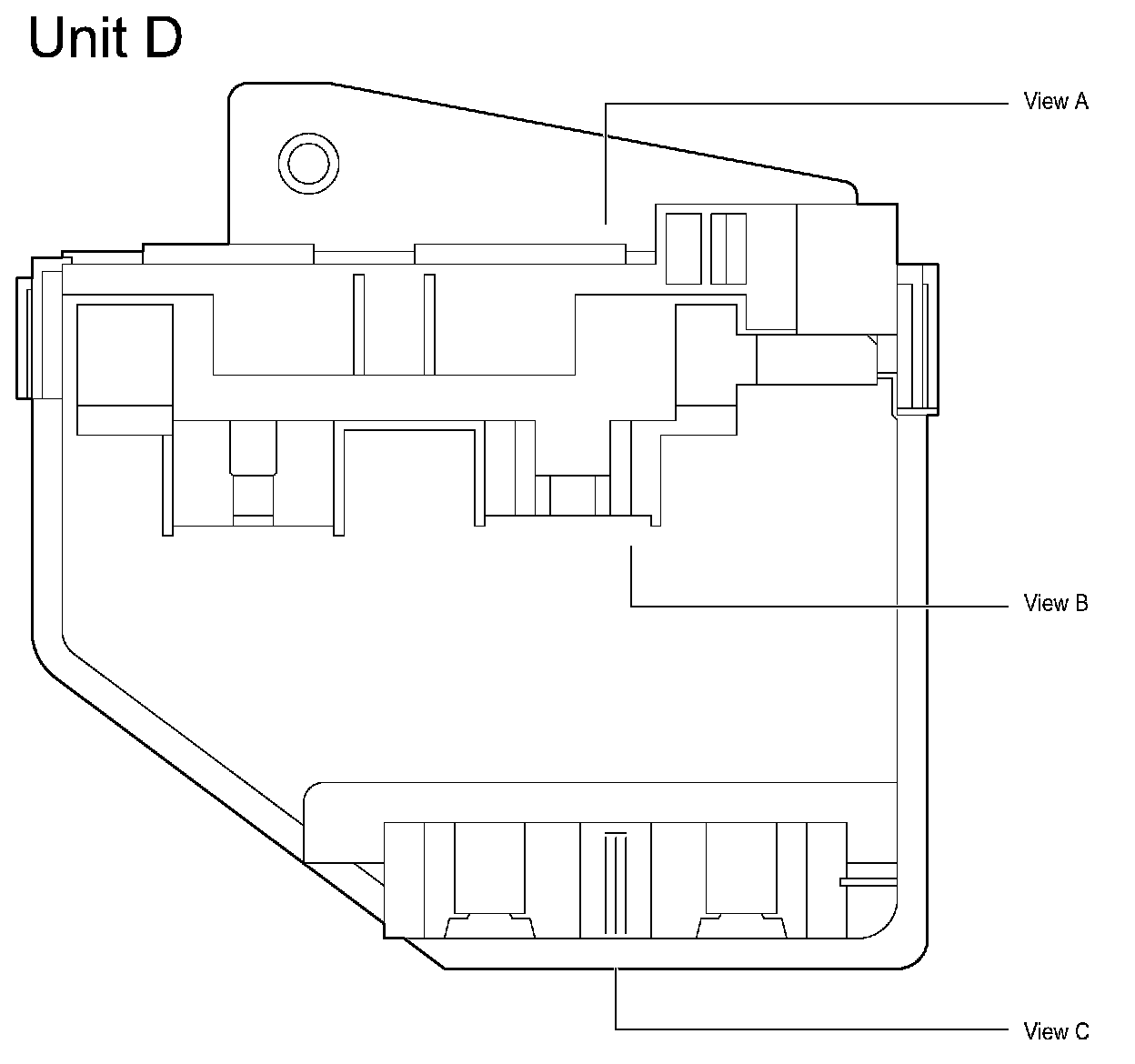

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

Engine Room R/B, J/B - Engine Compartment Left:

Instrument Panel J/B - Lower Finish Panel:

Instrument Panel J/B - Lower Finish Panel:

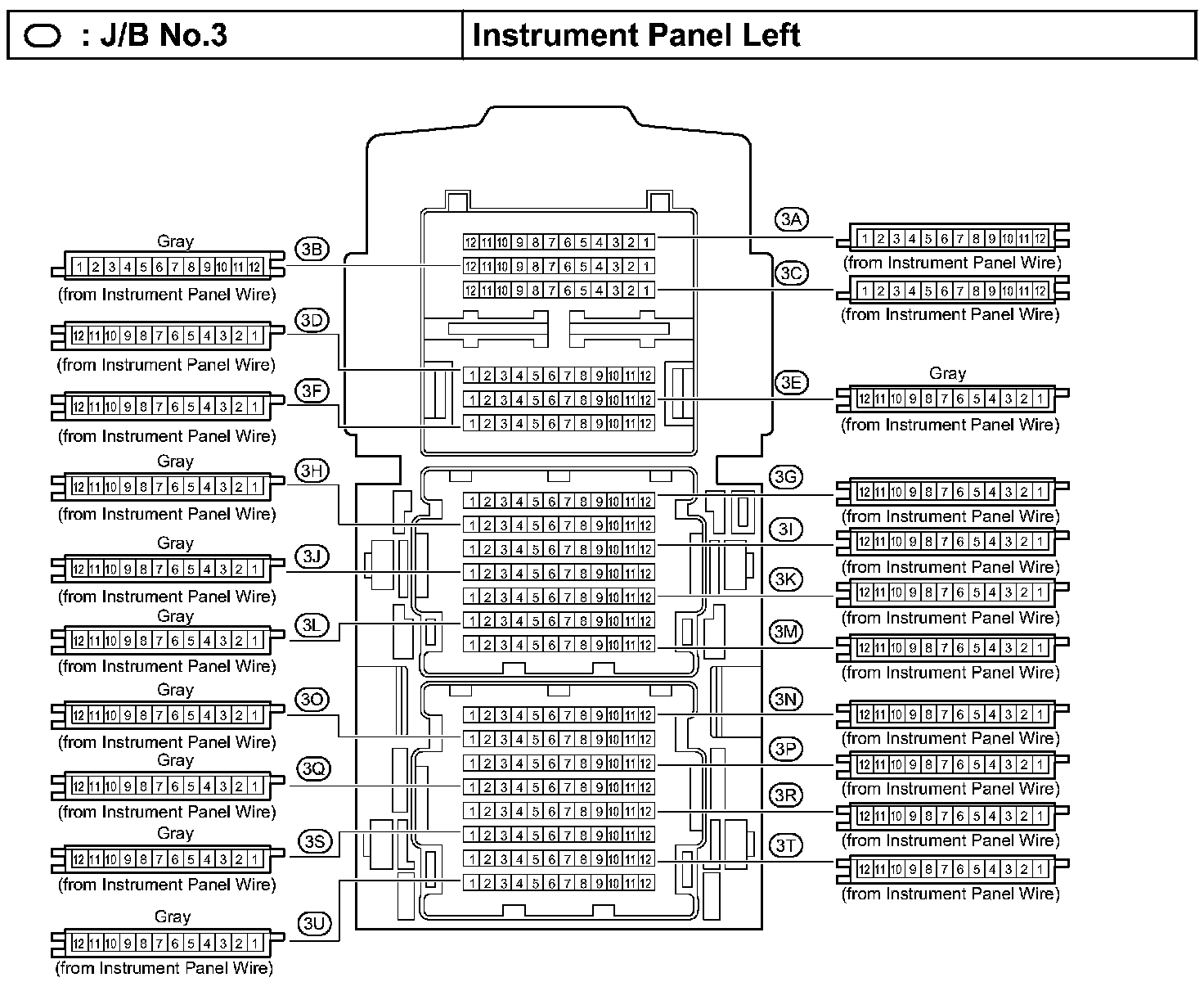

J/B No.3 - Instrument Panel Left:

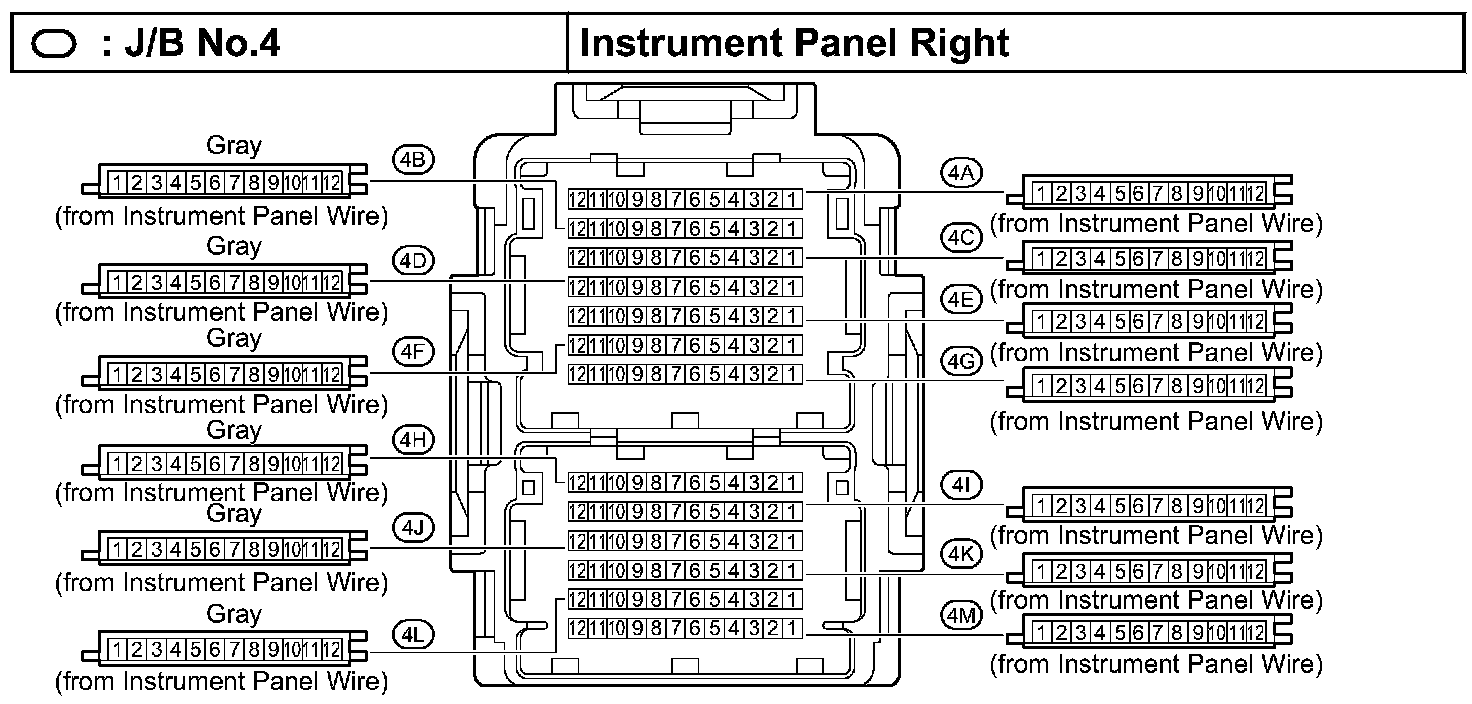

J/B No.4 - Instrument Panel Right:

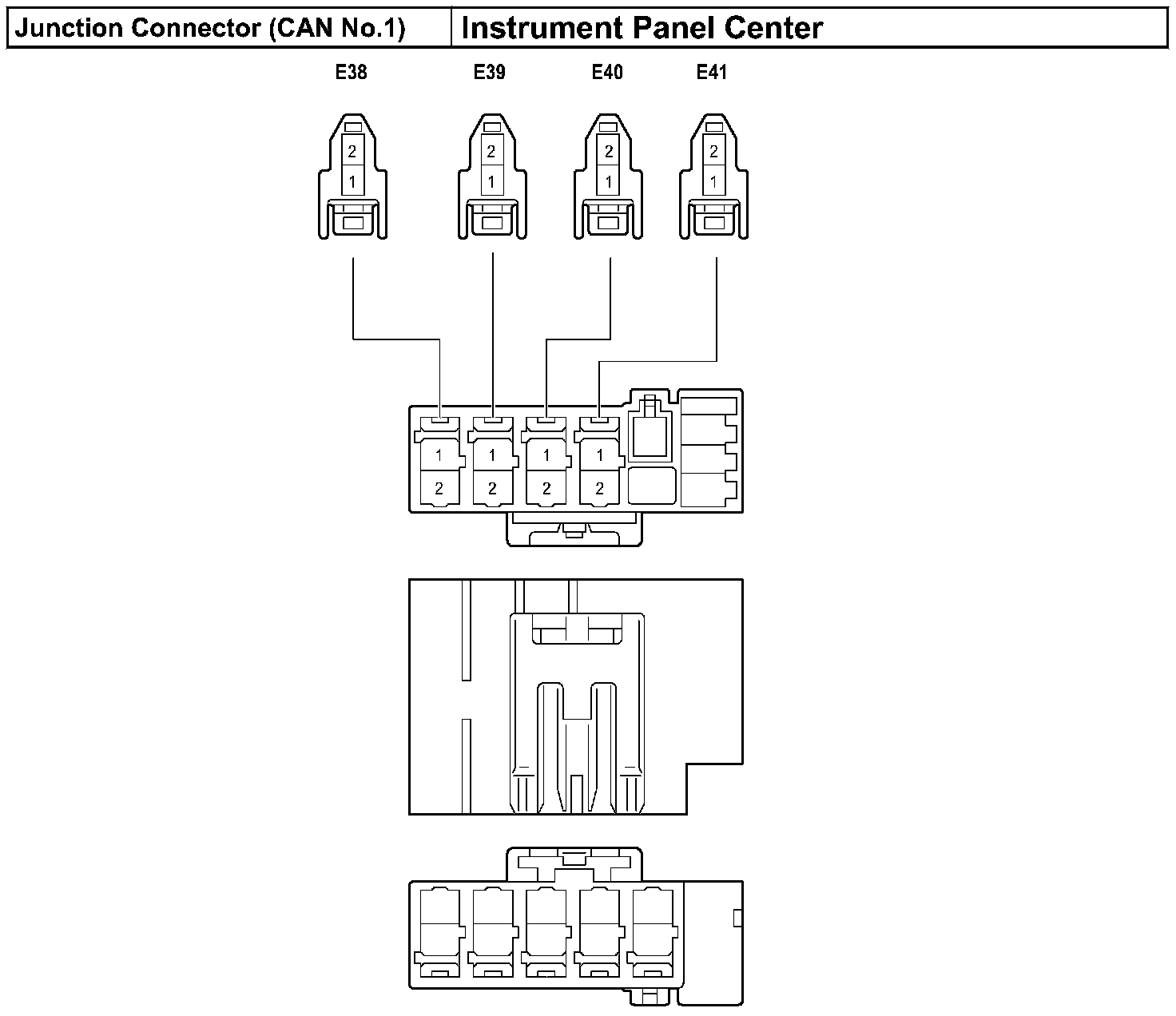

Junction Connector (CAN No.1) - Instrument Panel Center:

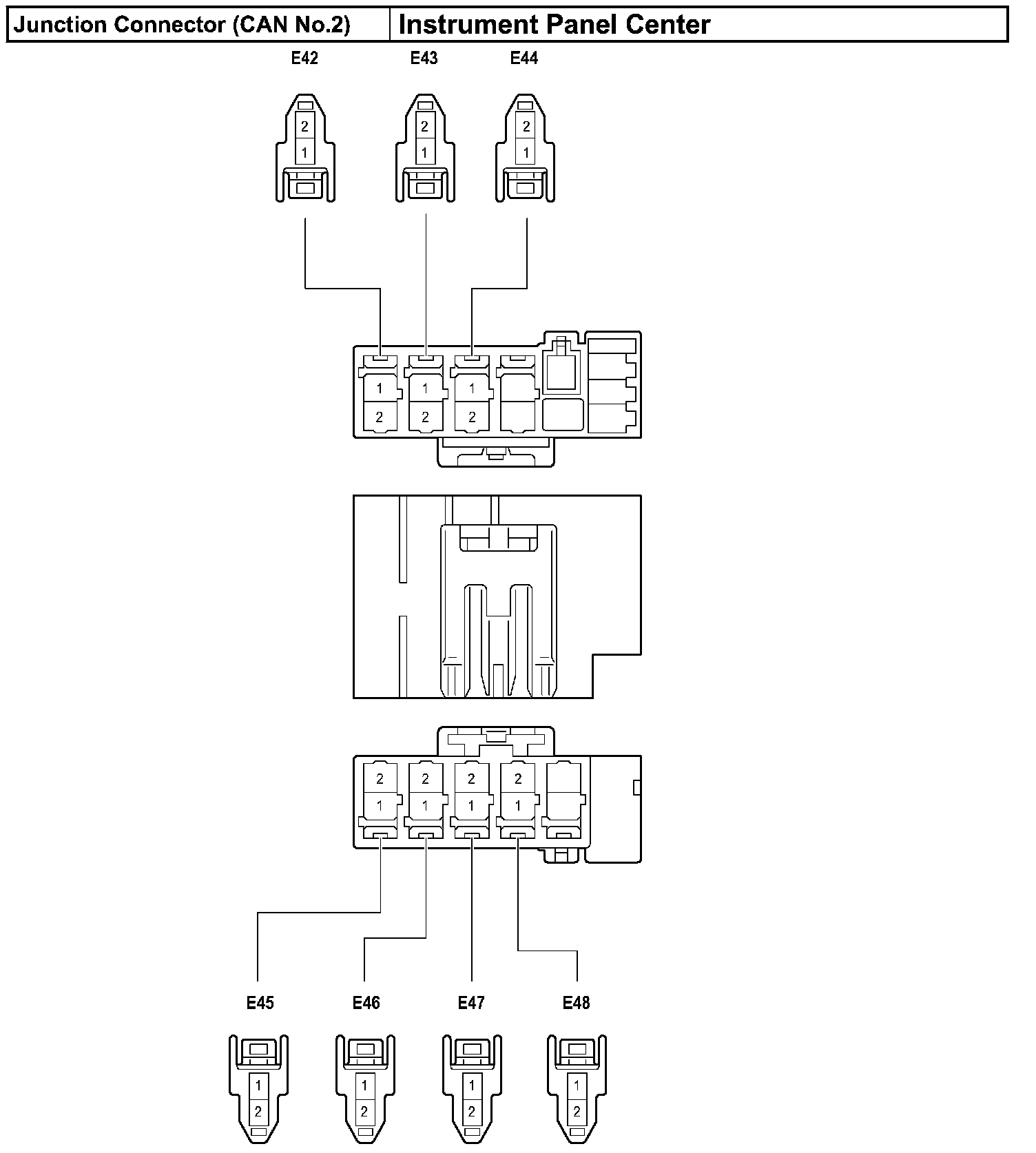

Junction Connector (CAN No.2) - Instrument Panel Center:

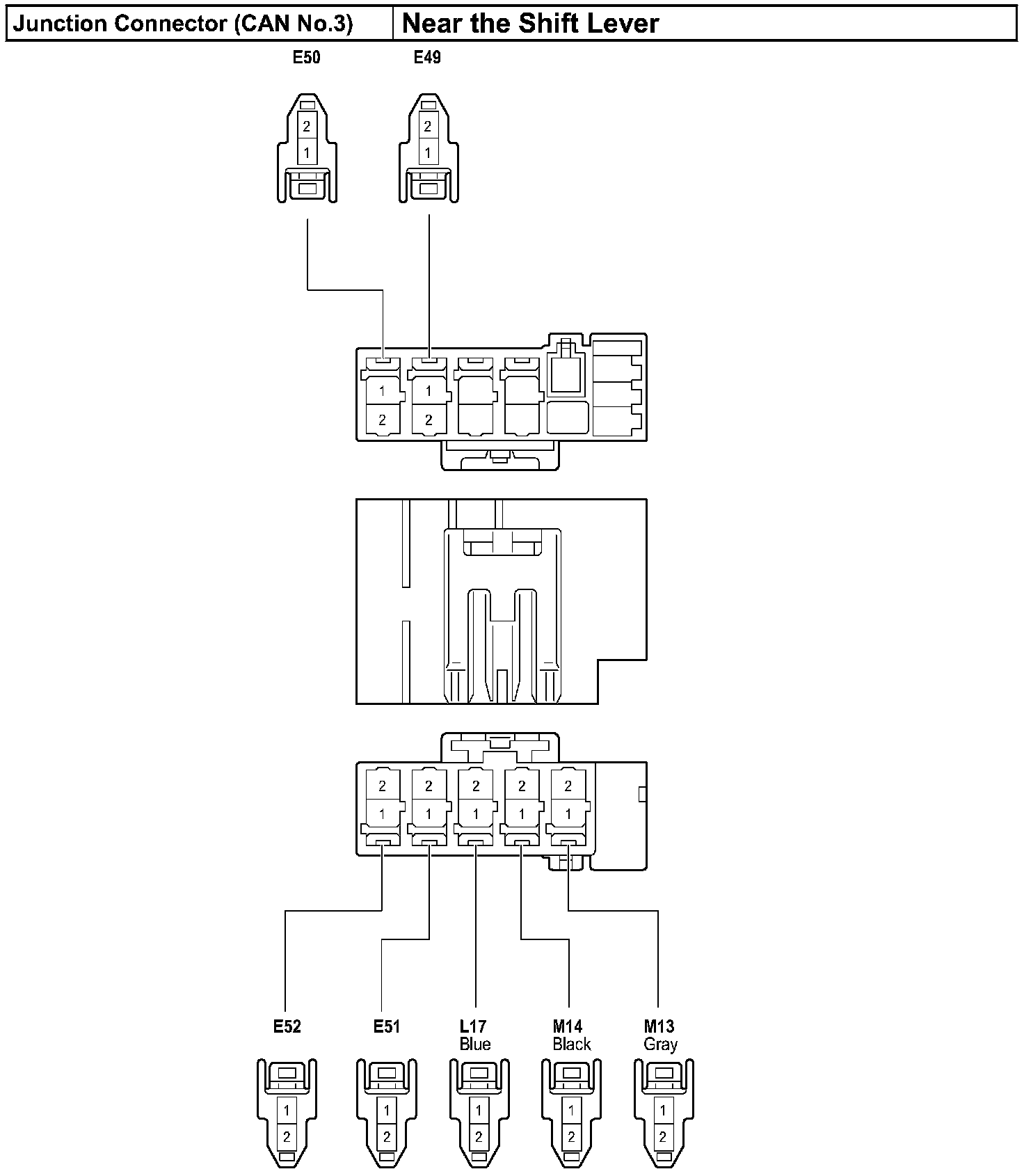

Junction Connector (CAN No.3) - Near The Shift Lever:

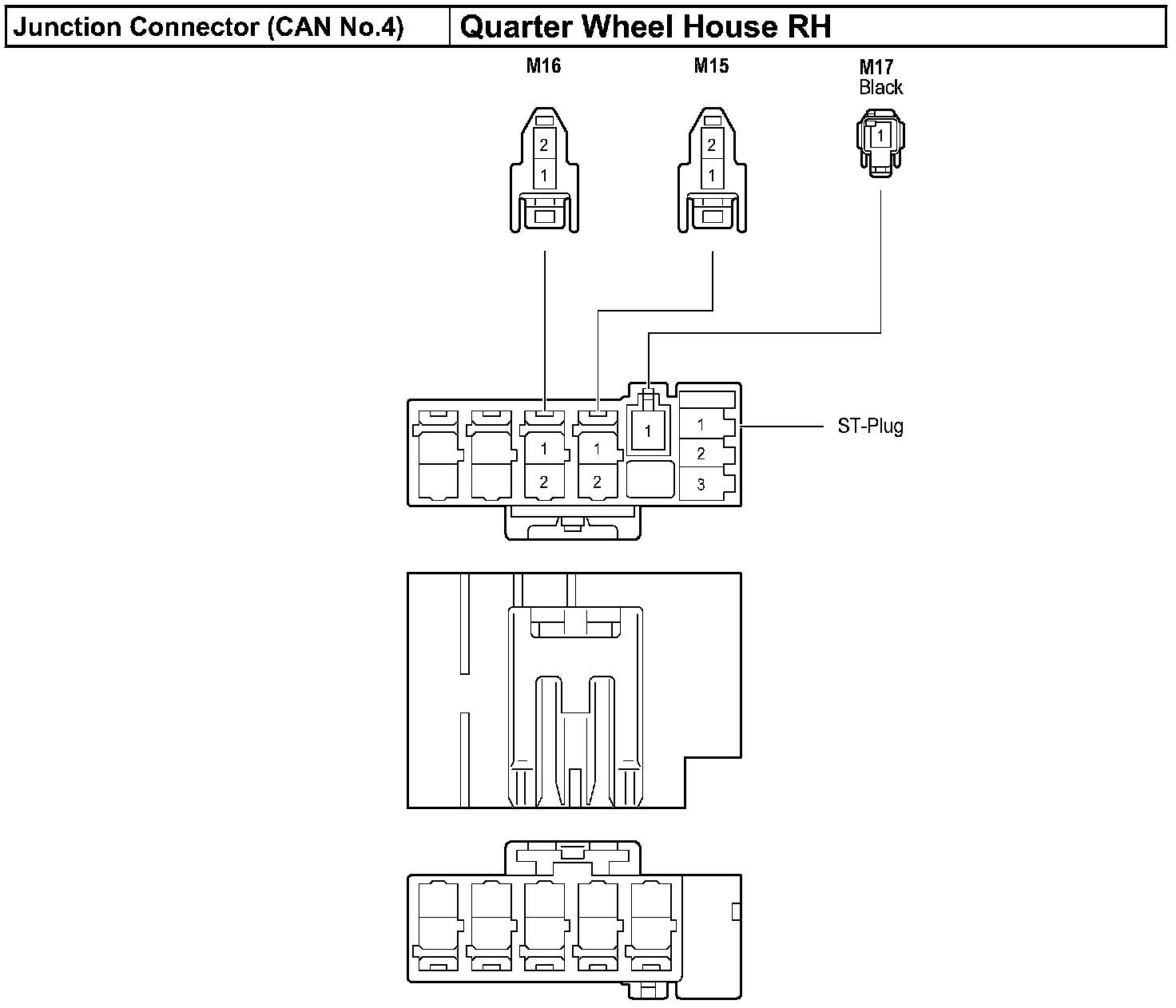

Junction Connector (CAN No.4) - Quarter Wheel House RH:
