Removal

CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment Service Precautions.

2. REMOVE COOL AIR INTAKE DUCT SEAL Removal
3. REMOVE FRONT BUMPER ASSEMBLY Removal
4. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
(a) Disconnect the connector.

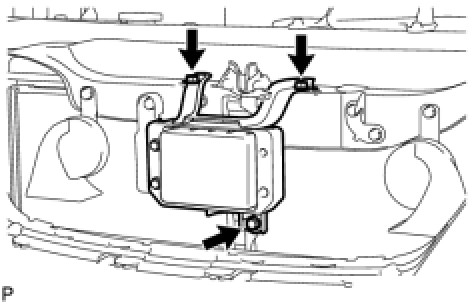

(b) Remove the 3 bolts and the millimeter wave radar sensor assembly.
