DTC P0617: Starter Relay Circuit High: Wiring Diagram

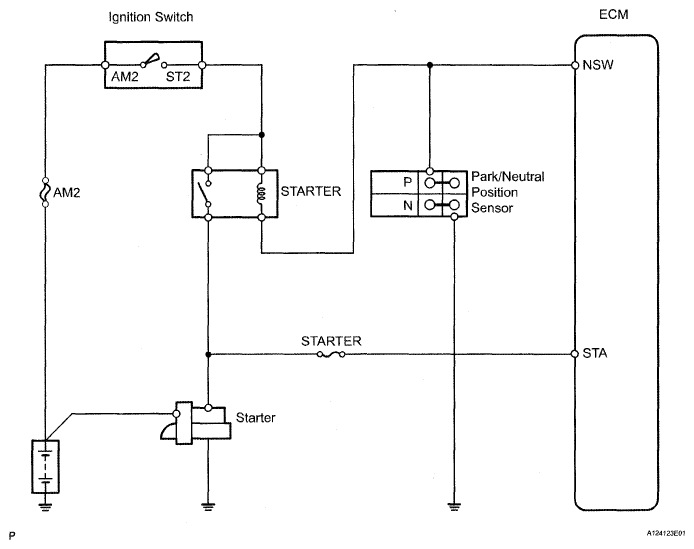

Fig 1: Starter Relay Circuit High - Wiring Diagram

G05291470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
