Wheel Speed Sensor
Wheel Speed Sensor

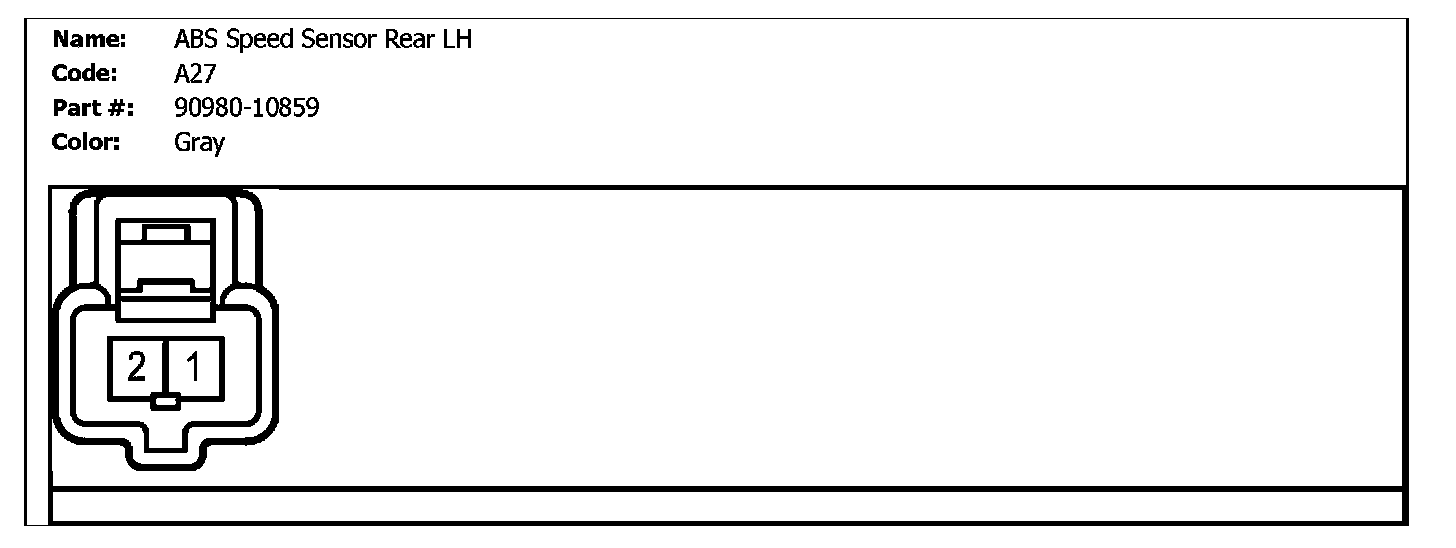

A27 (ABS Speed Sensor Rear LH):

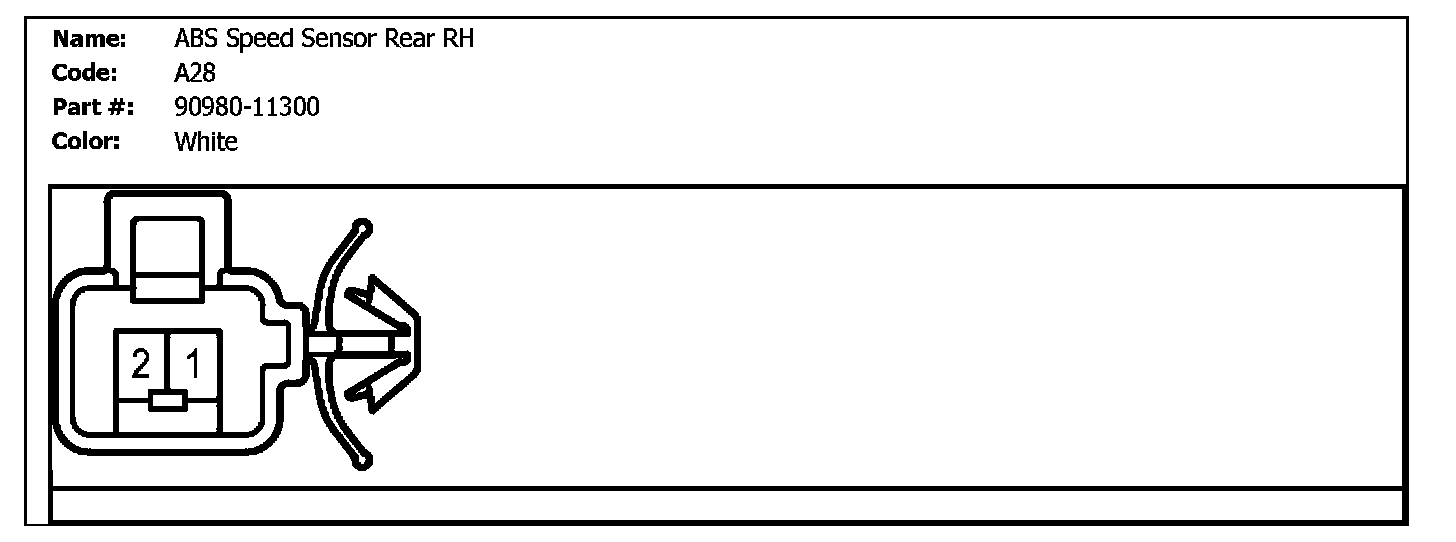

A28 (ABS Speed Sensor Rear RH):

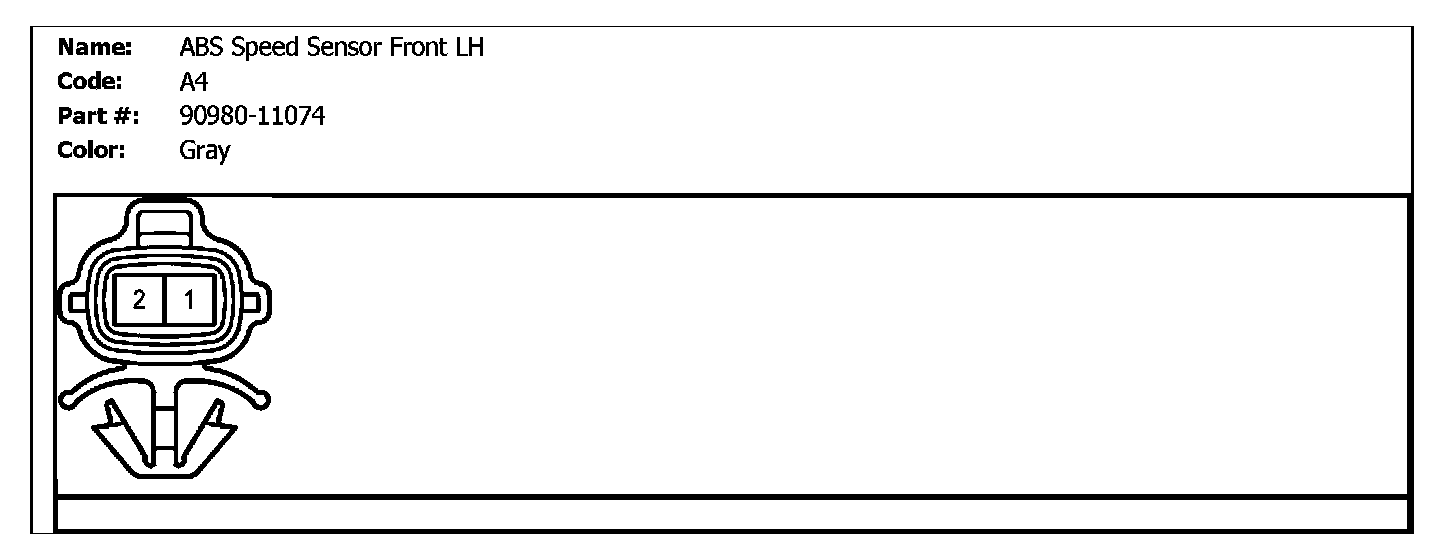

A4 (ABS Speed Sensor Front LH):

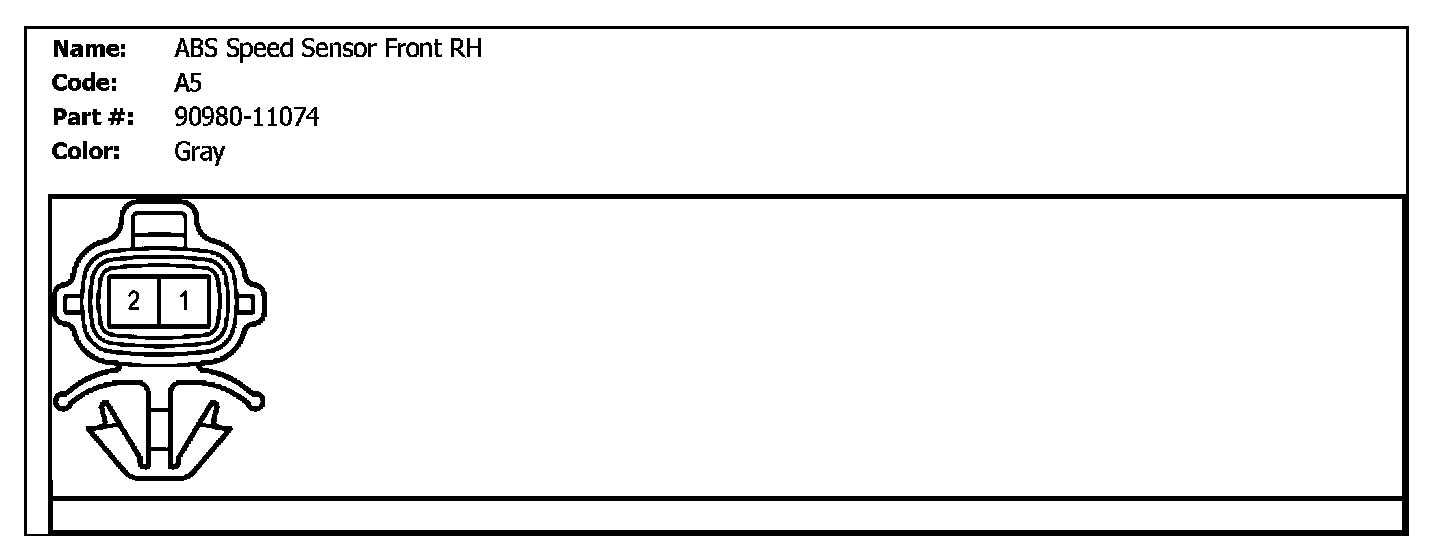

A5 (ABS Speed Sensor Front RH):
