System Diagram

  1. SECONDARY AIR INJECTION CONTROL SYSTEM DIAGRAM

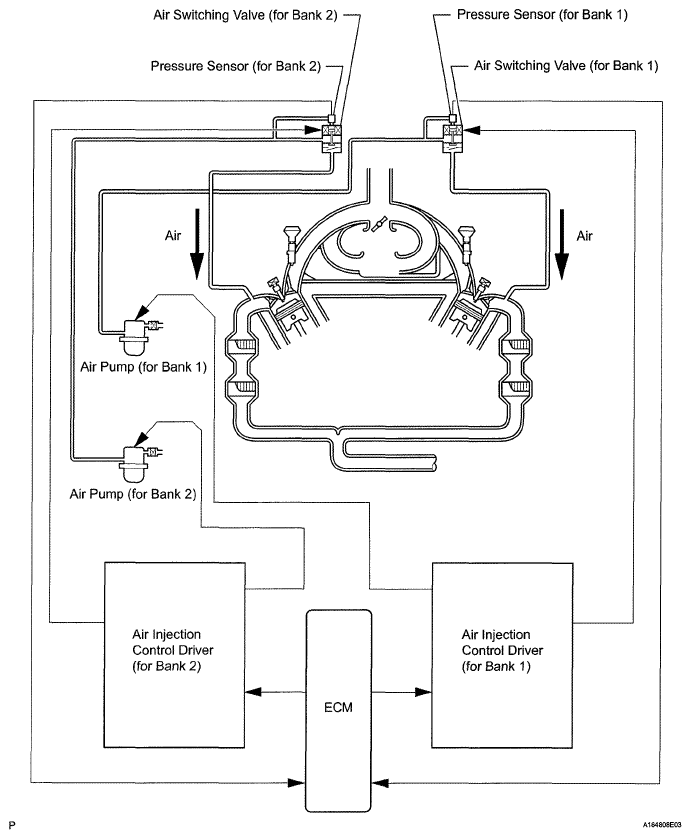

    Fig 1: Secondary Air Injection Control System Diagram
    G05759653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SECONDARY AIR INJECTION SYSTEM WIRING DIAGRAM

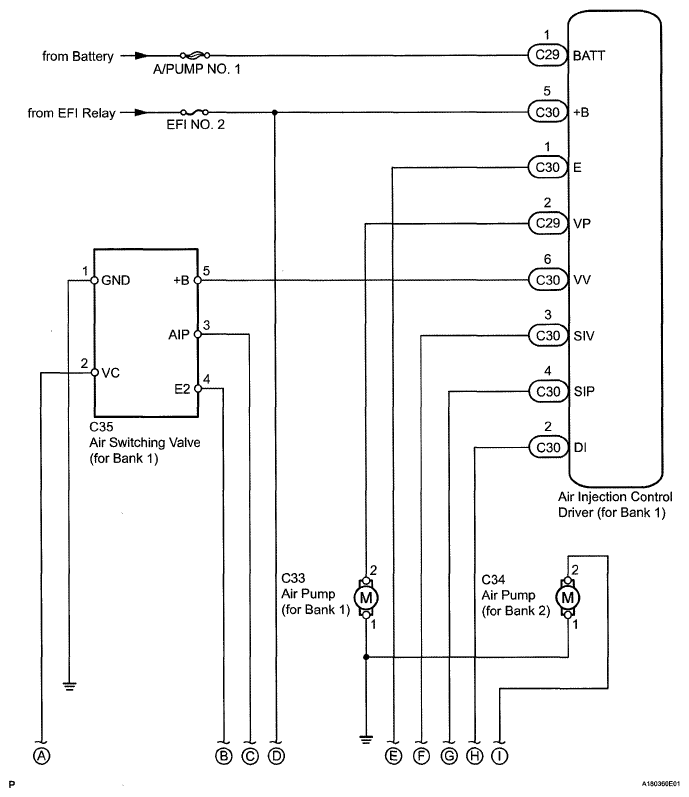

    Fig 2: Secondary Air Injection System - Wiring Diagram (1 Of 2)
    G05637889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Secondary Air Injection System - Wiring Diagram (2 Of 2)
    G05637890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. EVAP CONTROL SYSTEM DIAGRAM
    Fig 4: EVAP Control System Diagram
    G05637891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. EVAP SYSTEM WIRING DIAGRAM

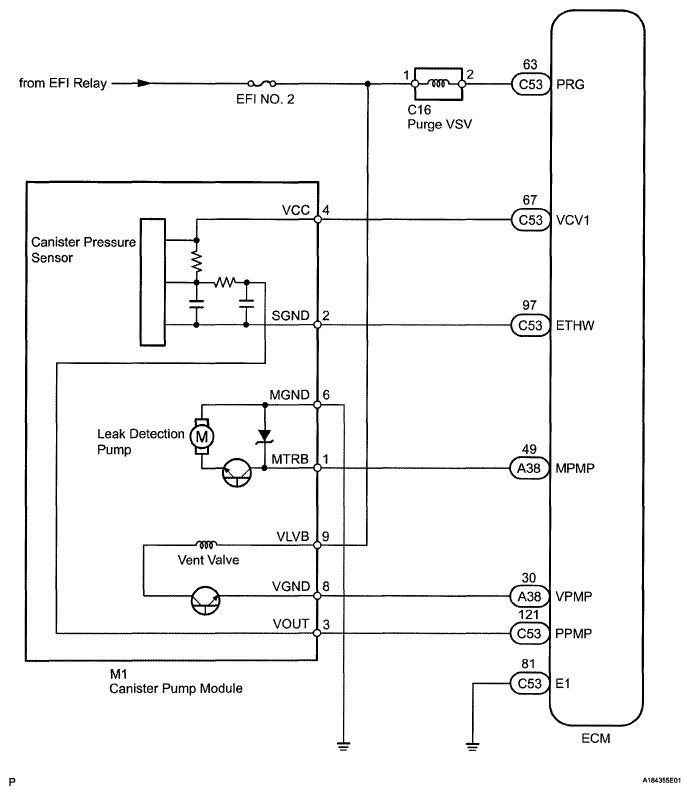

    Fig 5: EVAP System - Wiring Diagram
    G05637892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
