Air Injection Driver: Components

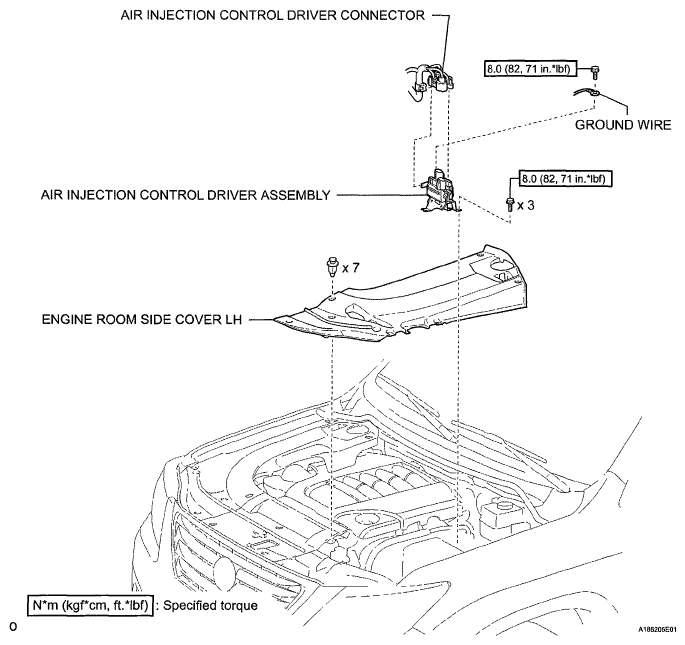

Fig 1: Air Injection Driver Replacement Components With Torque Specifications (1 Of 2)
G05759712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

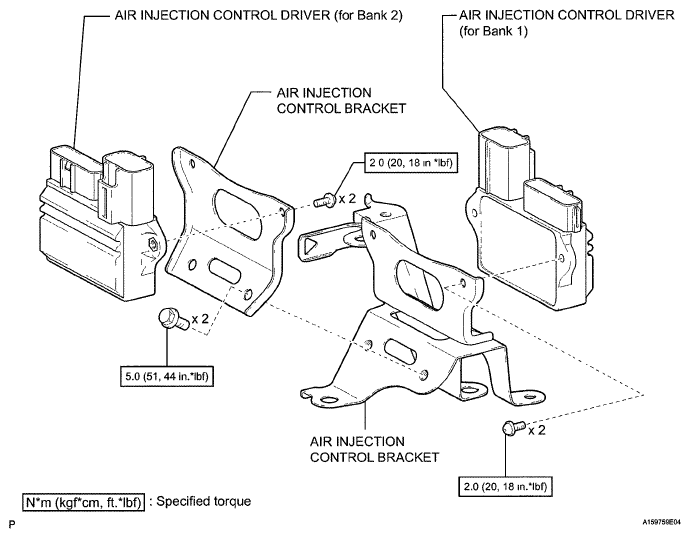

Fig 2: Air Injection Driver Replacement Components With Torque Specifications (2 Of 2)
G05759713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
