Home >> Lexus >> 2008 >> LX 570 >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual >> Radio Receiver >> Components

Radio Receiver: Components

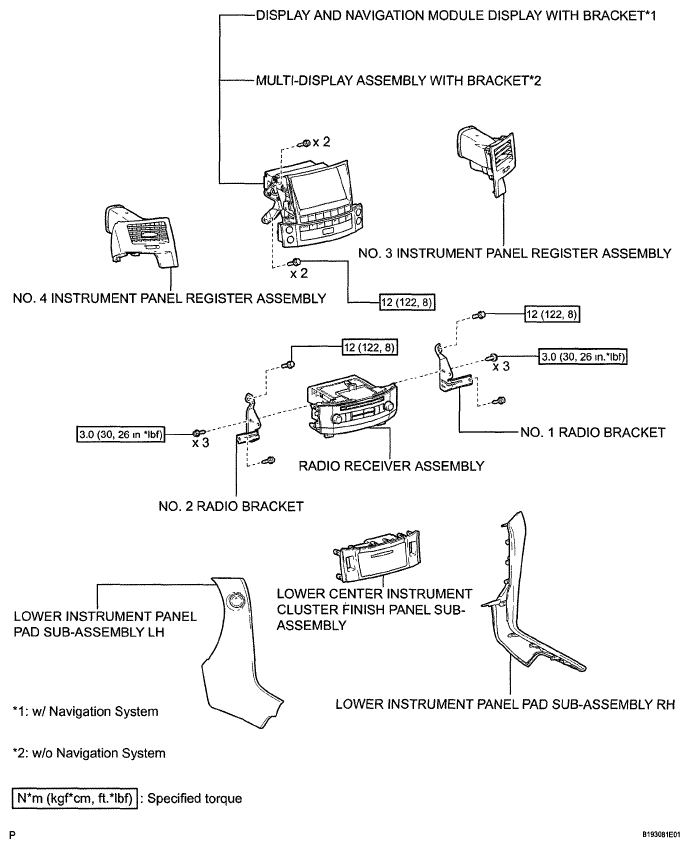

Fig 1: Radio Receiver Replacement Components With Torque Specifications

G05763044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
