System Diagram

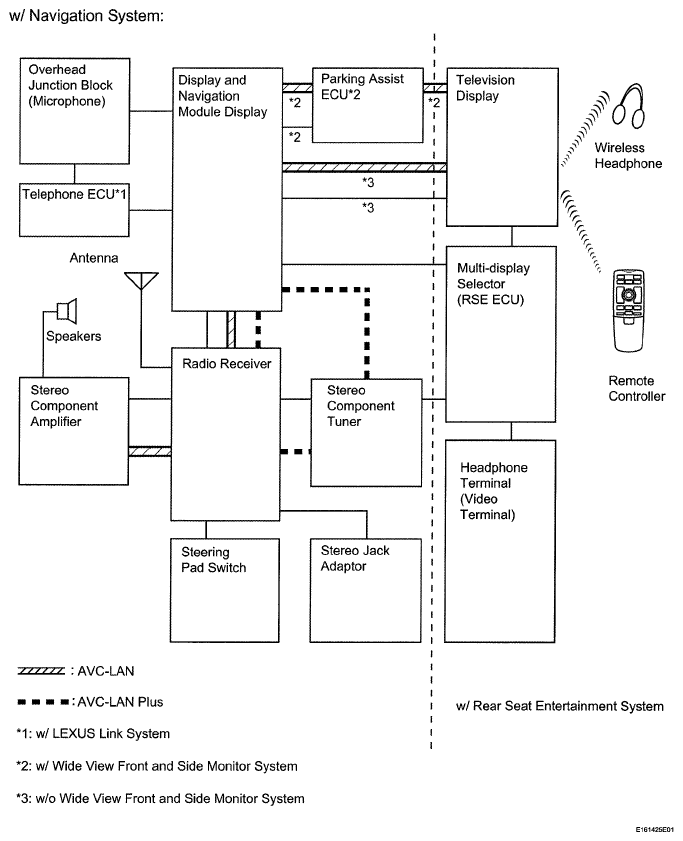

Fig 1: Audio And Visual System Diagram - w/ Navigation System
G05762696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

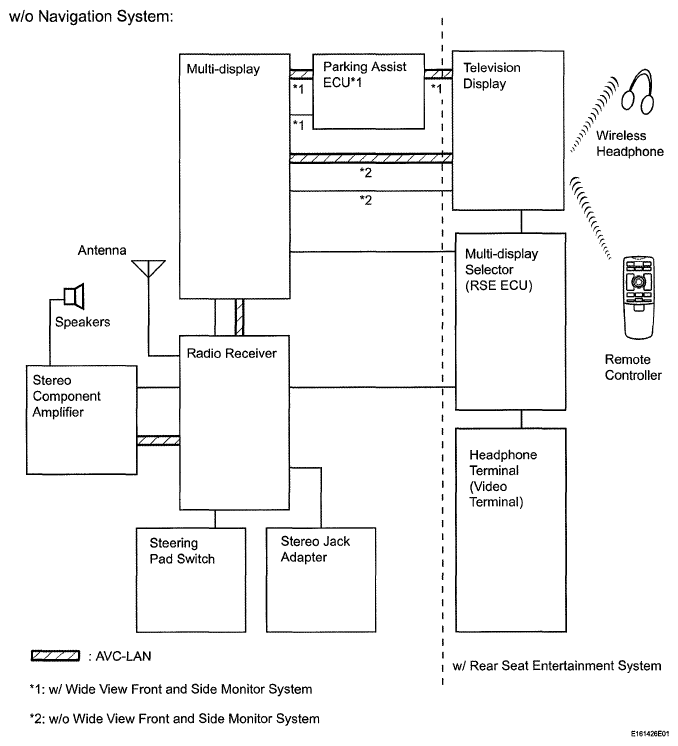

Fig 2: Audio And Visual System Diagram - w/o Navigation System
G05762697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
