Lexus
>>
2008
>>
LS 460L
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Front Power Seat Control System
>>
Parts Location
Parts Location

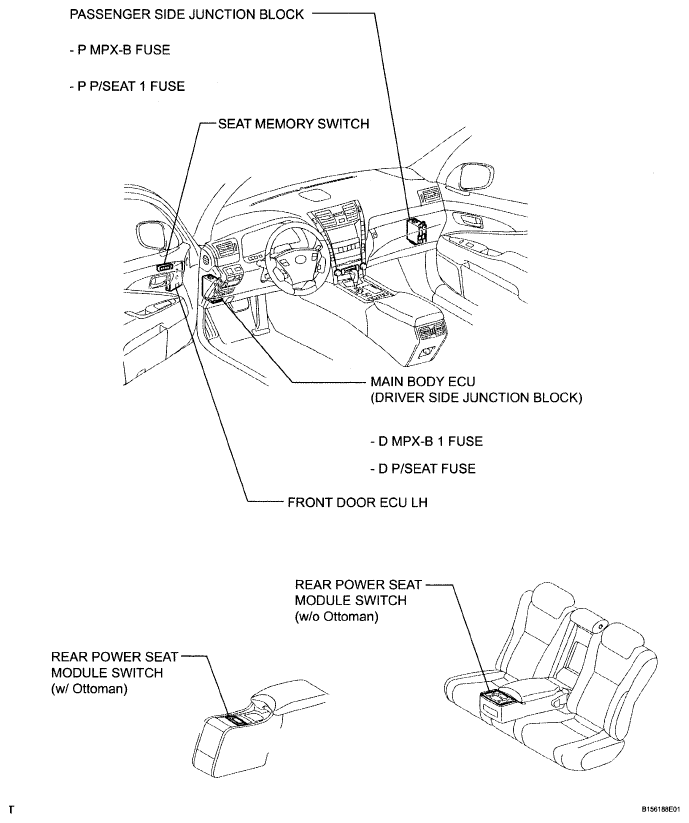

Fig 1: Identifying Front Power Seat Control System Parts Location - Passenger Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

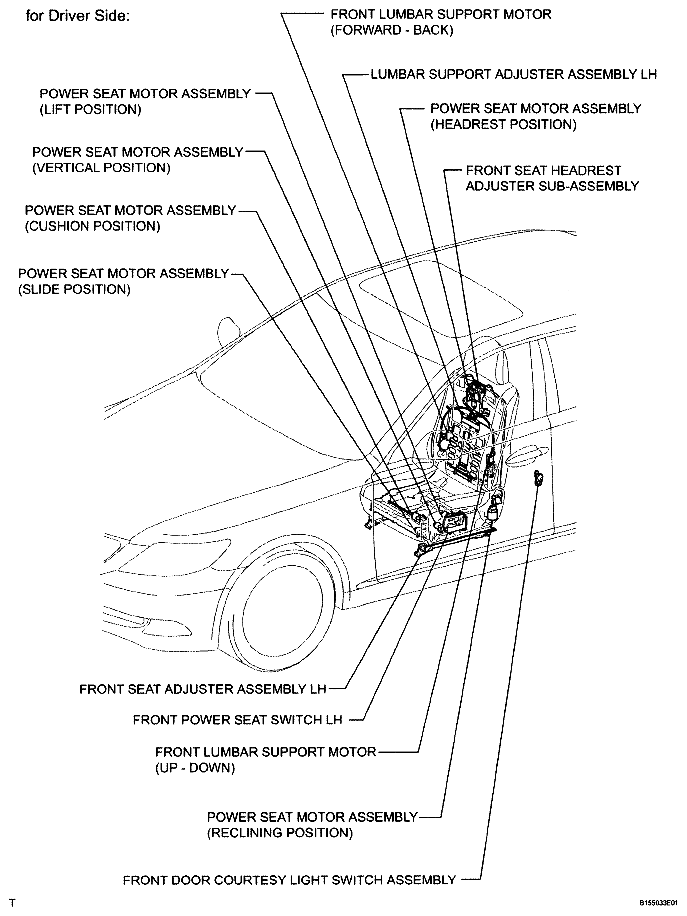

Fig 2: Identifying Front Power Seat Control System Parts Location - Driver Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

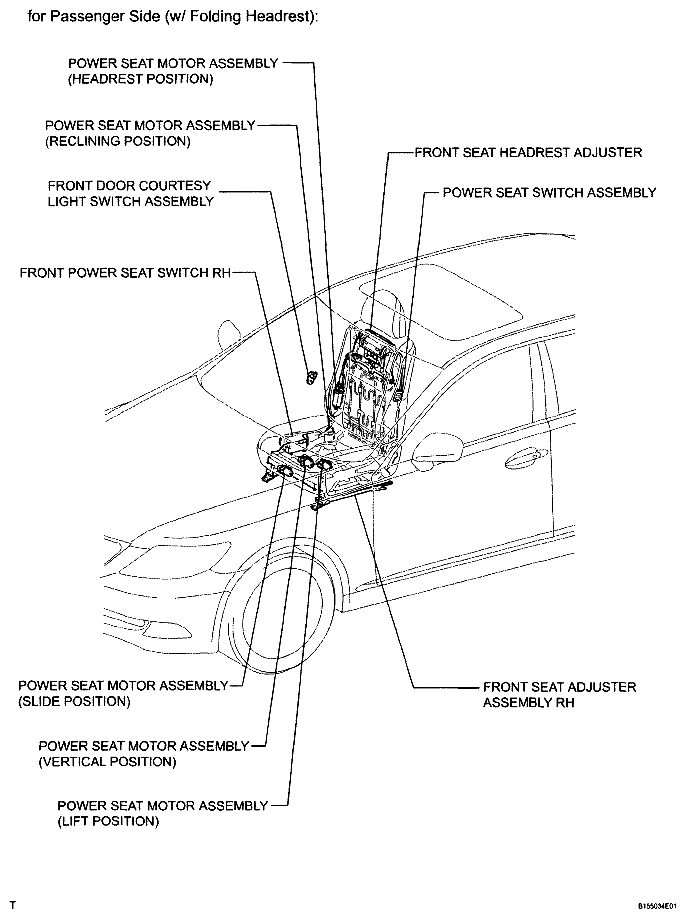

Fig 3: Identifying Front Power Seat Control System Parts Location - Passenger Side (W/ Folding Headrest)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Front Power Seat Control System Parts Location - Passenger Side (W/ Normal Headrest)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
