Emission Control Systems: Locations

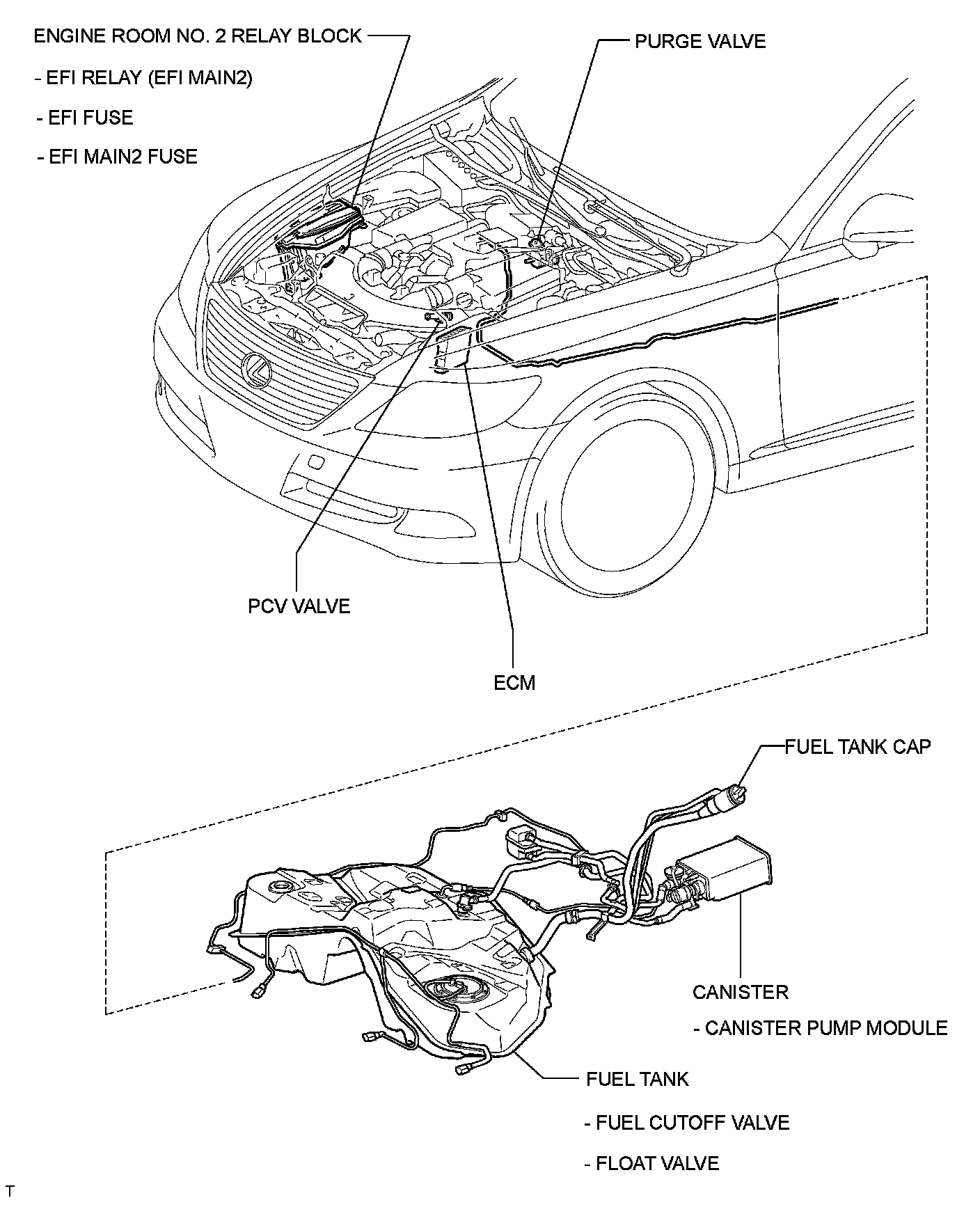

1UR-FSE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
