Parts Location

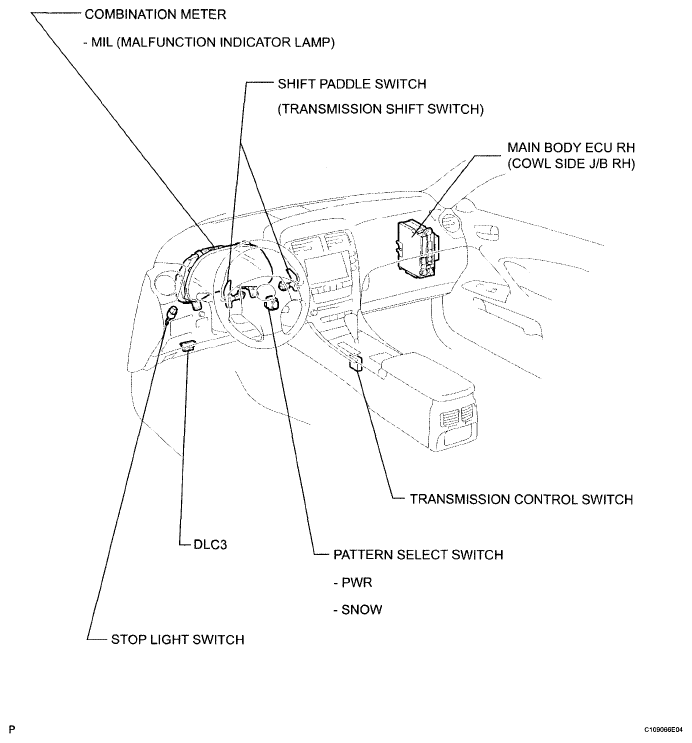

Fig 1: Identifying Automatic Transmission System Components Location (1 Of 2)
G05823969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

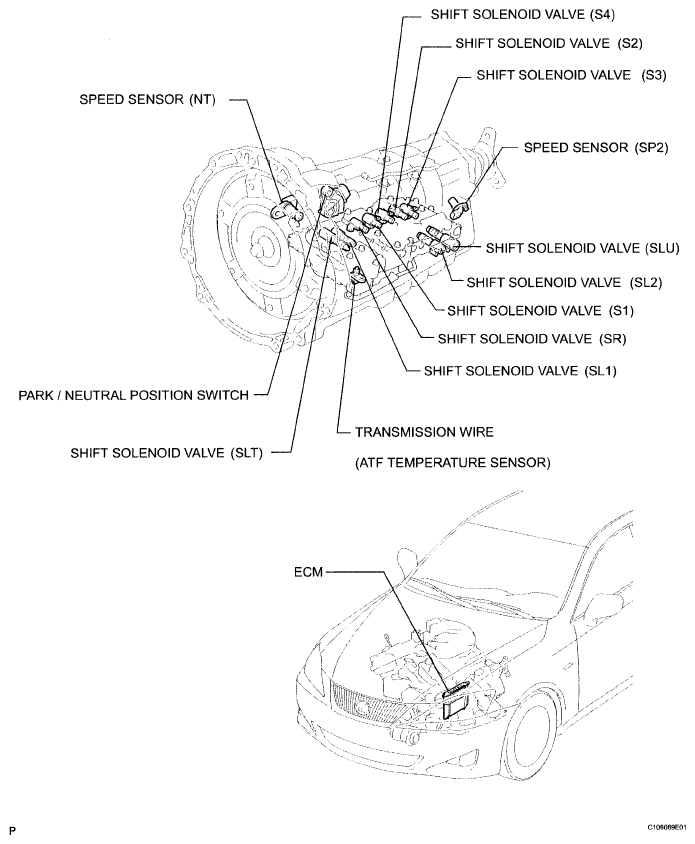

Fig 2: Identifying Automatic Transmission System Components Location (2 Of 2)
G05823970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
