Torque Specifications








SERVICE SPECIFICATIONS: A760E AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

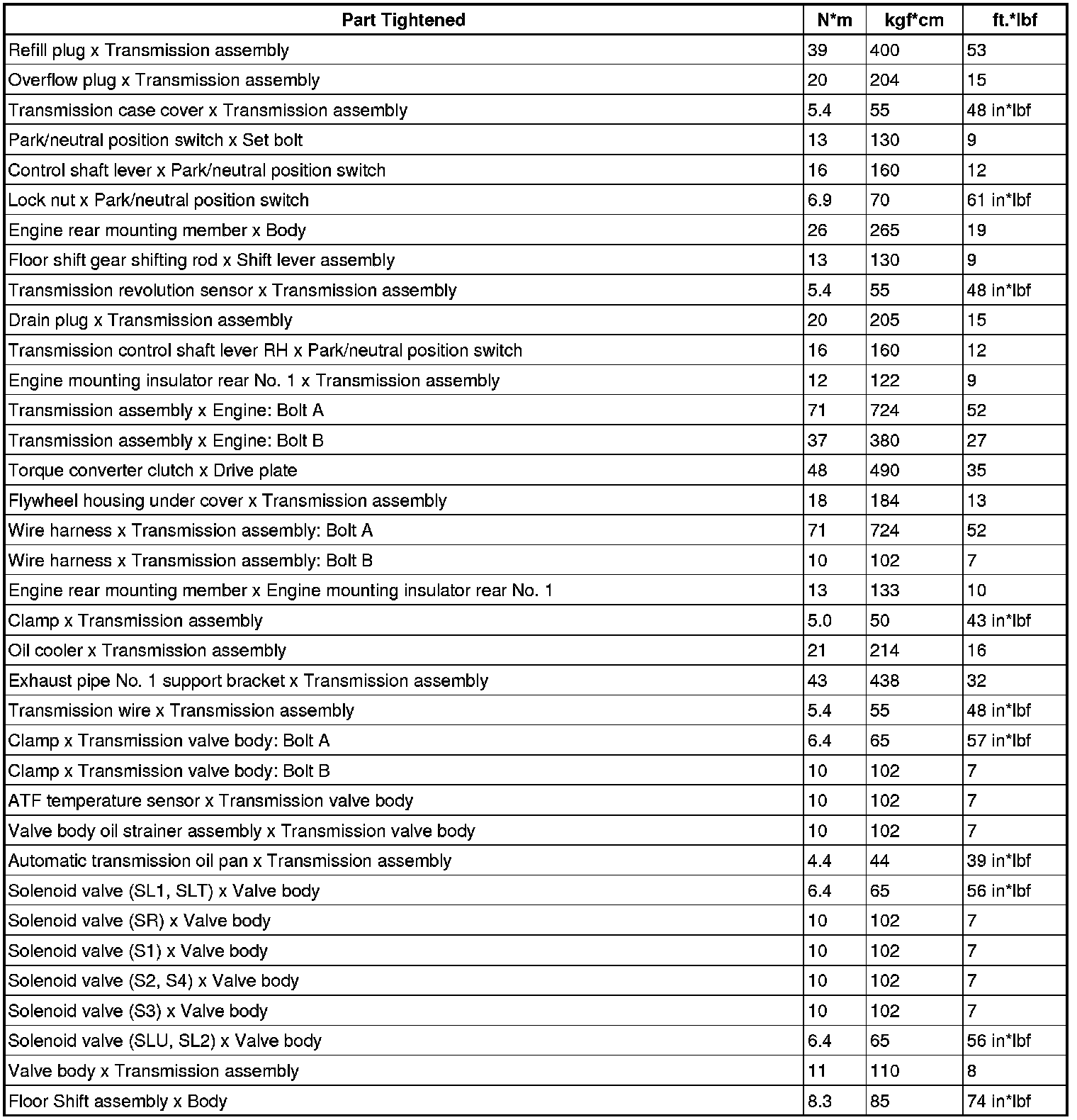

Automatic Transmission Assembly:

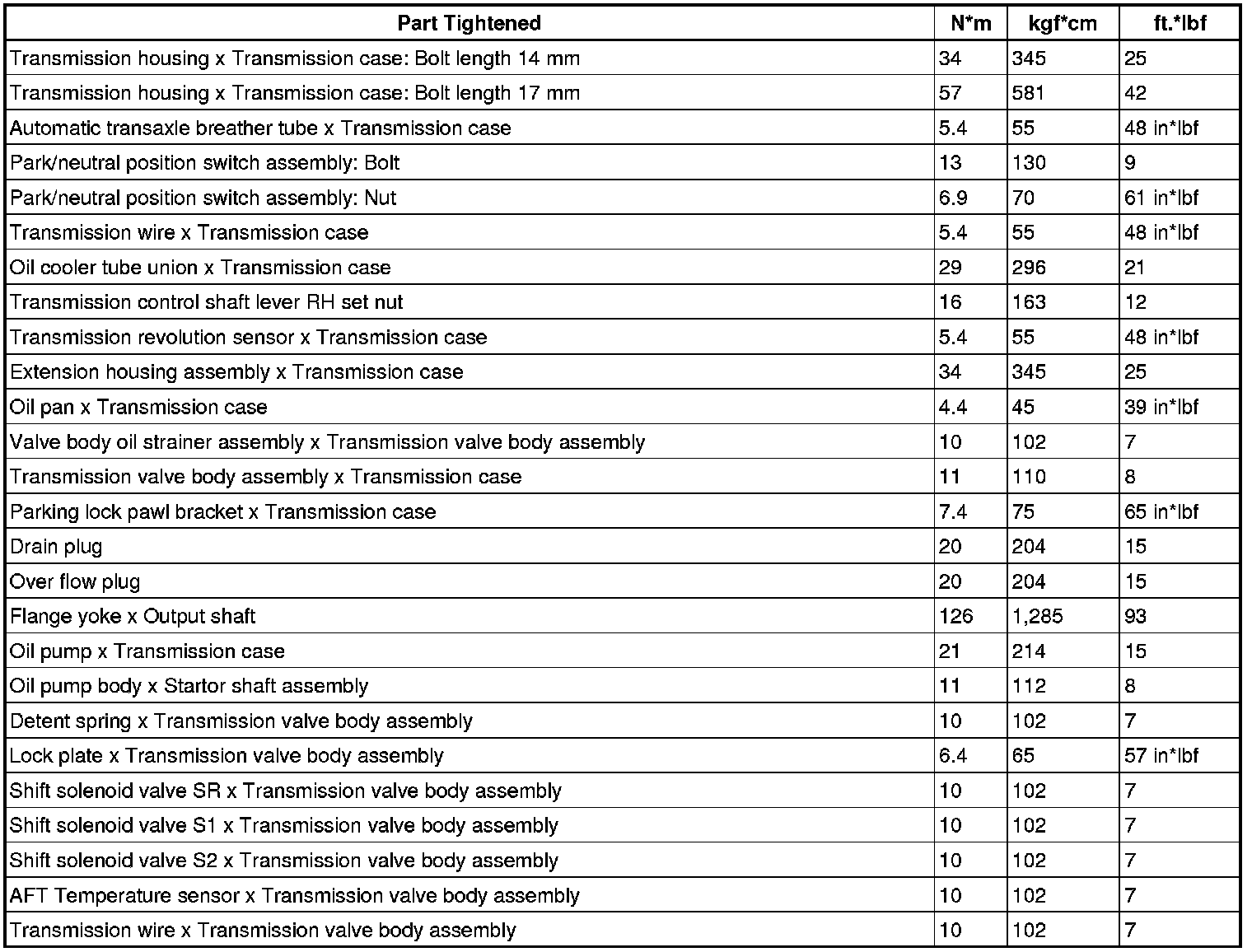

Automatic Transmission Unit:
