Steering Pad Switch: Components

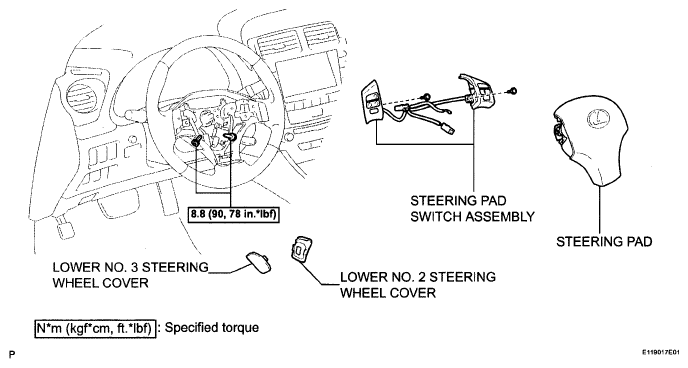

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications

G05828306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
