Radio Receiver: Components

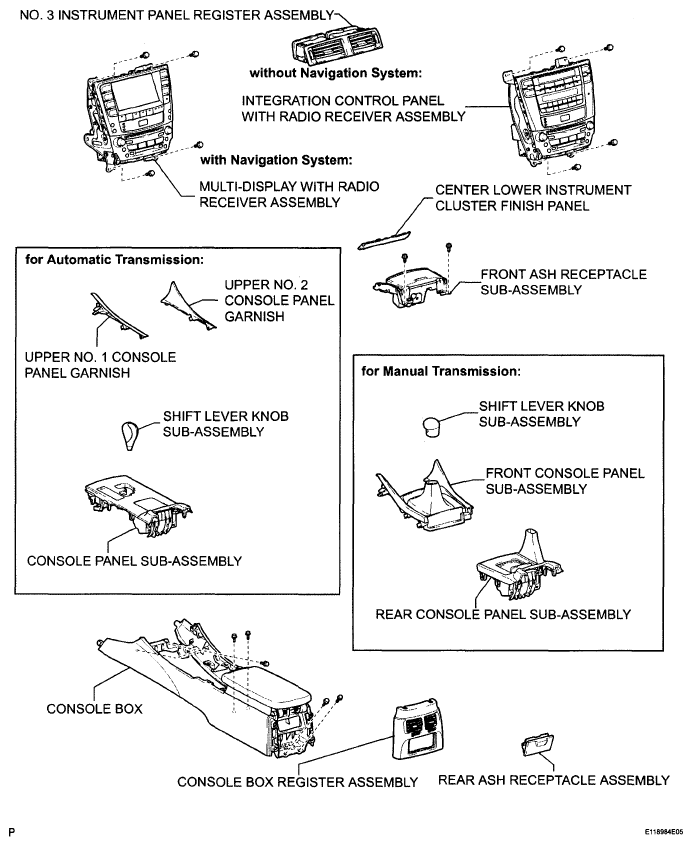

Fig 1: Identifying Radio Receiver Replacement Components (1 Of 2)
G05828212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

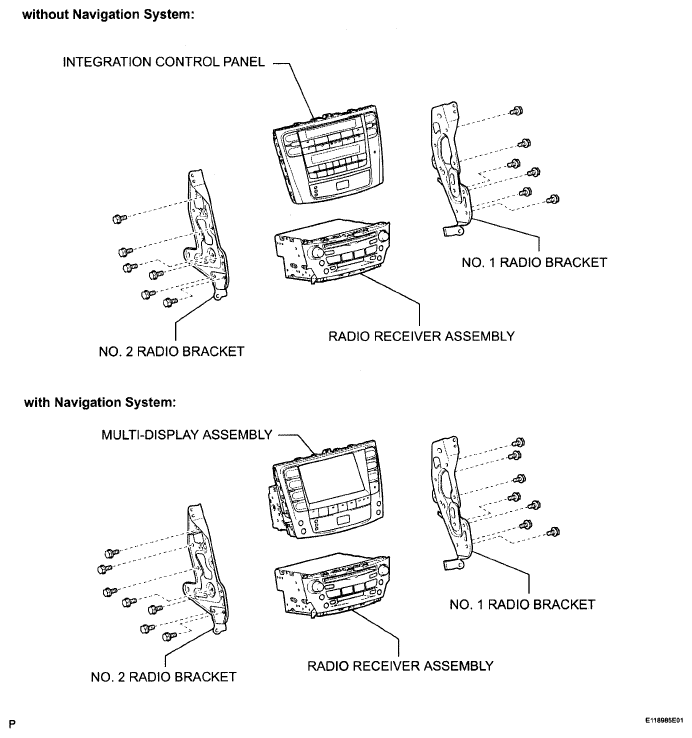

Fig 2: Identifying Radio Receiver Replacement Components (2 Of 2)
G05828213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
