System Diagram

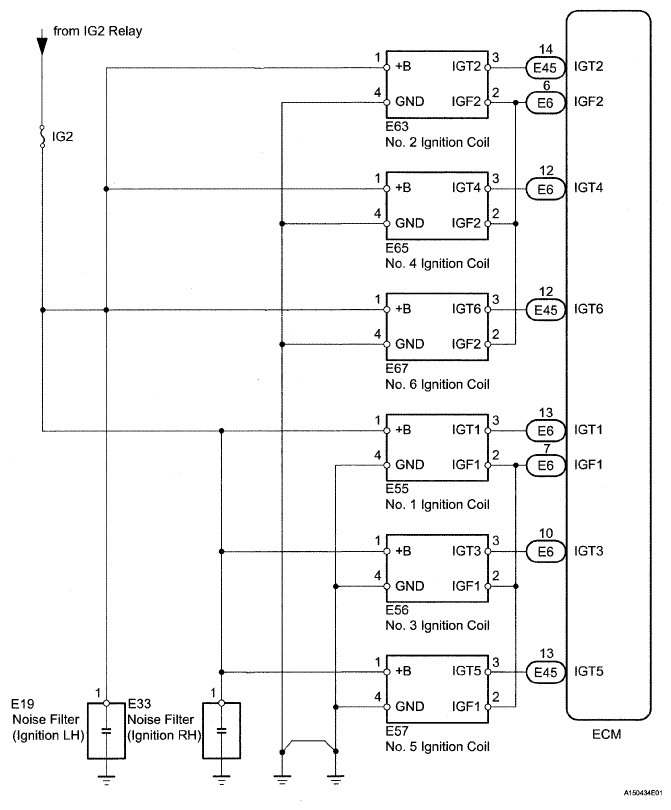

Fig 1: Ignition System Diagram

G05287677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
