Intake Manifold
Intake Manifold

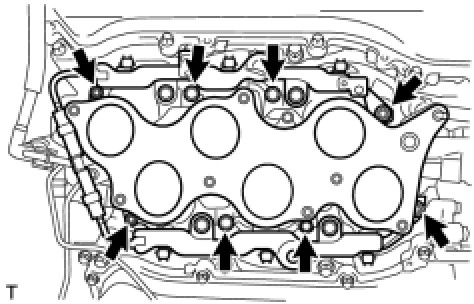

Install a new gasket and the intake manifold with the 4 bolts and 4 nuts.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Throttle Body

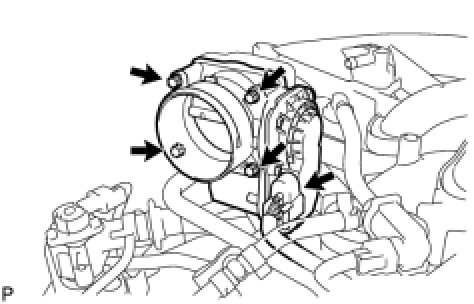

Install the throttle body with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
Install a new gasket and the intake manifold with the 4 bolts and 4 nuts.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
Throttle Body
Install the throttle body with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
