Home >> Lexus >> 2008 >> GS 350 AWD V6-3.5L (2GR-FSE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Cooling System >> System Specifications

System Specifications









SERVICE SPECIFICATIONS: 2GR-FSE COOLING: TORQUE SPECIFICATIONS

Coolant

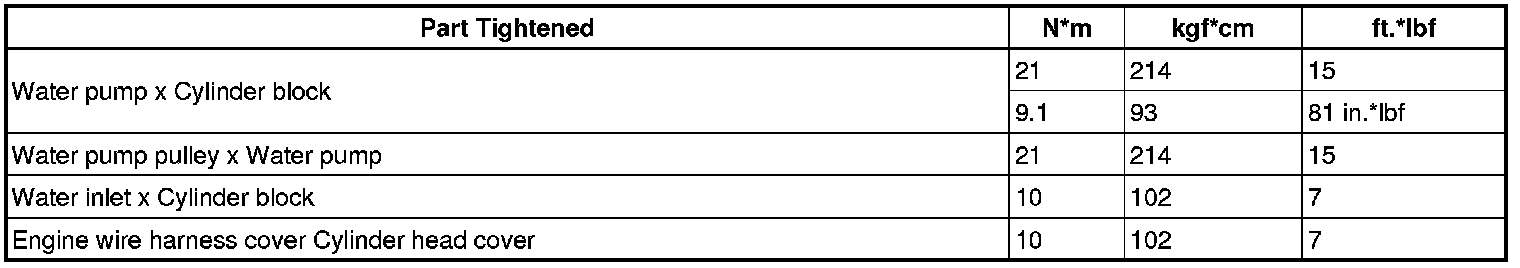

Water pump





Water inlet with thermostat

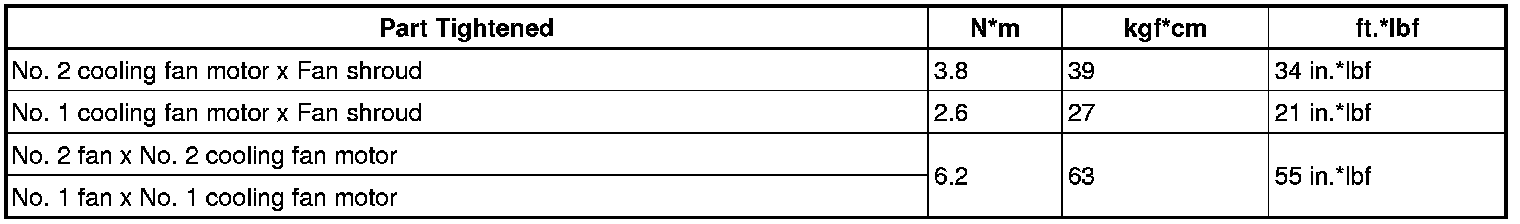

Cooling fan motor

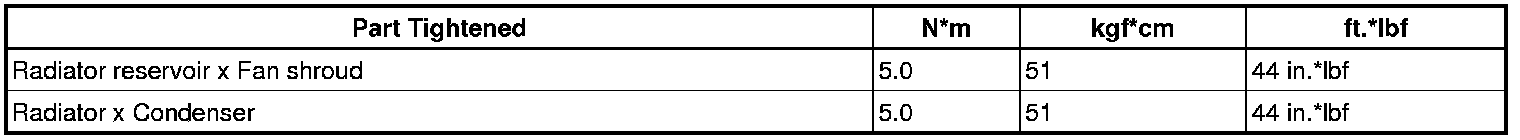

Radiator
