Steering Control Module
Steering Control Module

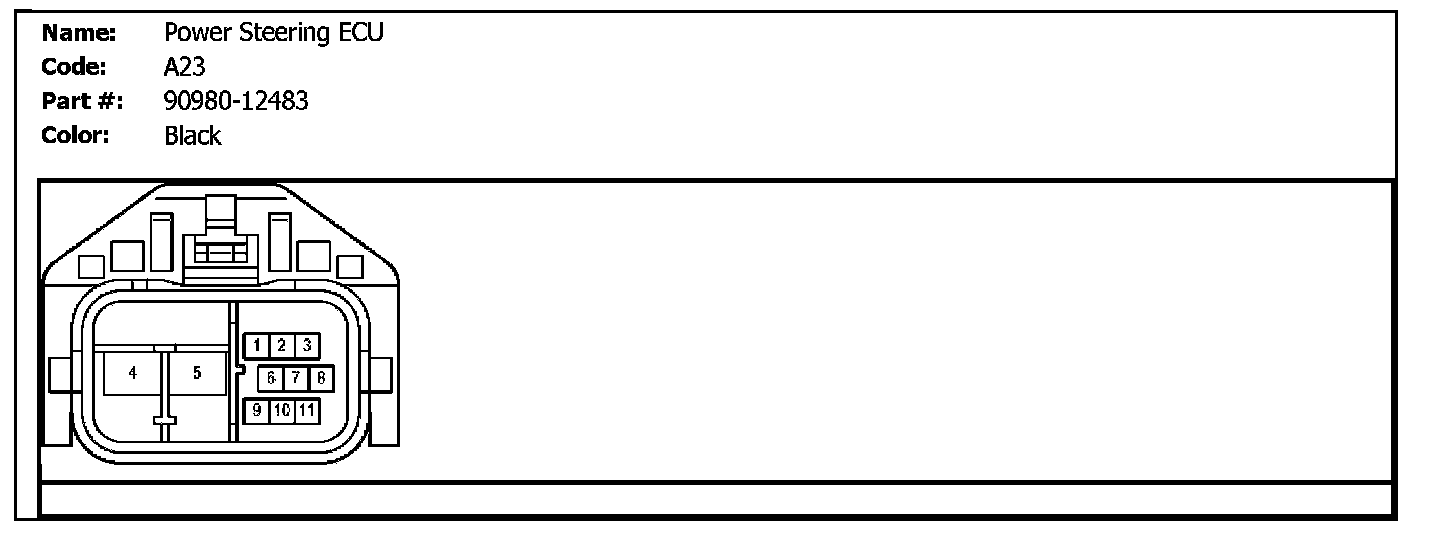

A23 (Power Steering ECU):

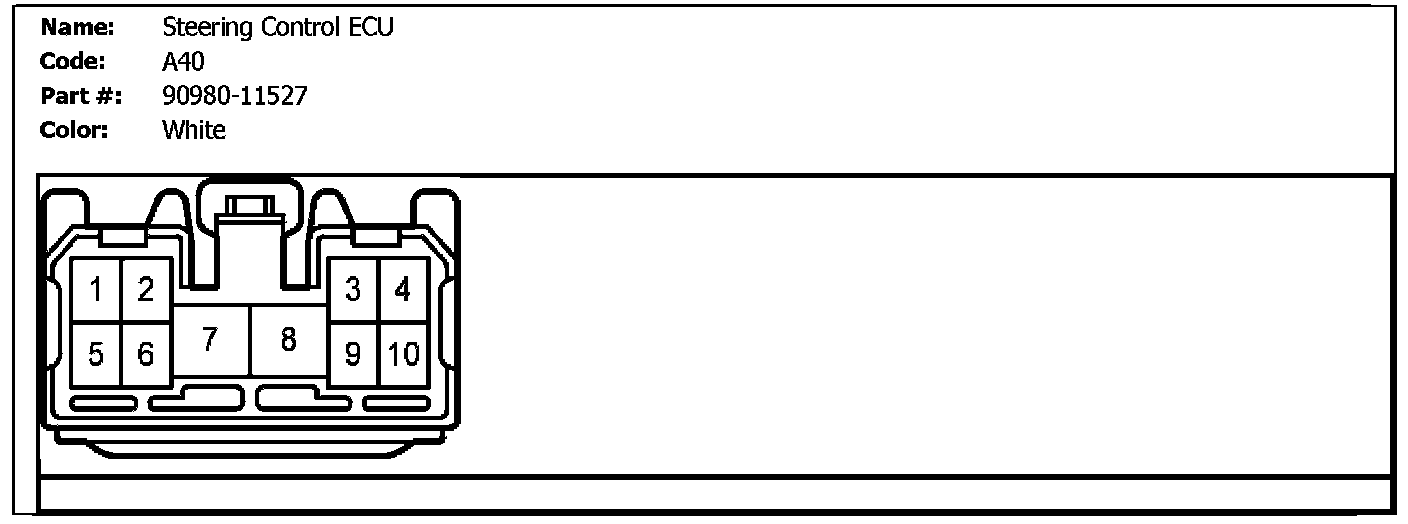

A40 (Steering Control ECU):

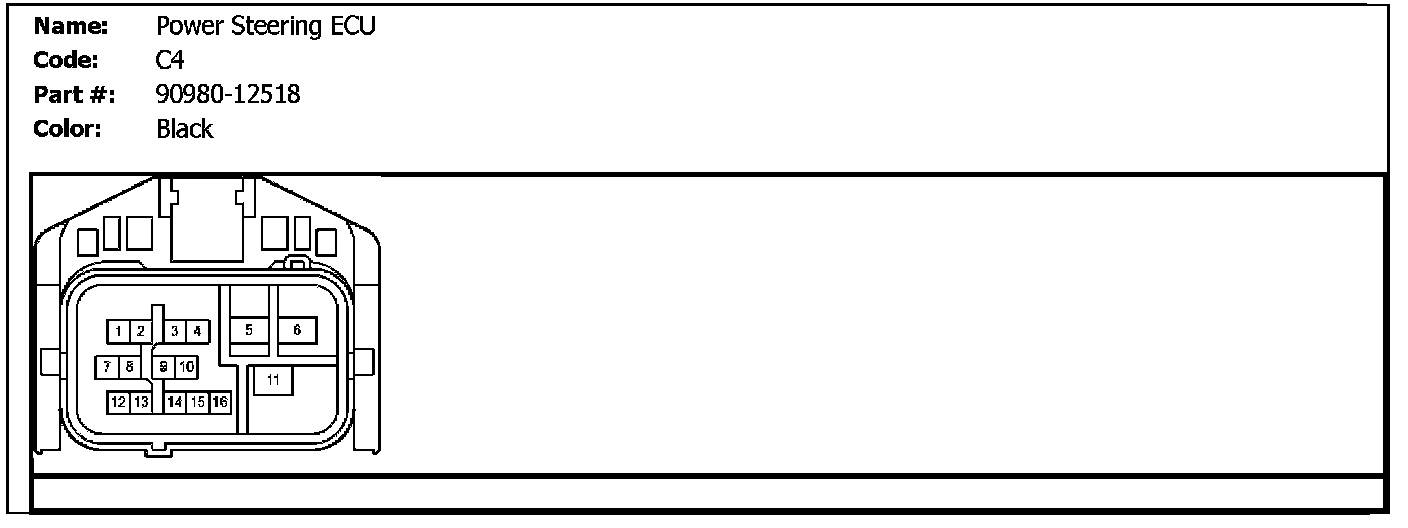

C4 (Power Steering ECU):

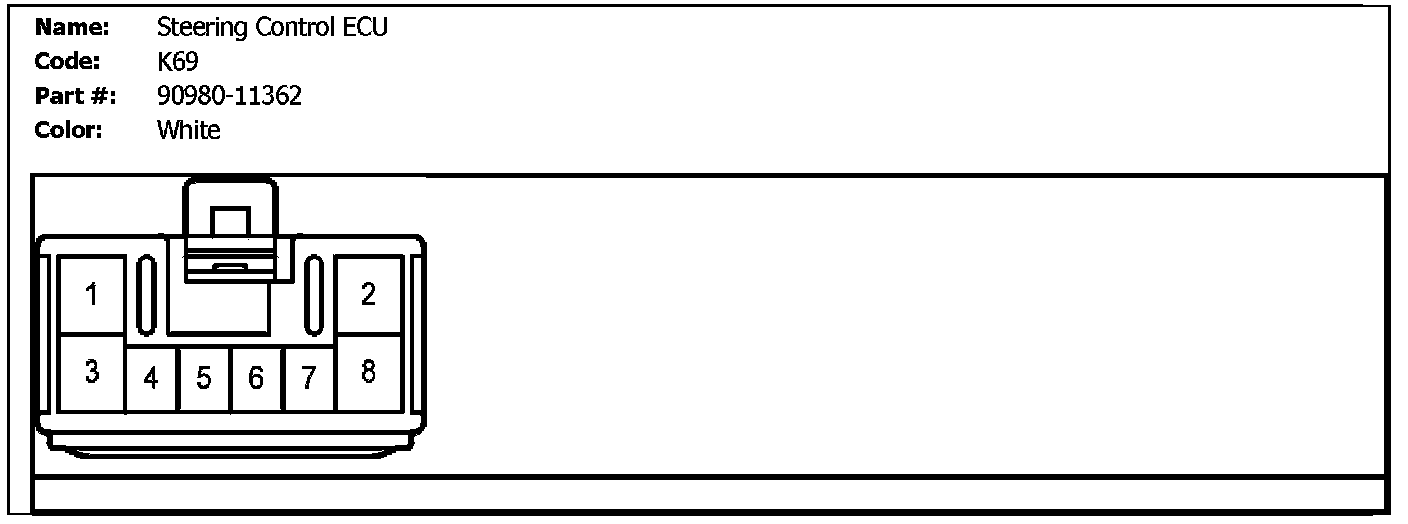

K69 (Steering Control ECU):

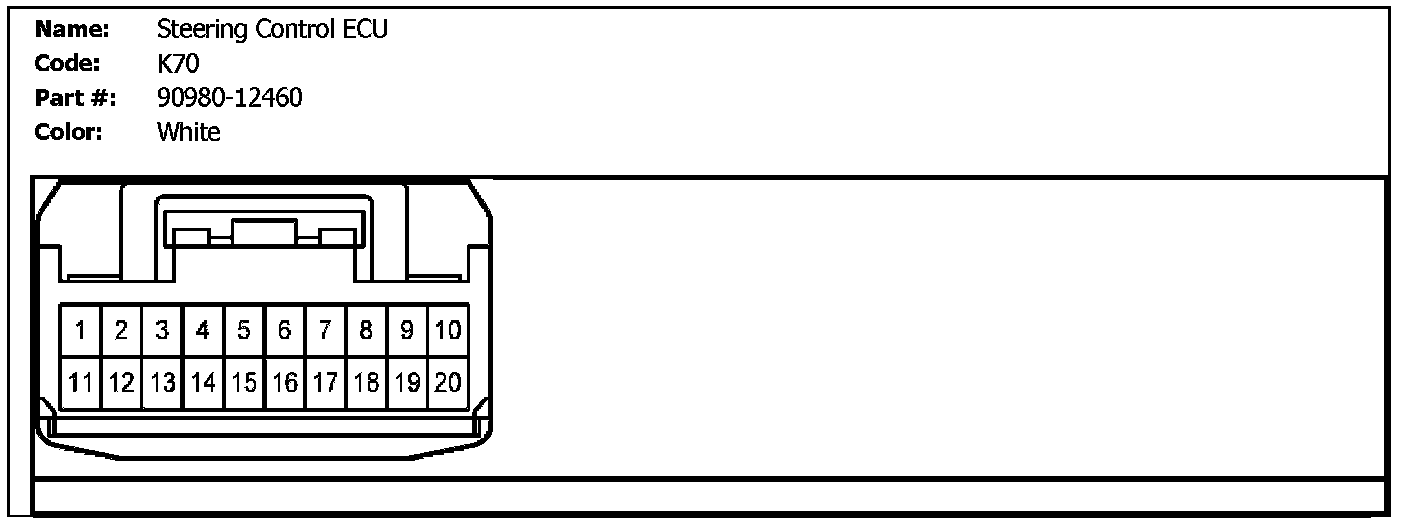

K70 (Steering Control ECU):
