Steering Column Control Module
Steering Column Control Module

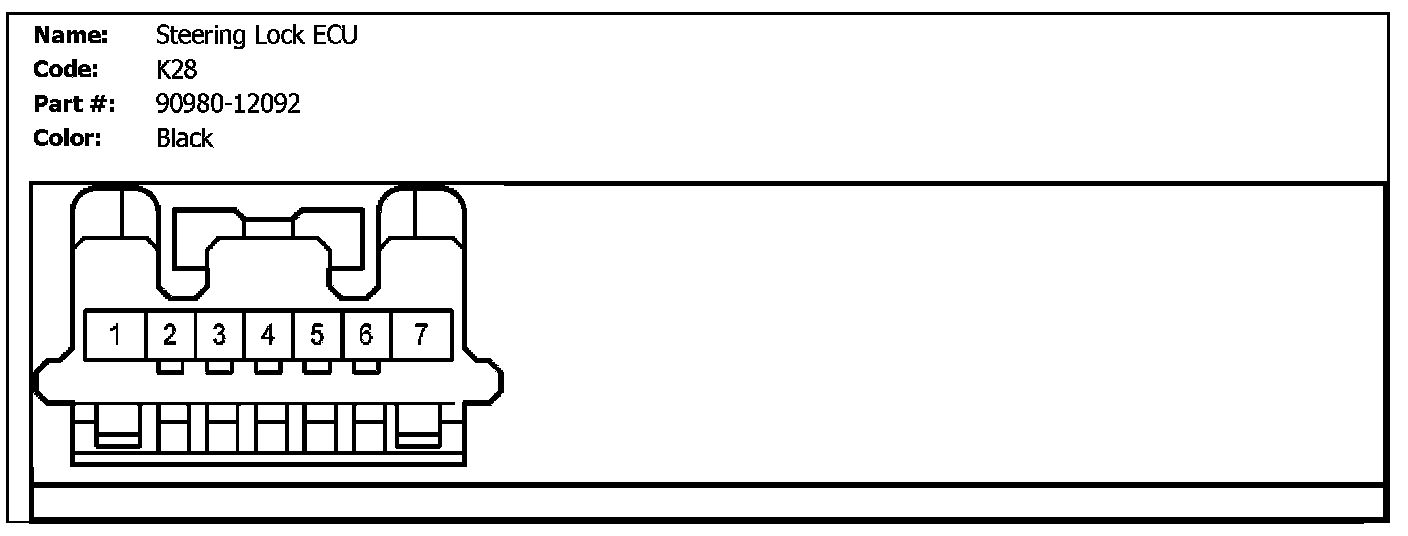

K28 (Steering Lock ECU):

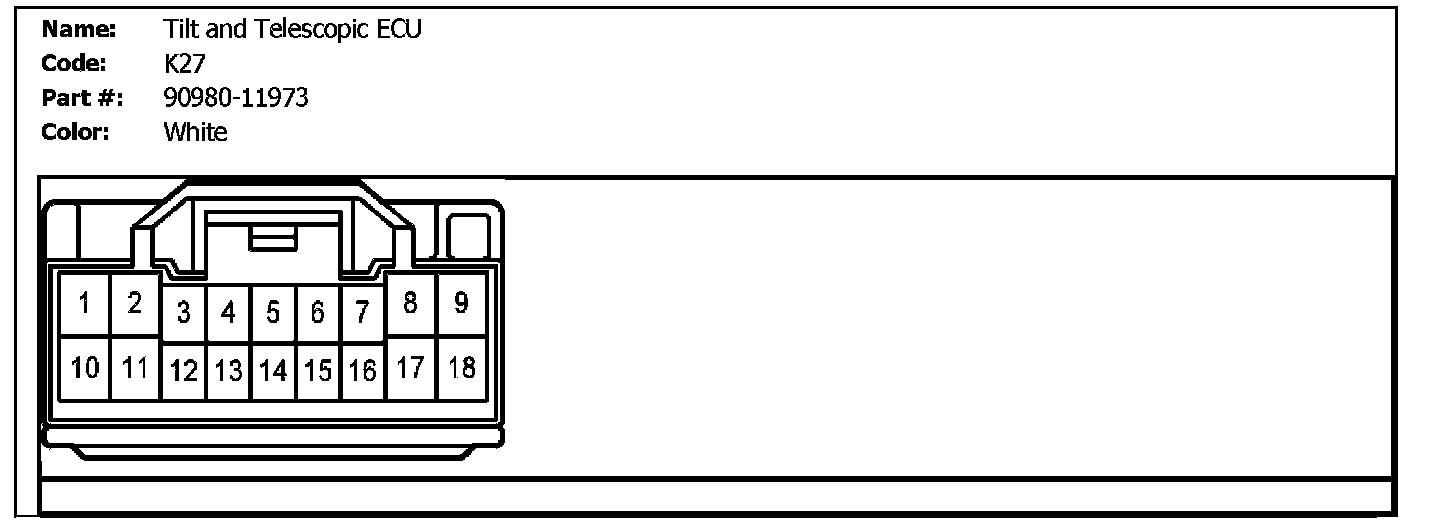

K27 (Tilt and Telescopic ECU):
