Memory Positioning Module

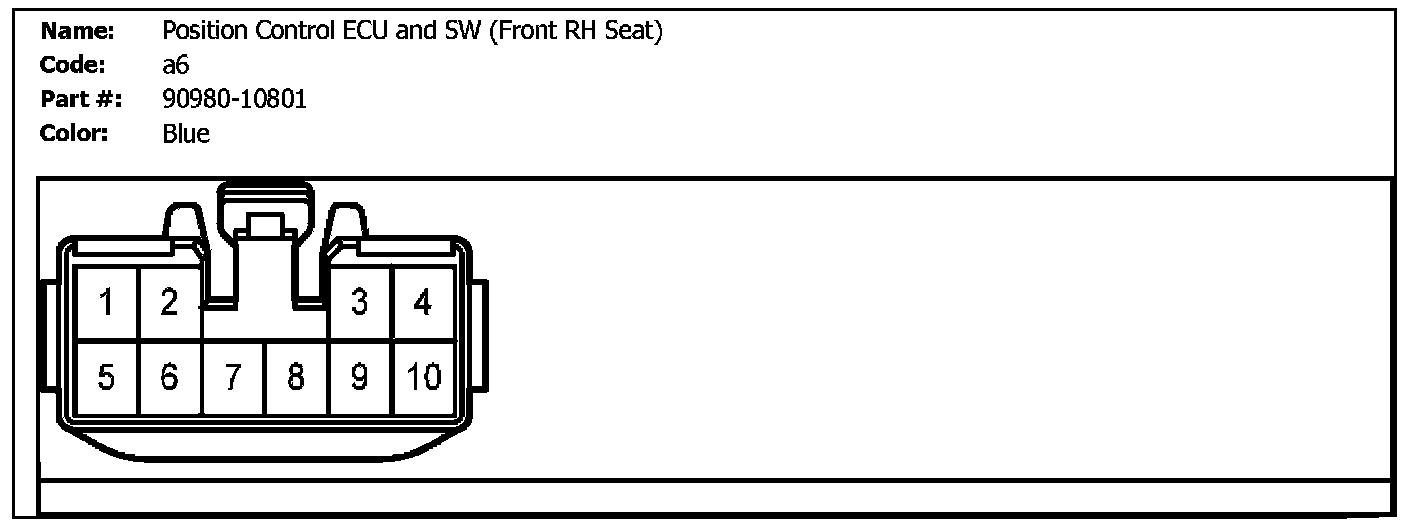

a6 (Position Control ECU And SW (Front RH Seat)):

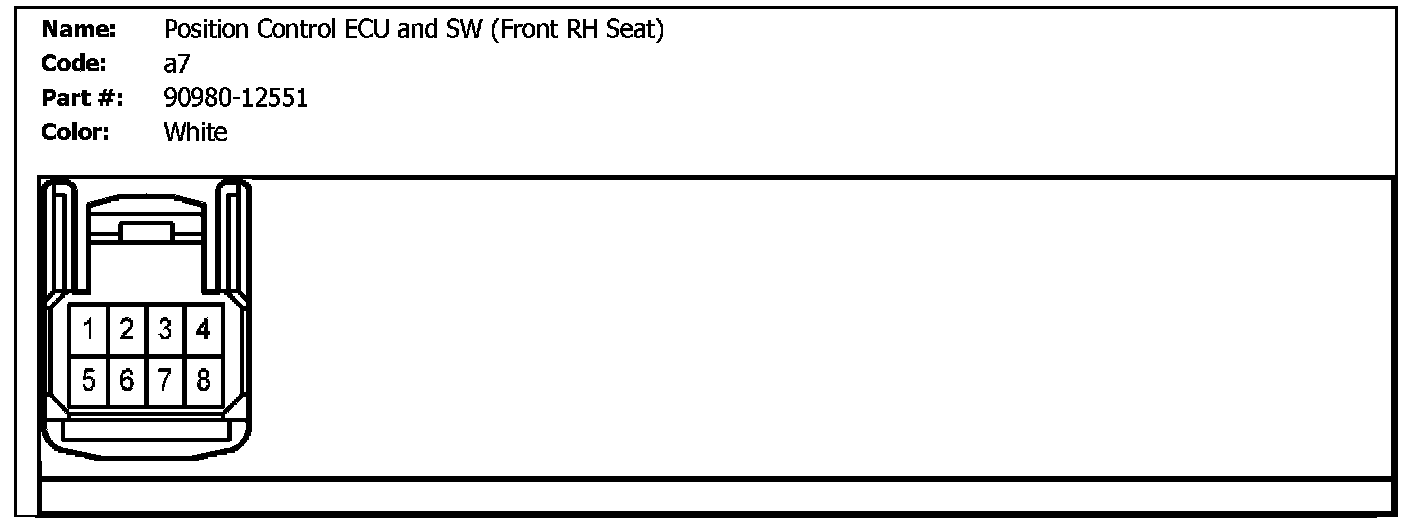

a7 (Position Control ECU And SW (Front RH Seat)):

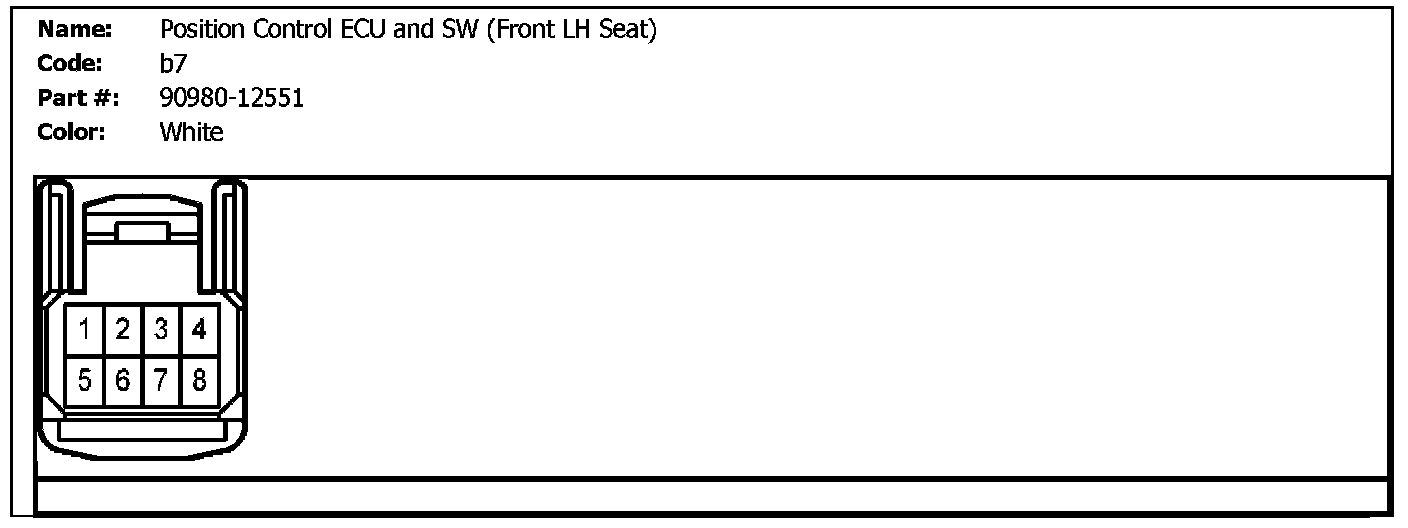

b7 (Position Control ECU And SW (Front LH Seat)):

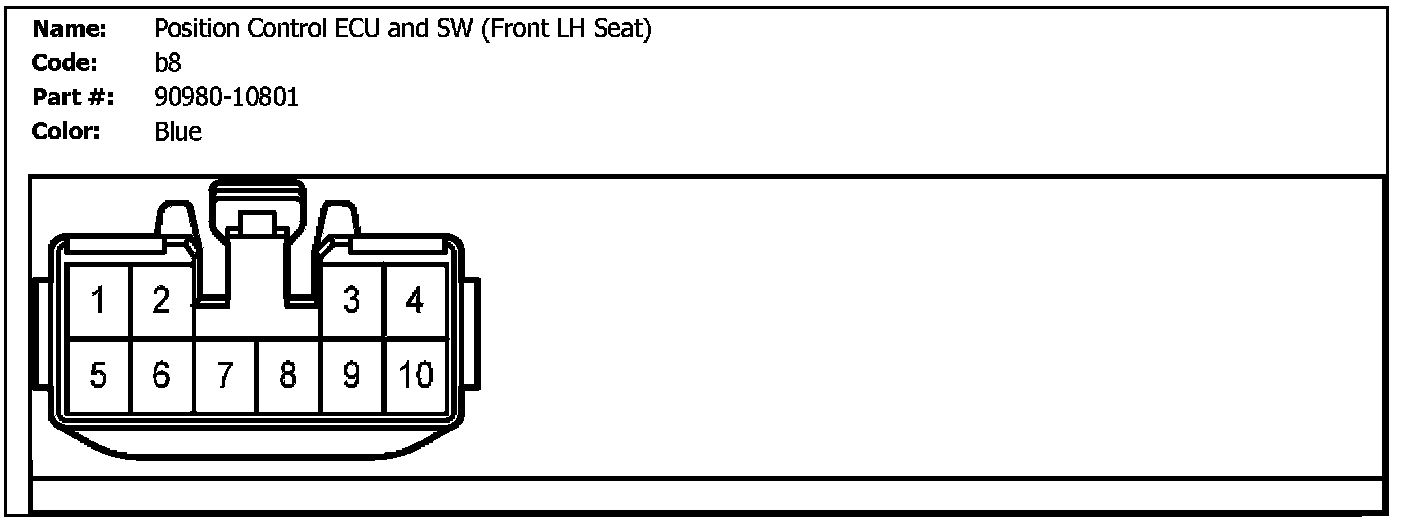

b8 (Position Control ECU And SW (Front LH Seat)):
