Electronic Brake Control Module

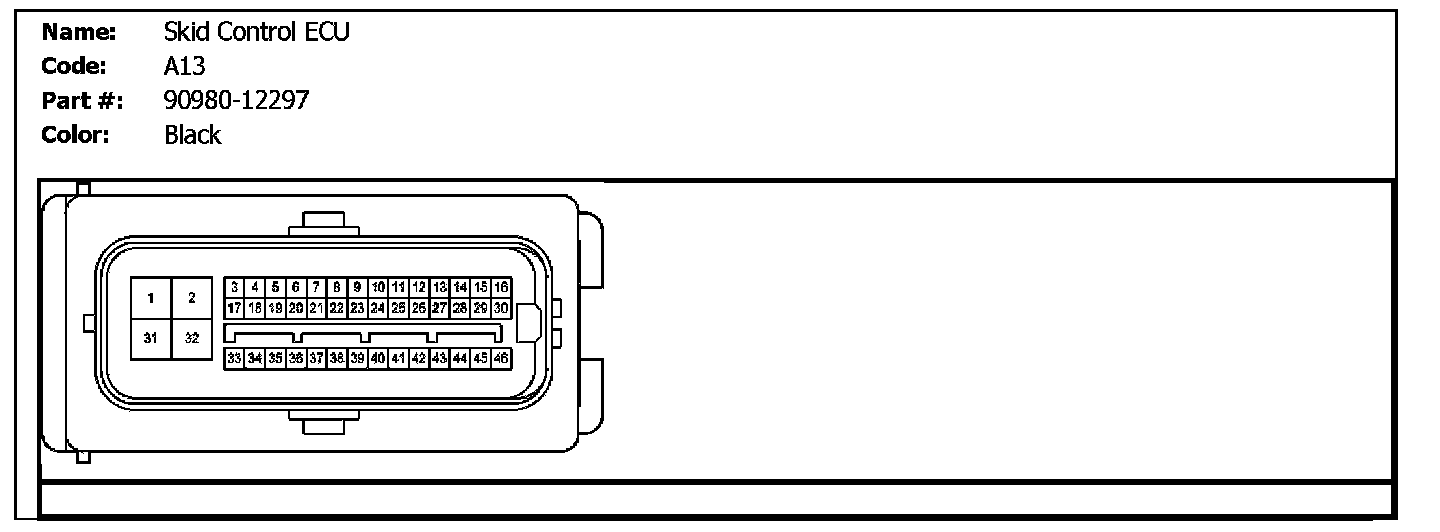

A13 (Skid Control ECU):

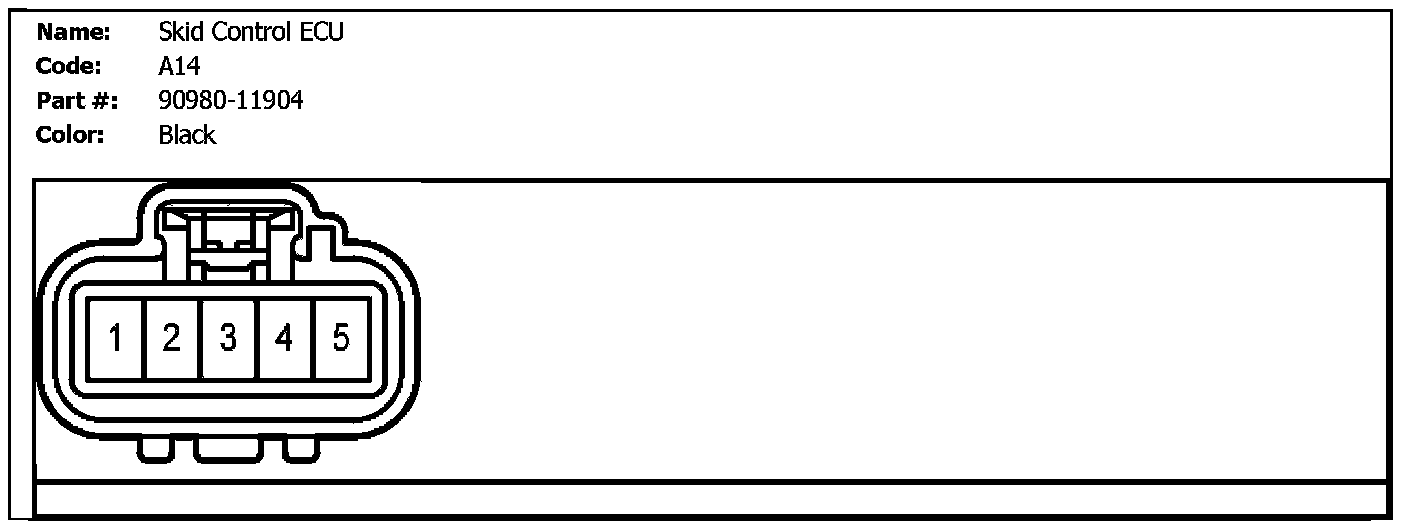

A14 (Skid Control ECU):

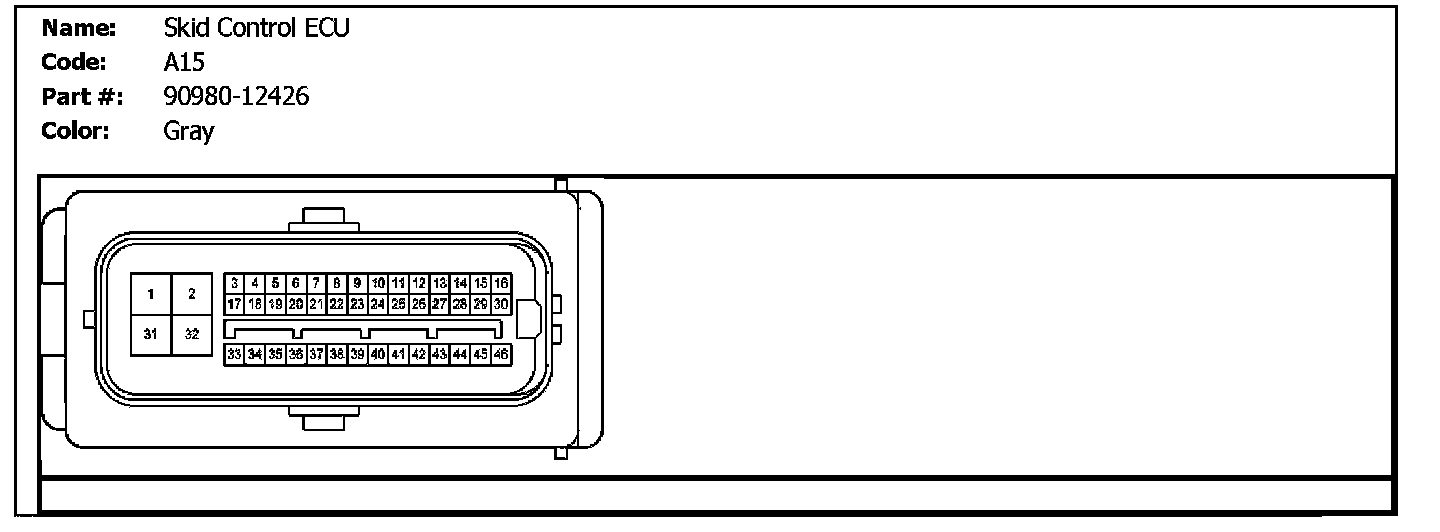

A15 (Skid Control ECU):

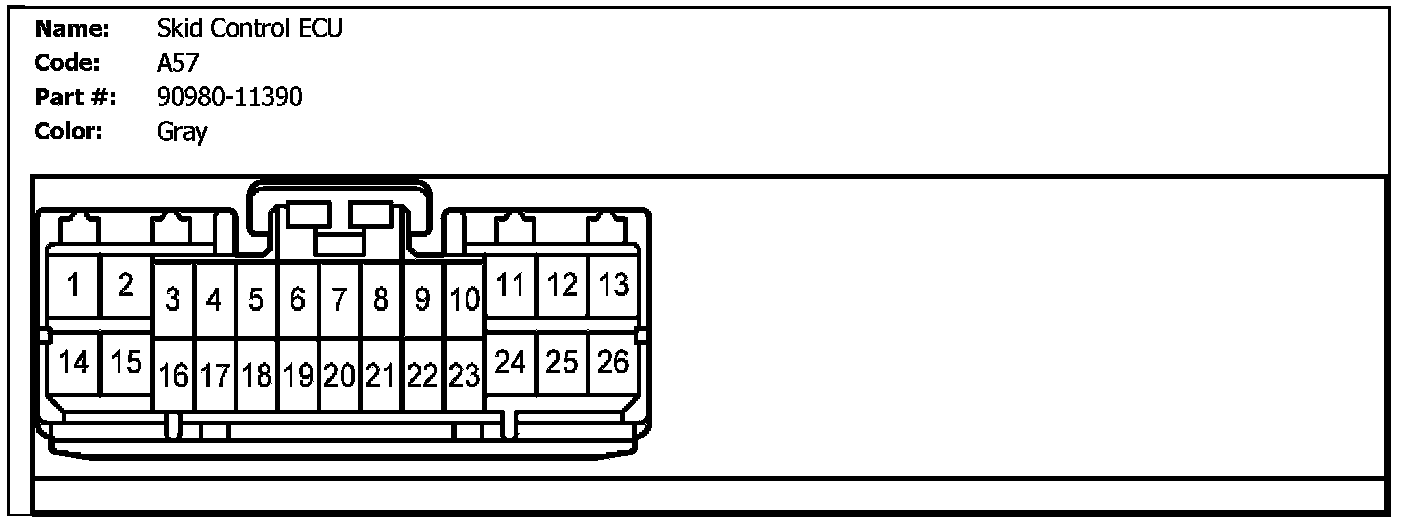

A57 (Skid Control ECU):

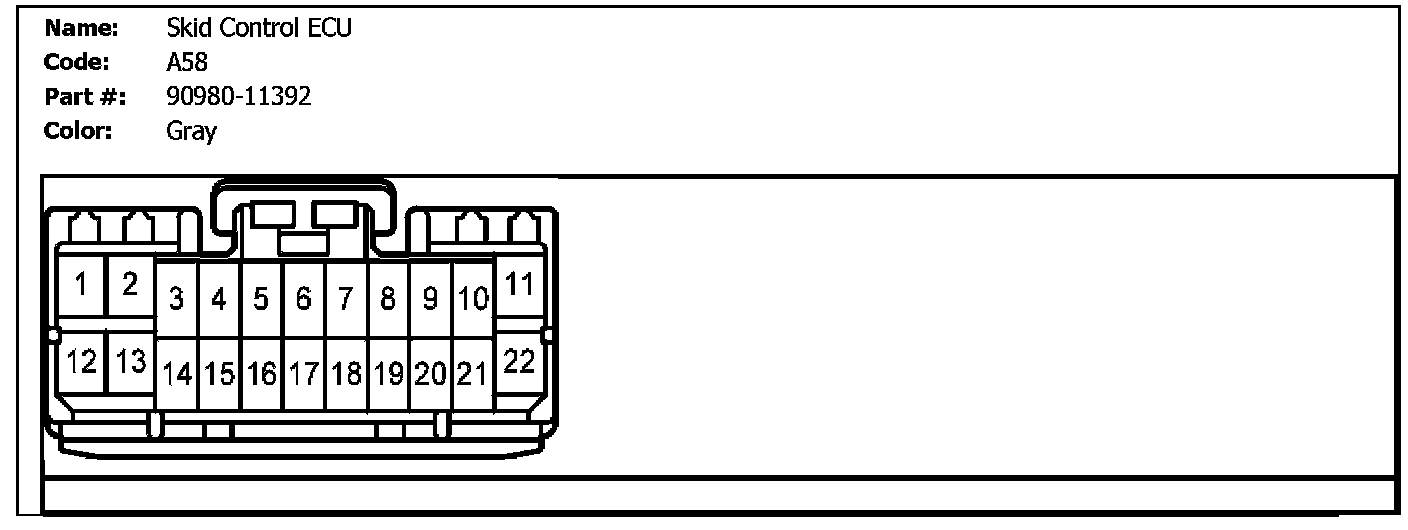

A58 (Skid Control ECU):

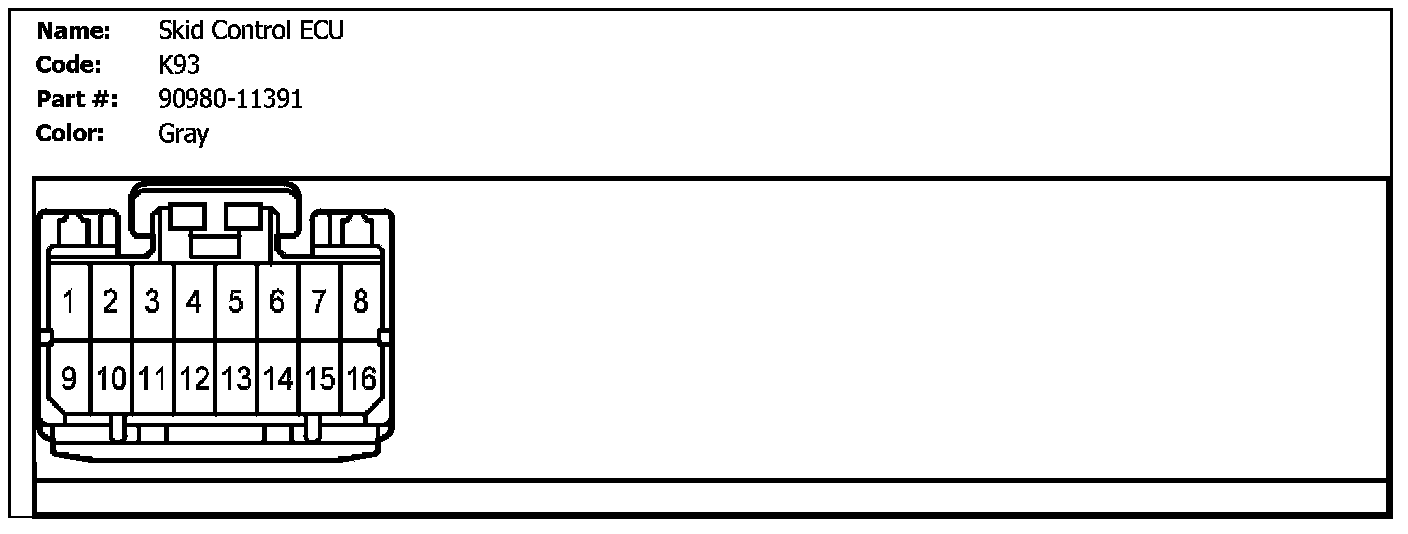

K93 (Skid Control ECU):
