Wiper and Washer without Auto Wiper System: Notes

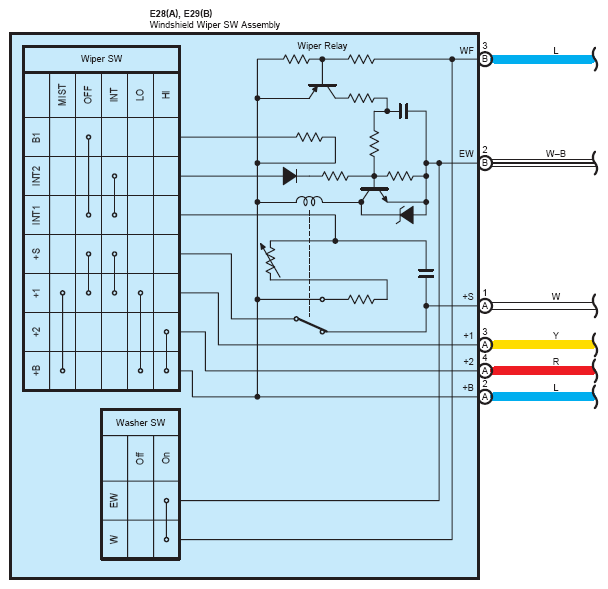

Fig 1: Wiper And Washer Without Auto Wiper System - Circuit Diagram (1 Of 2)
G07619178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

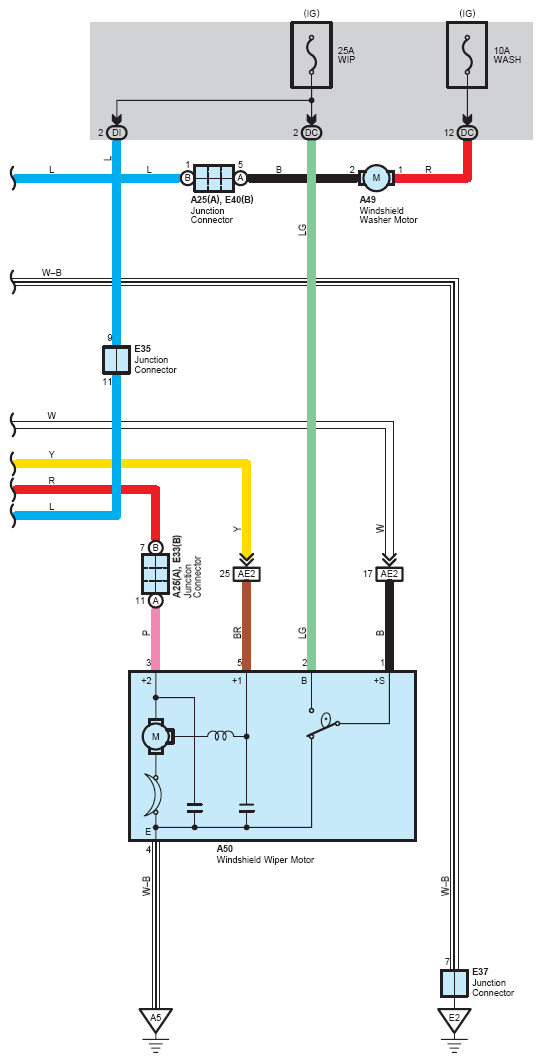

Fig 2: Wiper And Washer Without Auto Wiper System - Circuit Diagram (2 Of 2)
G07619179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
