Brake Warning Light Circuit: Wiring Diagram

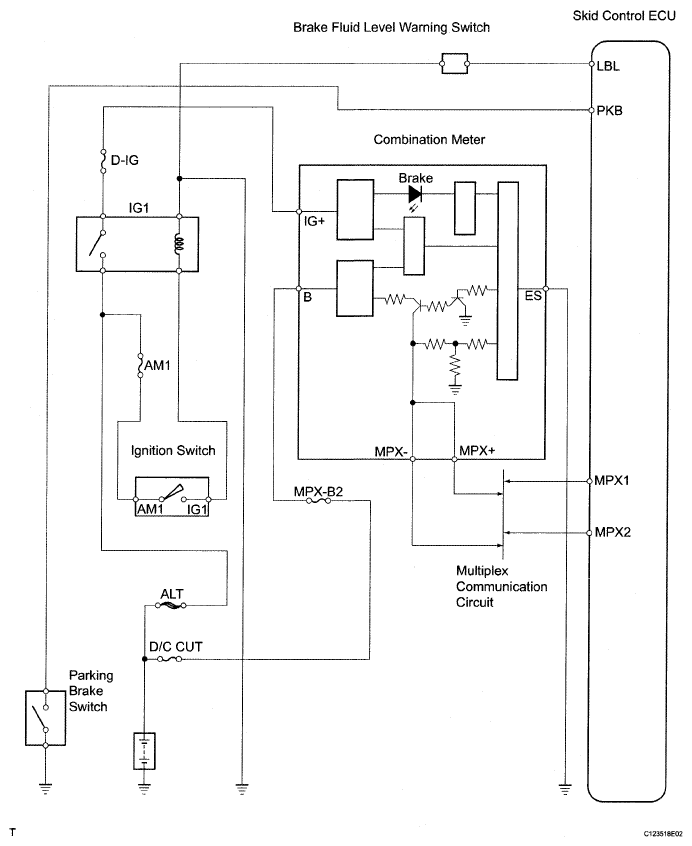

Fig 1: Brake Warning Light Circuit - Wiring Diagram

G05290687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
