Home >> Lexus >> 2007 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Service Data

Service Data

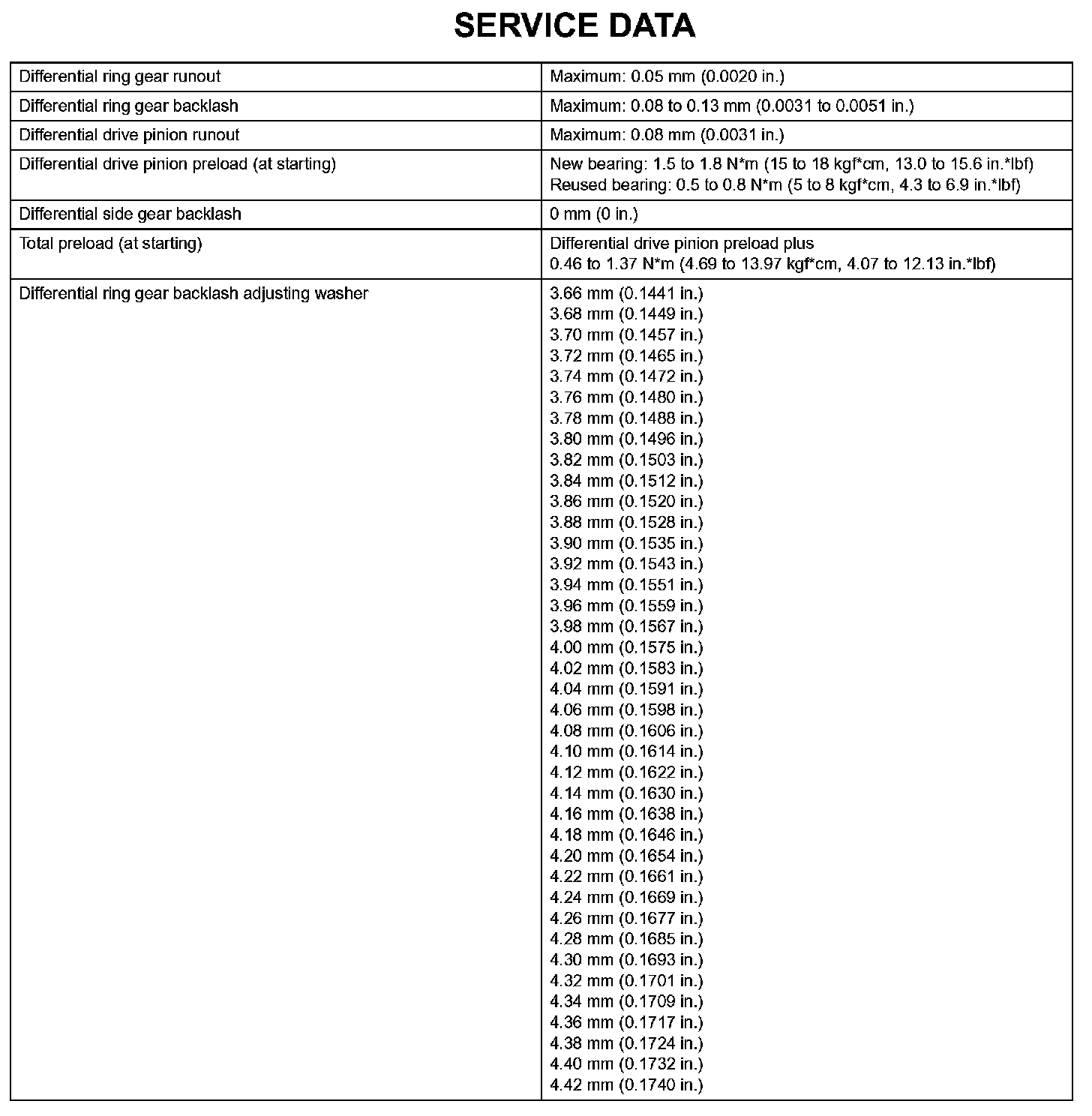

Differential - Service Data (Part 1):

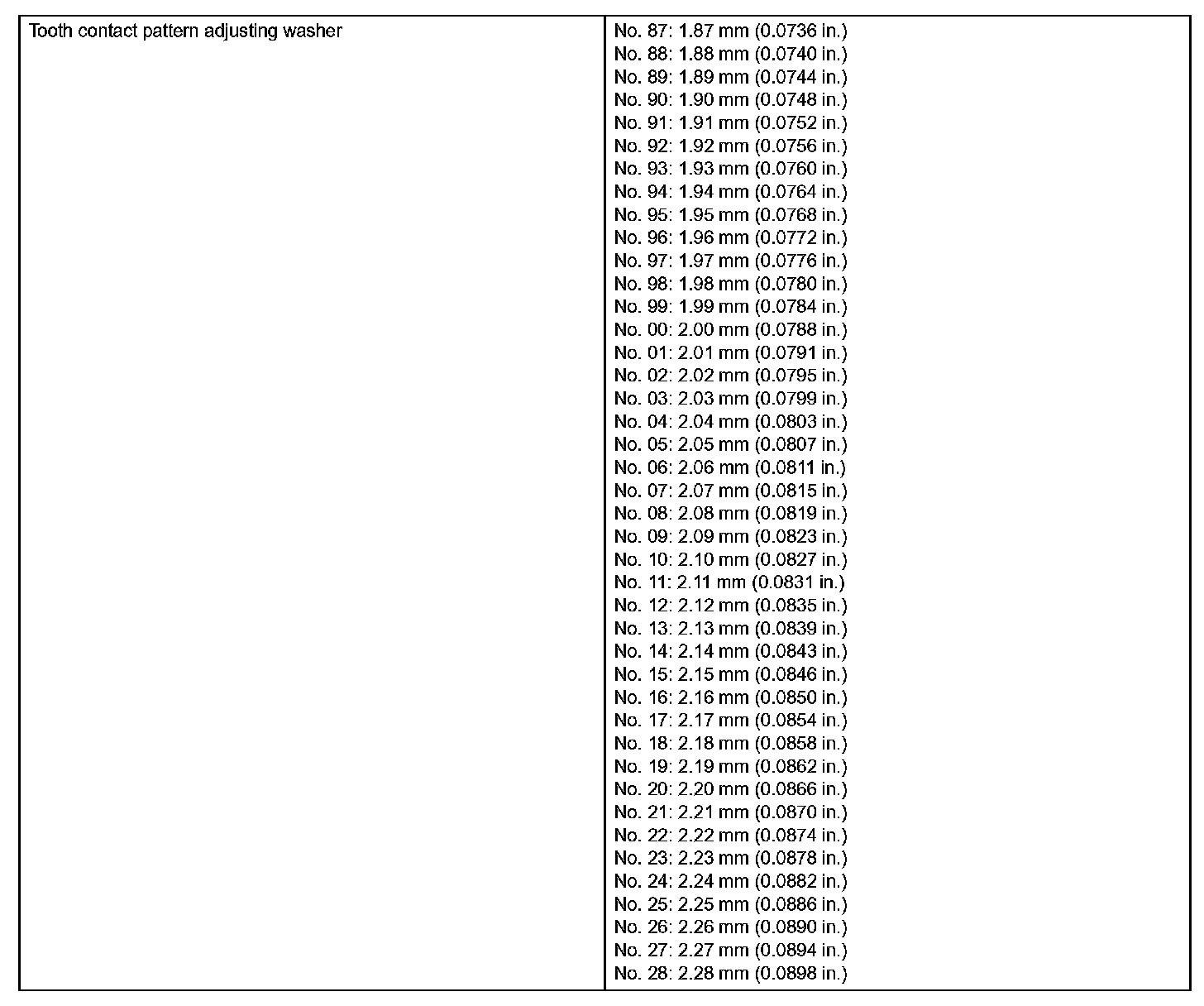

Differential - Service Data (Part 2):
