Shift Lever: Components

Fig 1: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (3 Of 5)
G05279306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

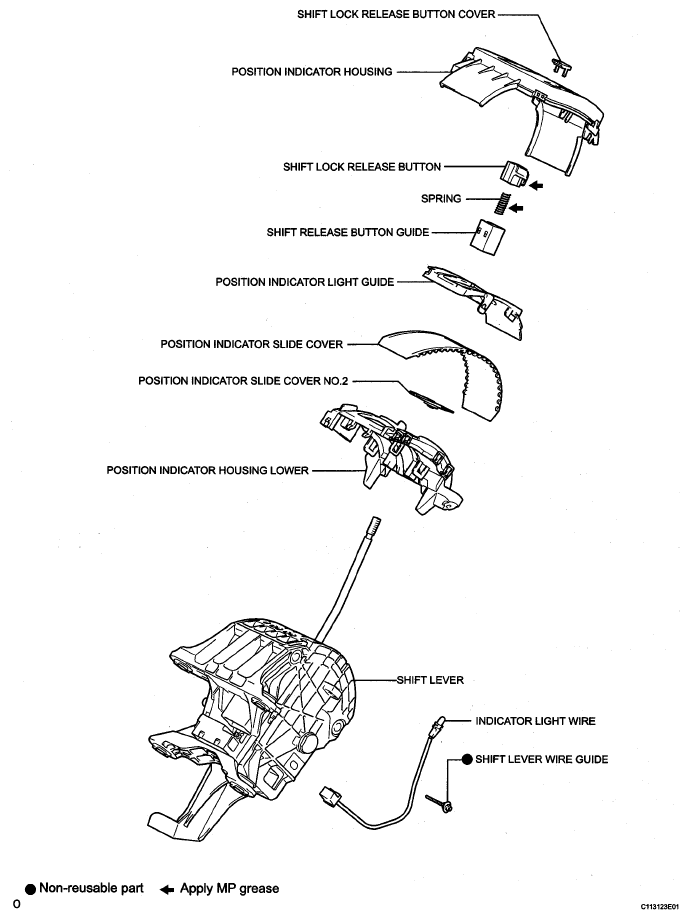

Fig 2: Identifying Shift Lever Components (2 Of 2)
G05279307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
