VSC OFF Indicator Light Circuit: Wiring Diagram

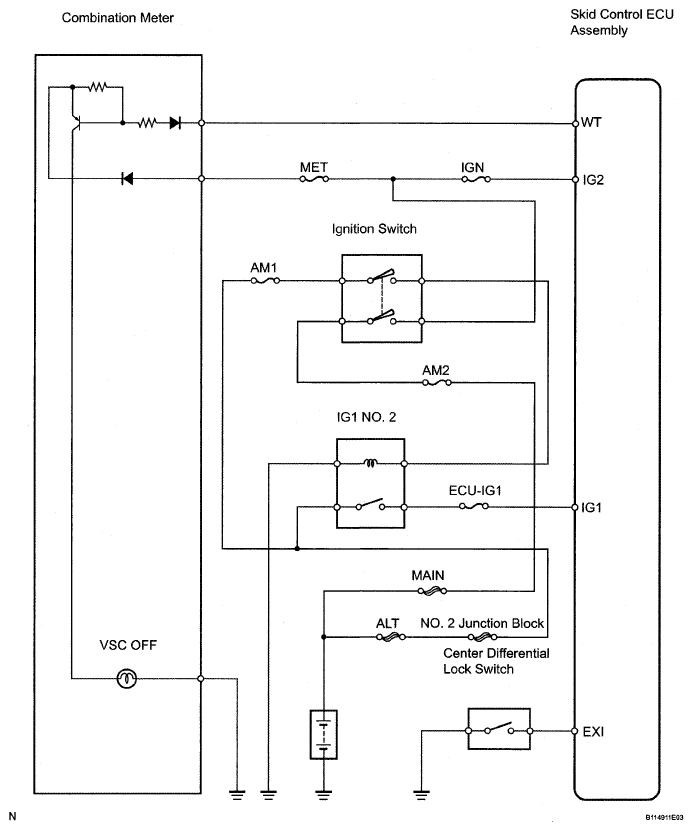

Fig 1: VSC OFF Indicator Light - Wiring Diagram

G05197674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
