Service Data

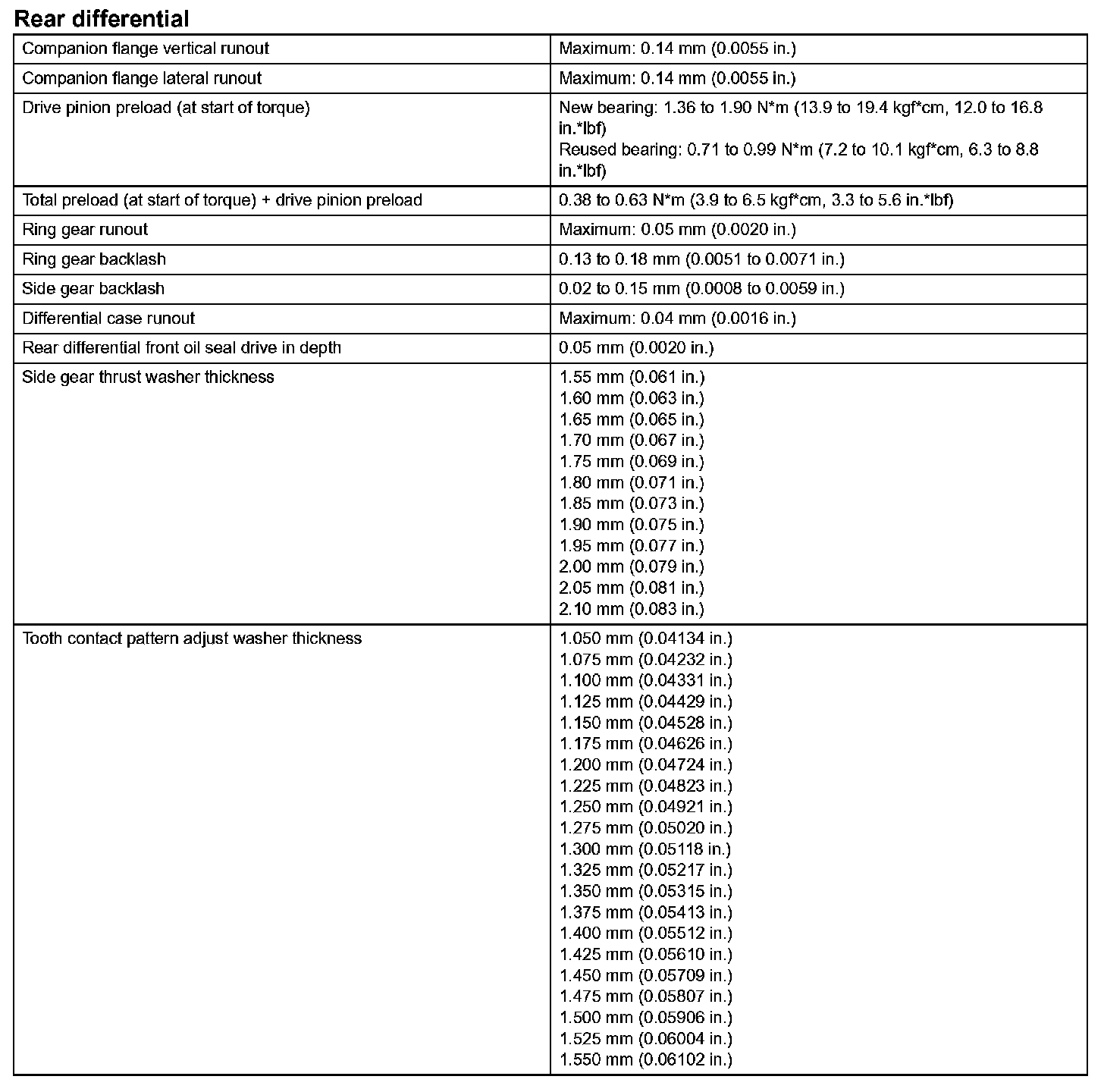

Differential - Service Data (Part 1):

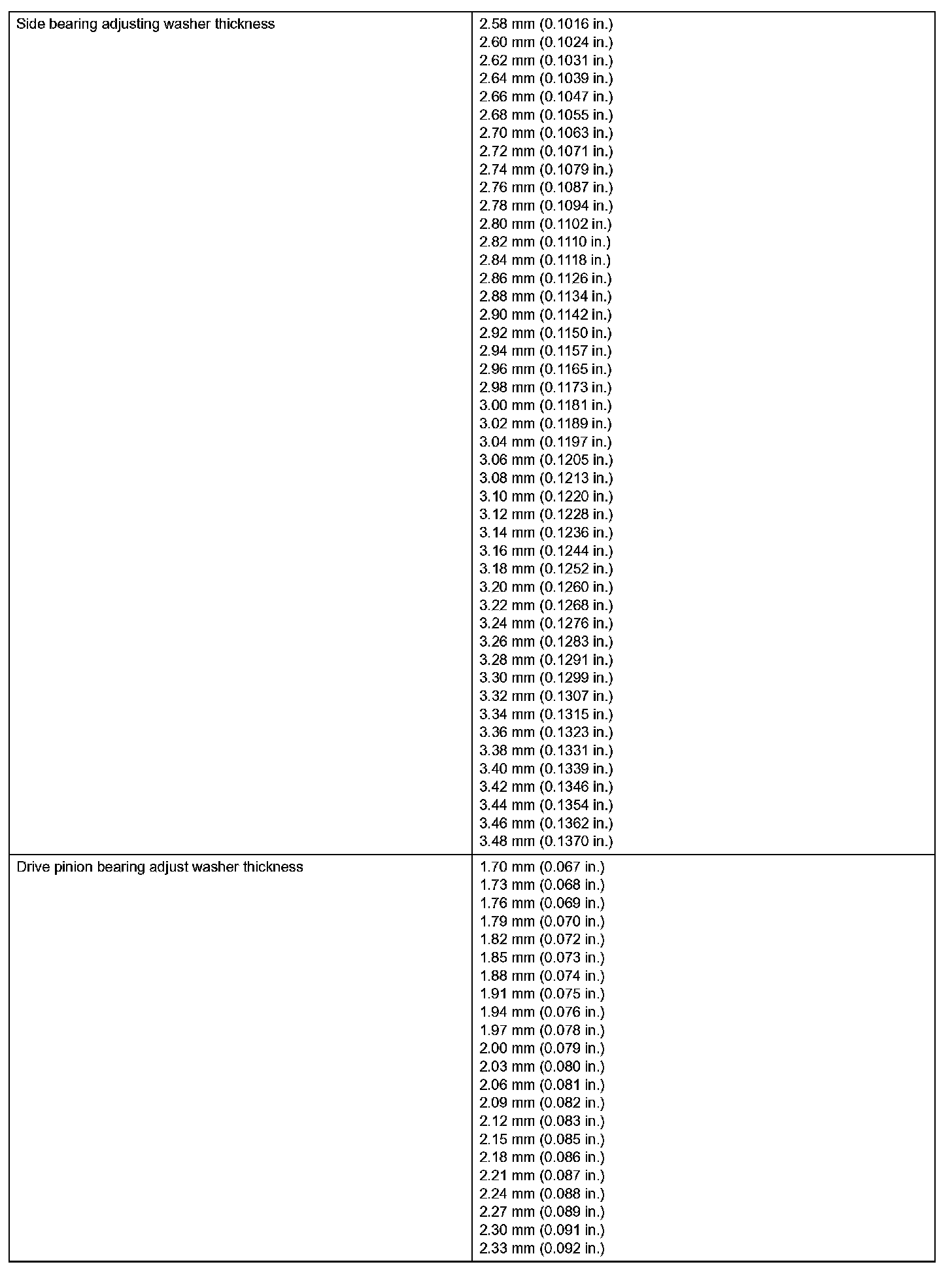

Differential - Service Data (Part 2):



Differential - Service Data (Part 3):
