Variable Induction Control Valve

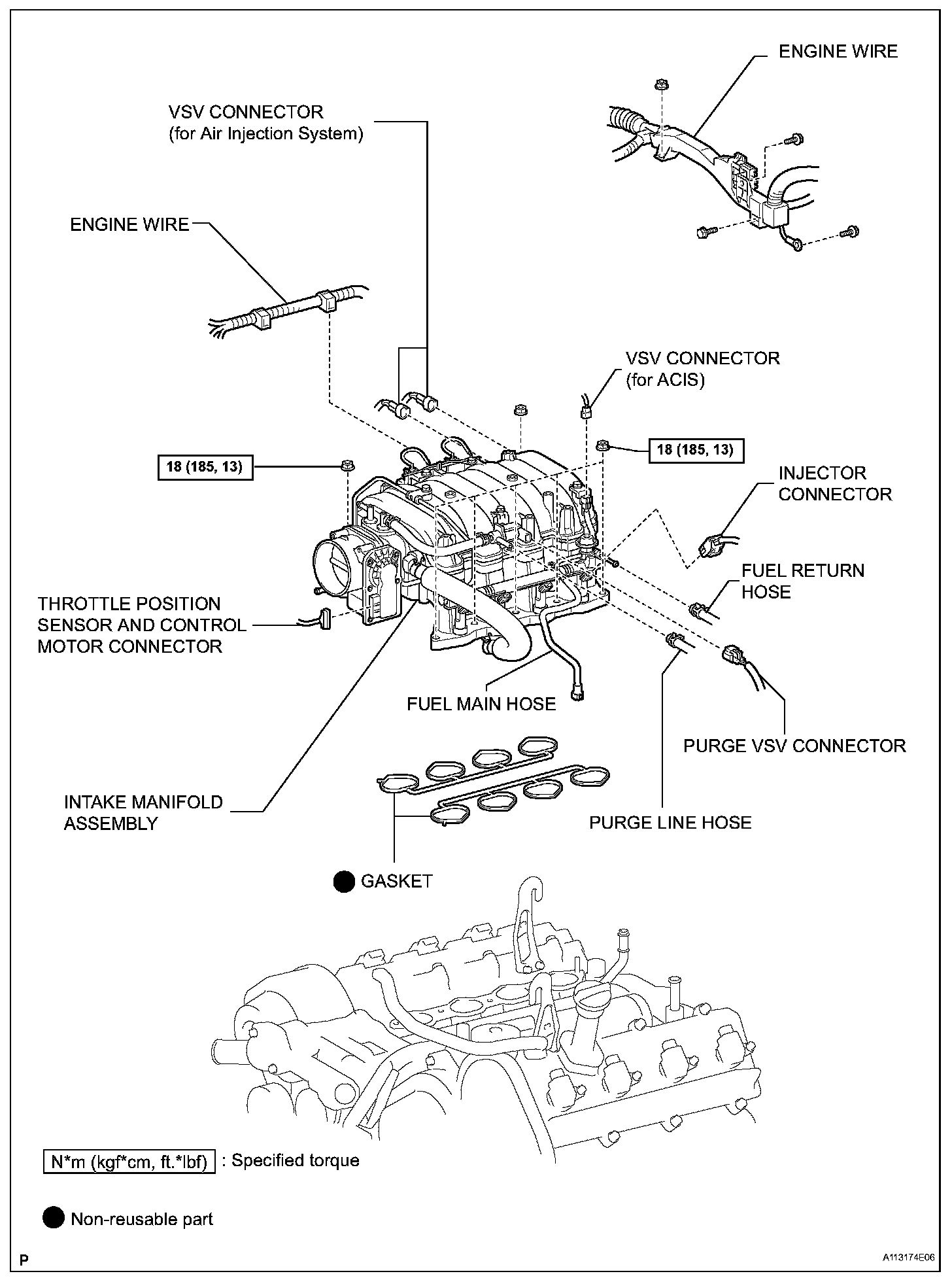

Vacuum Switching Valve:

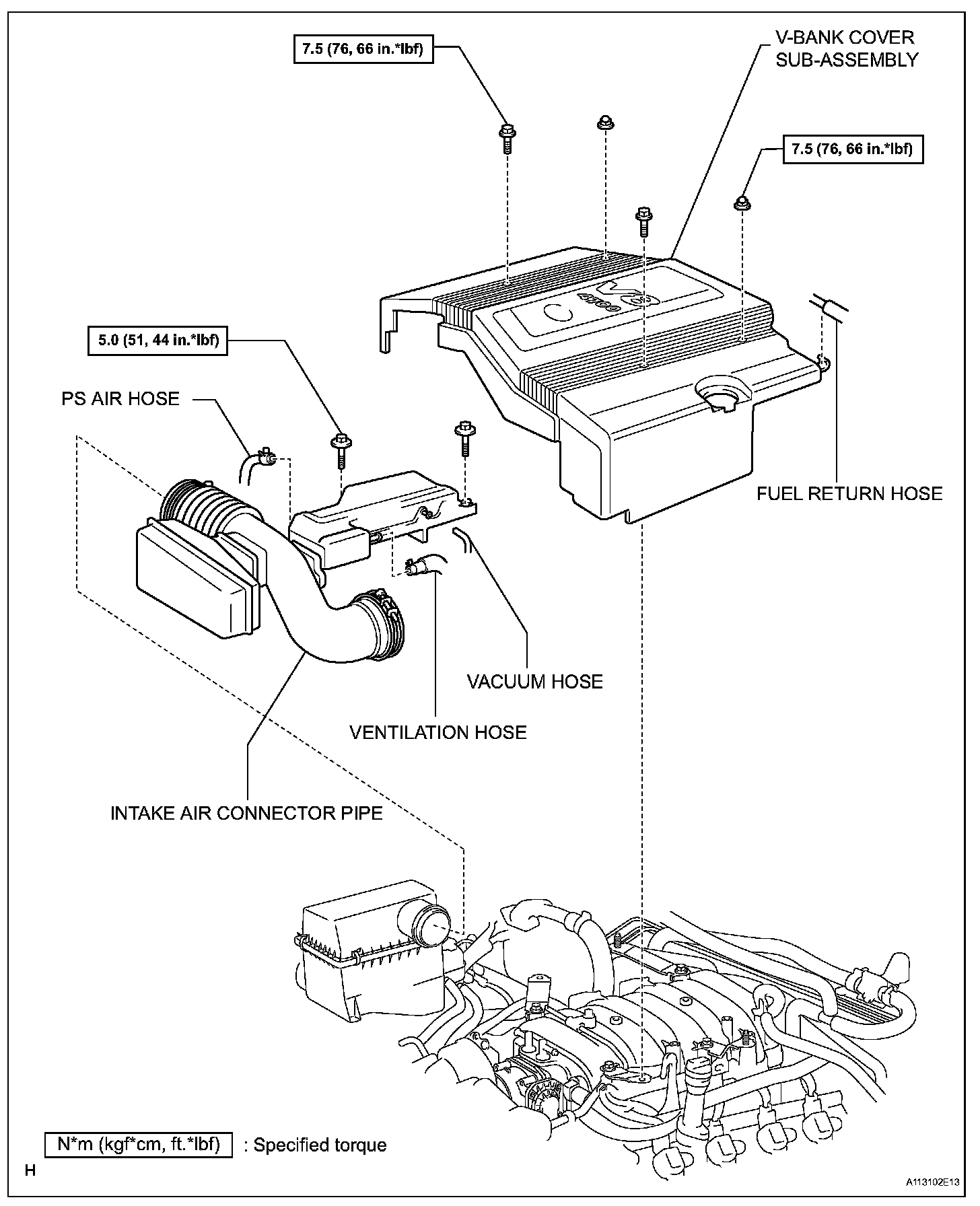

Vacuum Switching Valve:

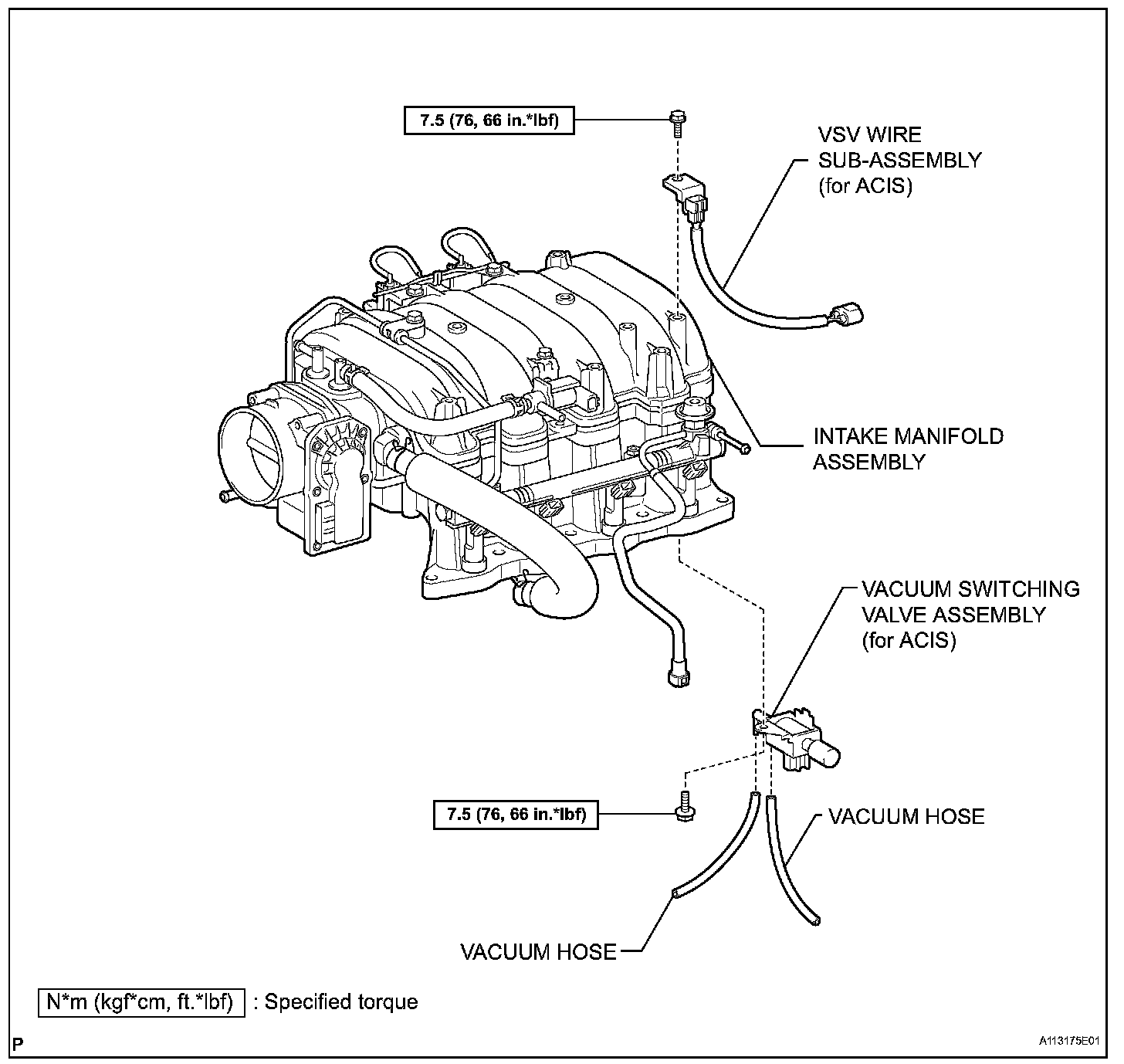

Vacuum Switching Valve:
