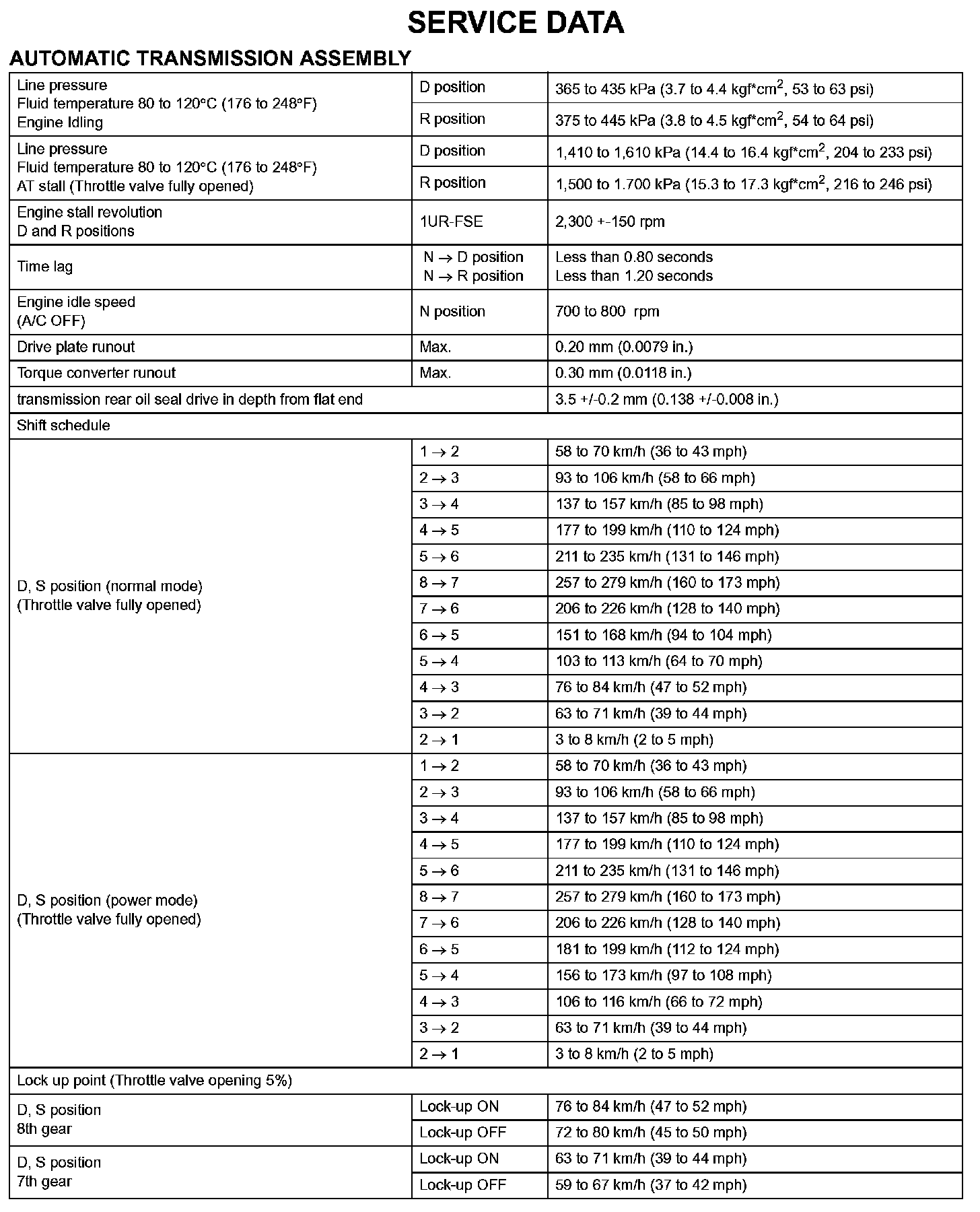

Service Data

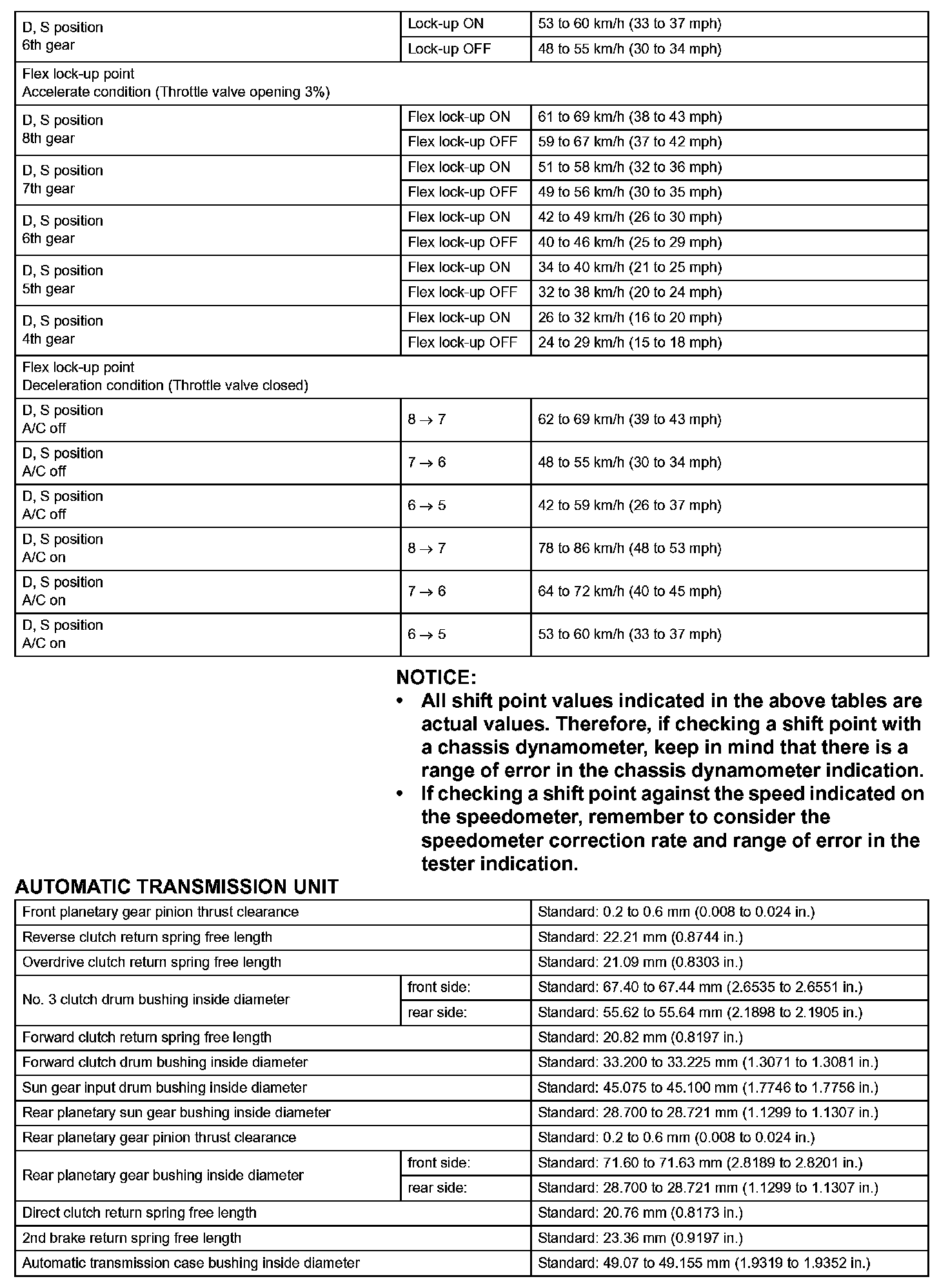

Automatic Transmission - Service Data (Part 1):

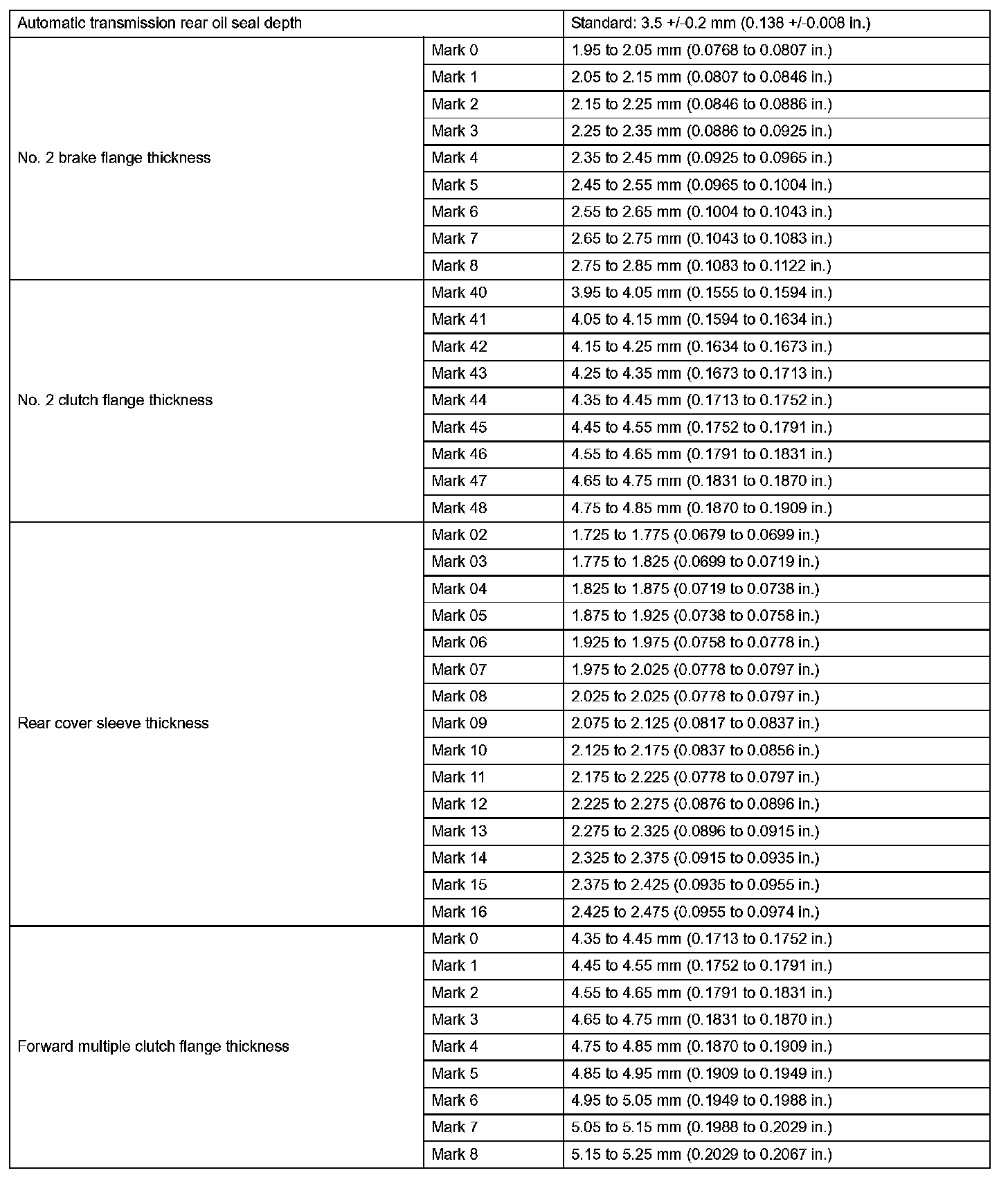

Automatic Transmission - Service Data (Part 2):



Automatic Transmission - Service Data (Part 3):

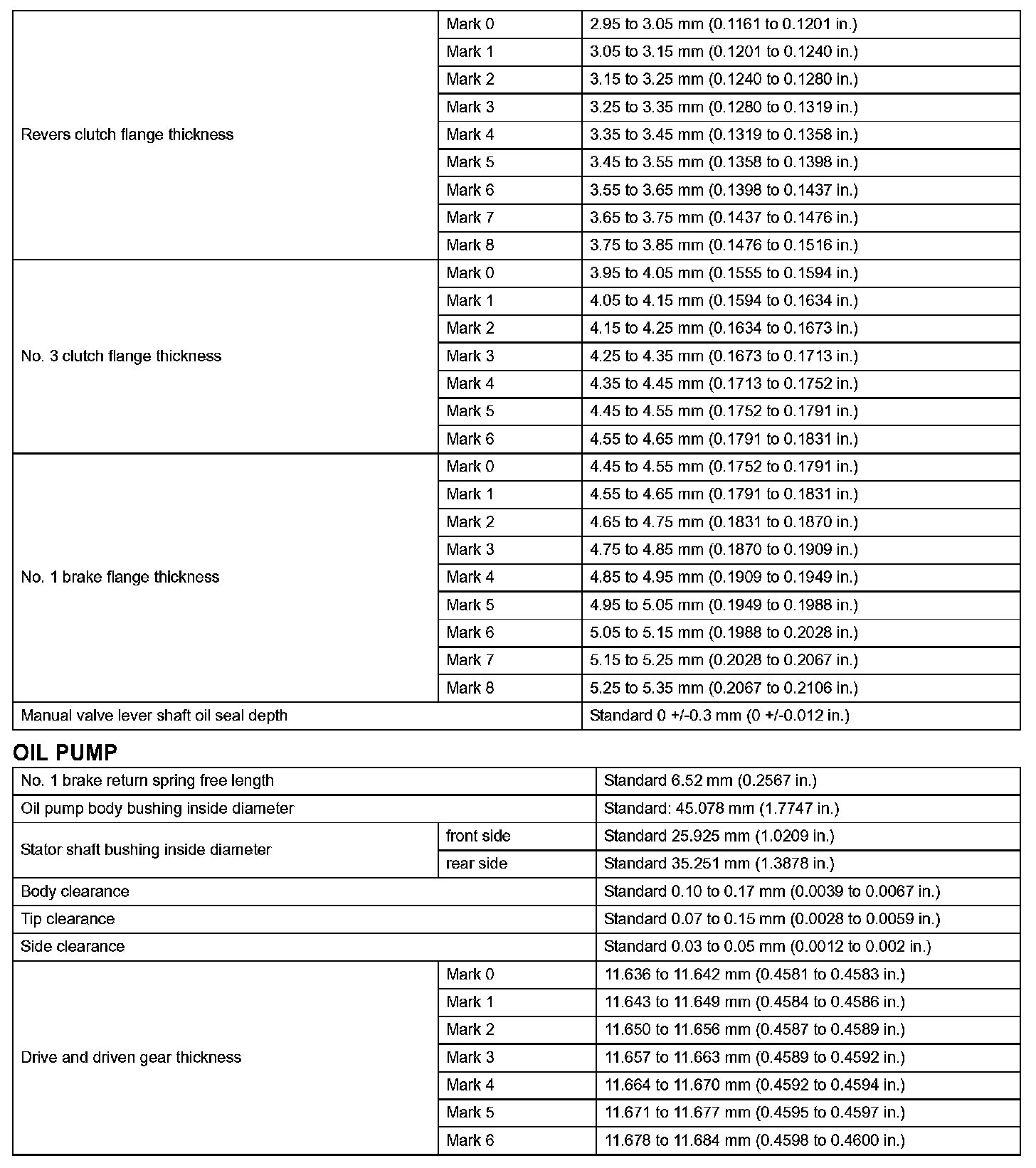

Automatic Transmission - Service Data (Part 4):
