Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Spark Plug

Spark Plug

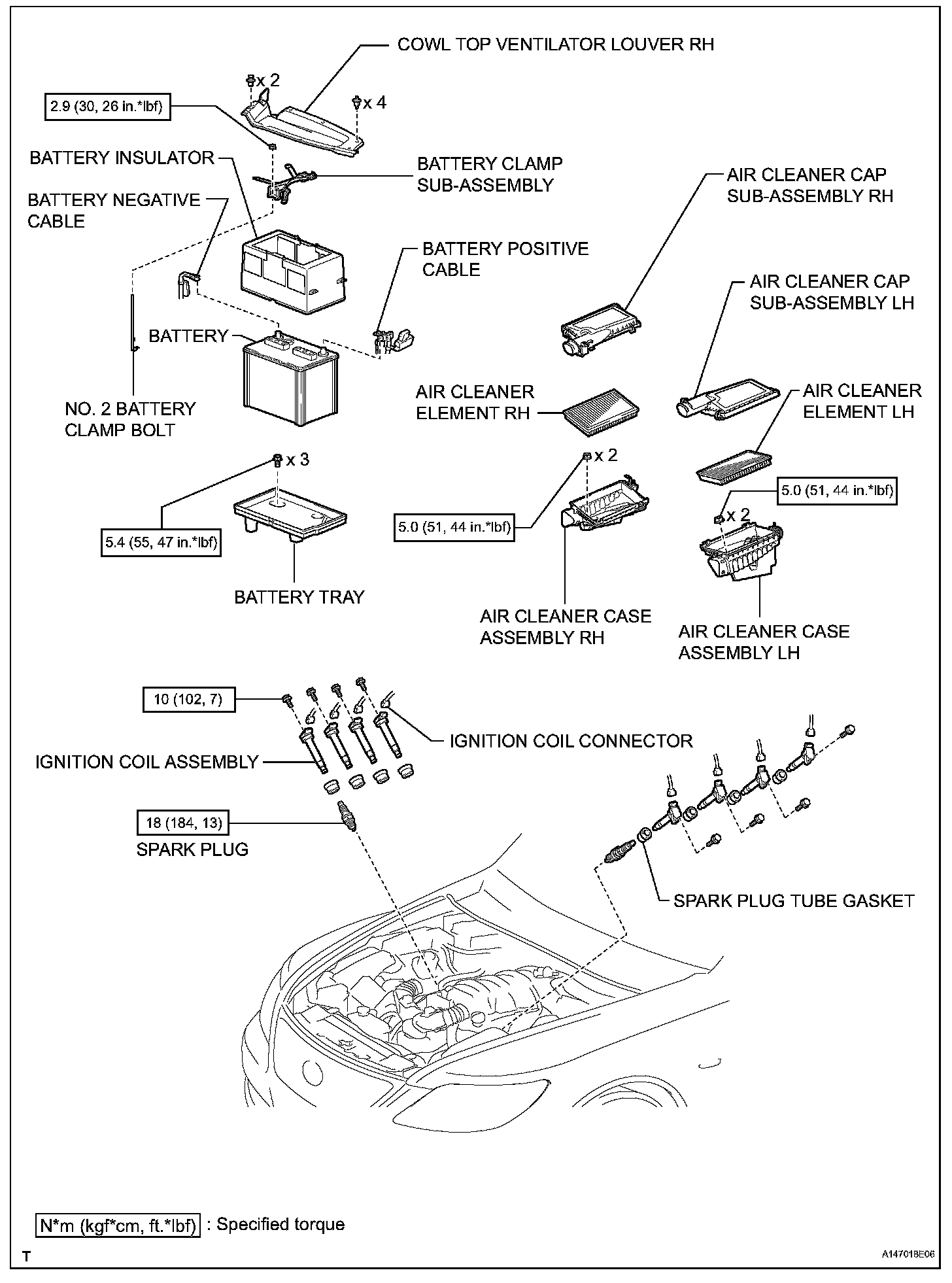

Ignition Coil And Spark Plug:

Ignition Coil And Spark Plug:

Ignition Coil And Spark Plug:
