Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Knock Sensor

Knock Sensor

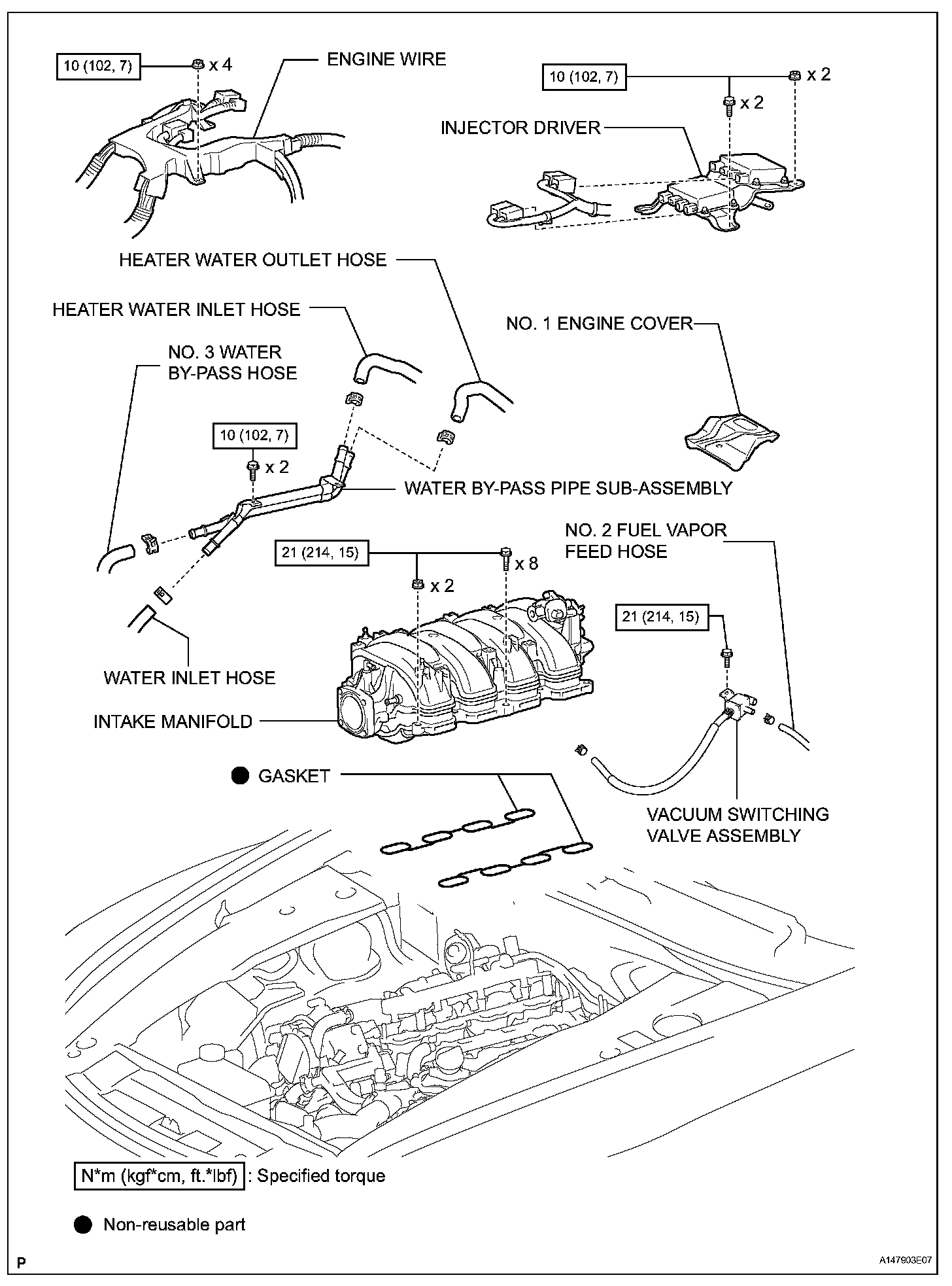

Knock Sensor:

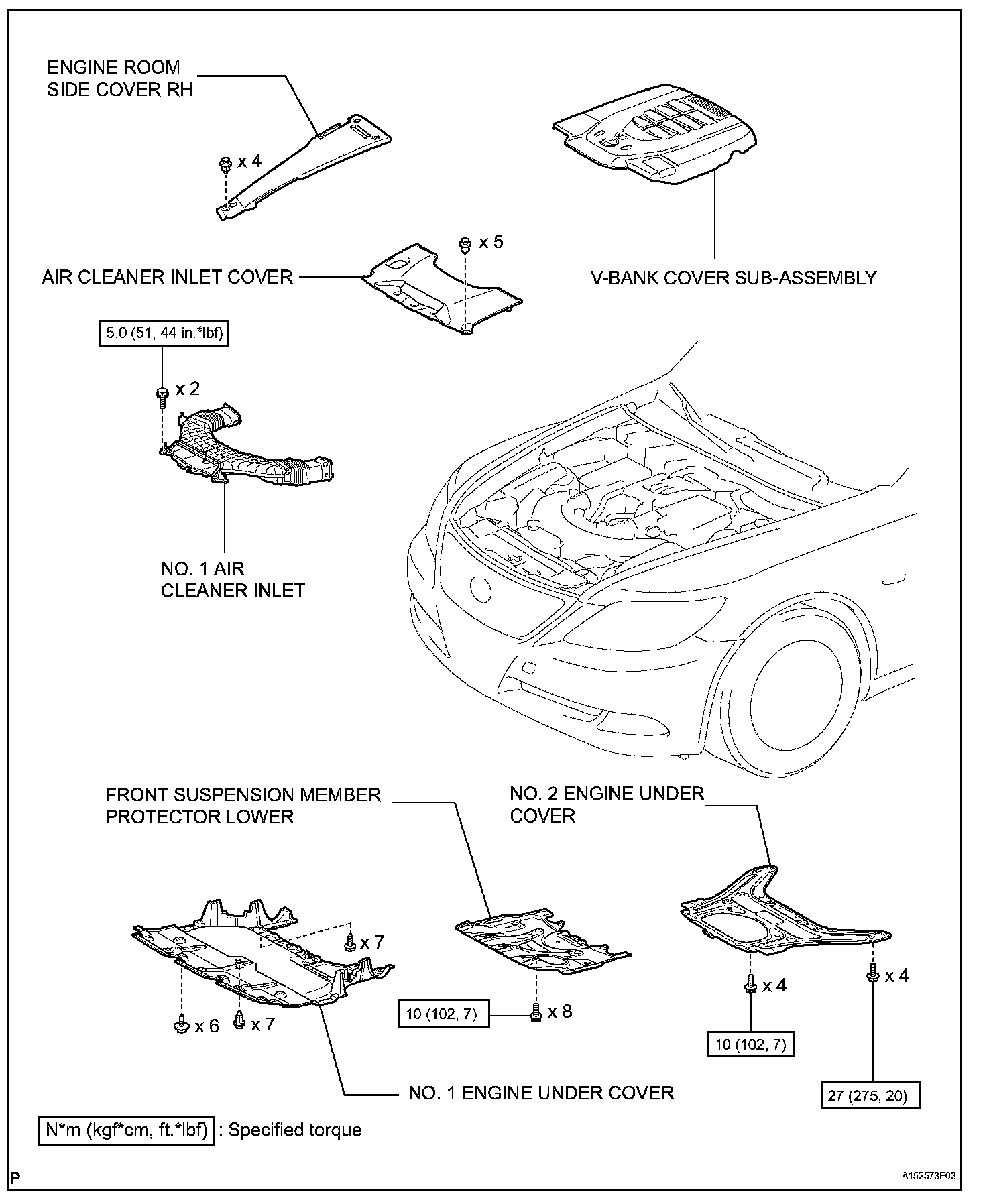

Knock Sensor:

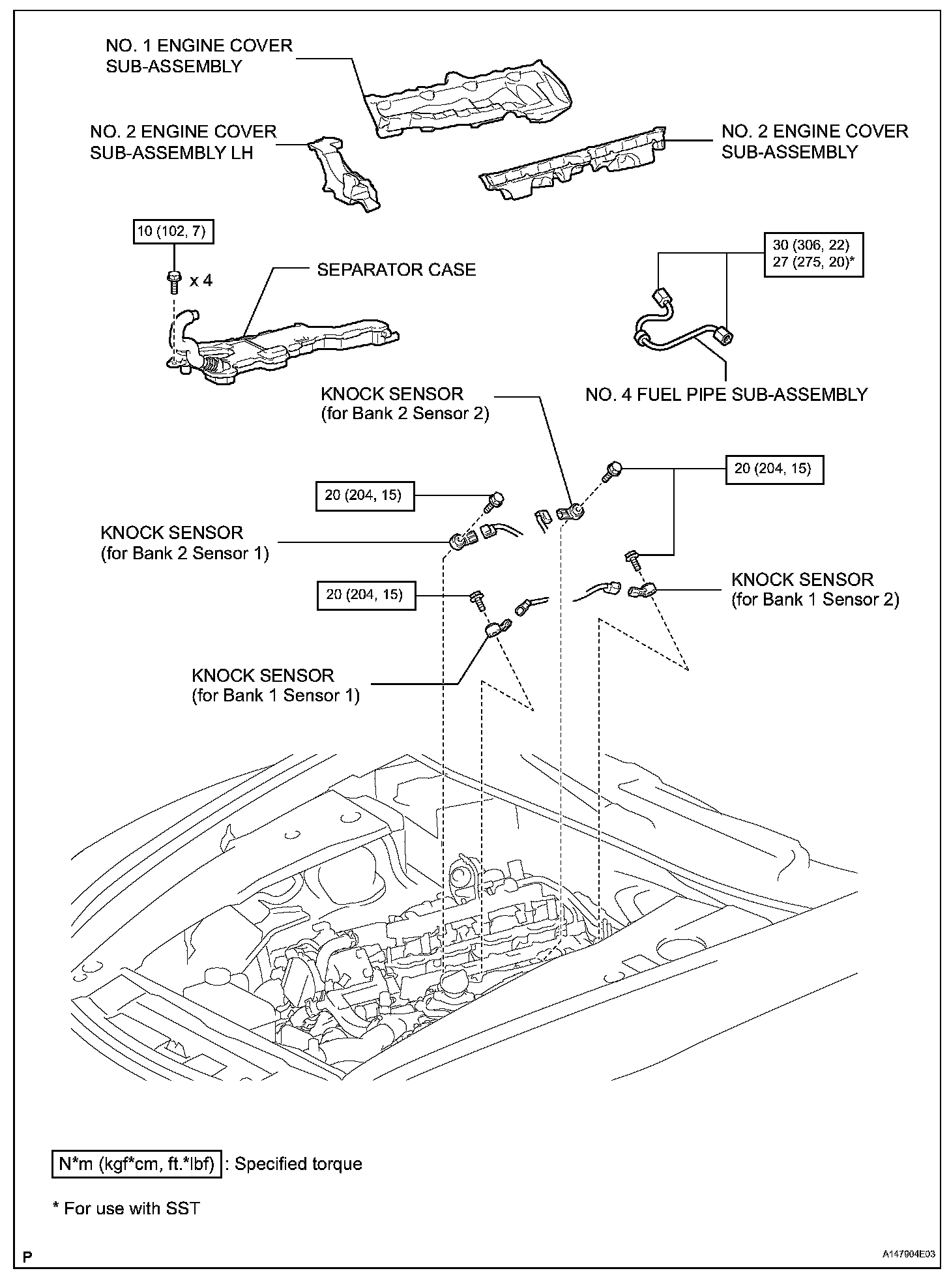

Knock Sensor:

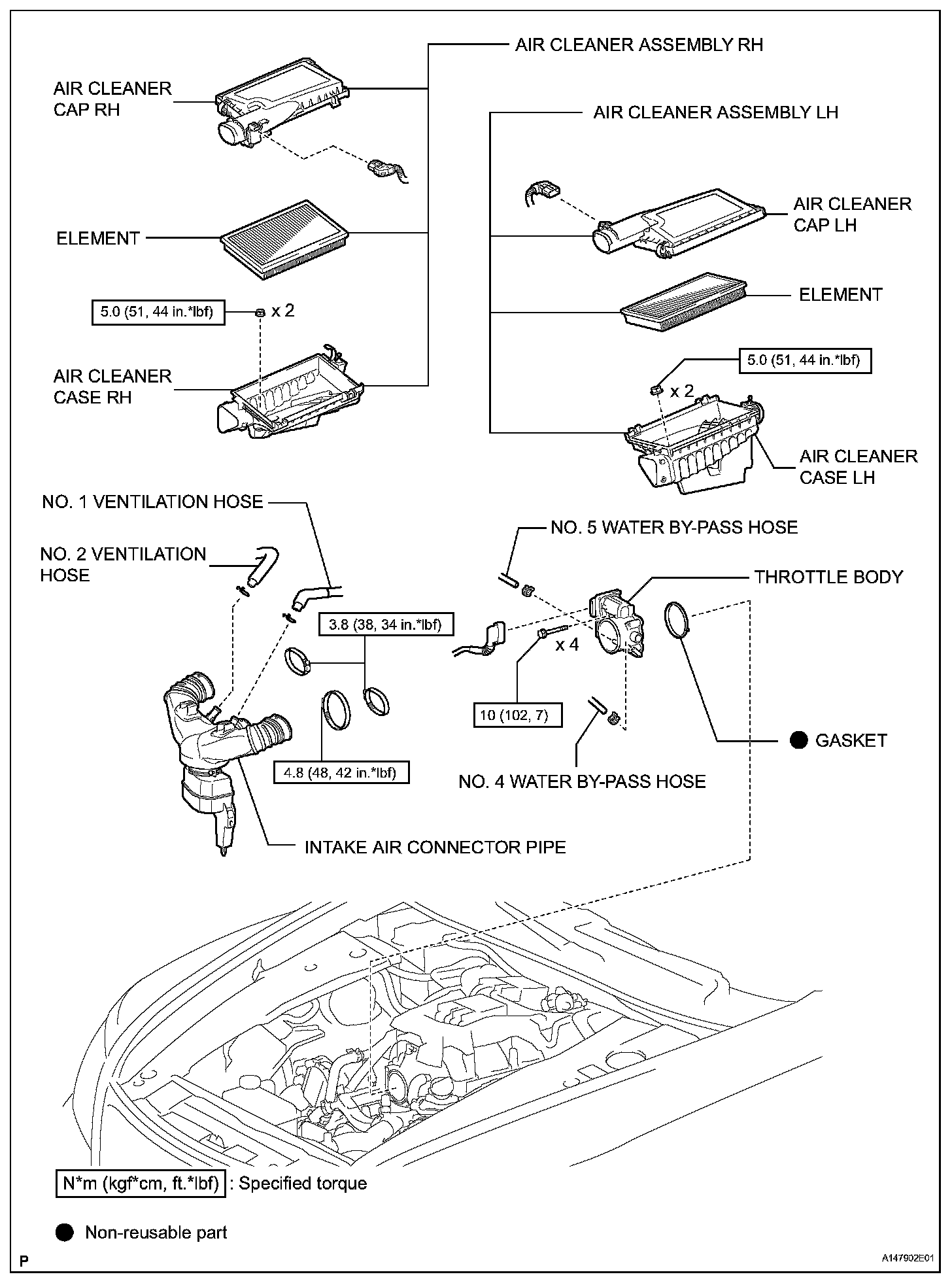

Knock Sensor:
