Fuel Pressure Sensor

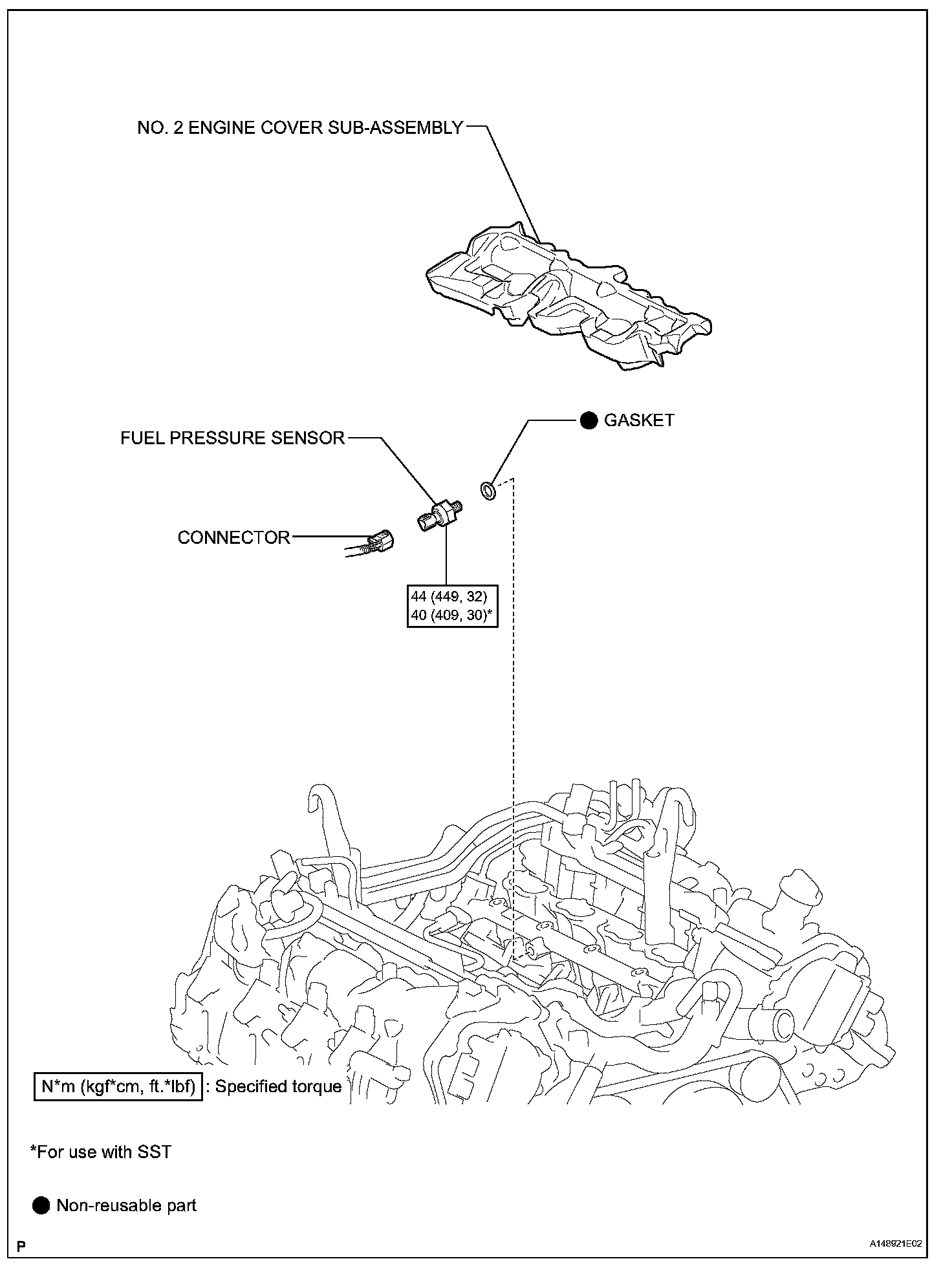

Fuel Pressure Sensor:



Fuel Pressure Sensor:



Fuel Pressure Sensor:



Fuel Pressure Sensor:
