Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Compressor/Pump, Suspension Control

Compressor/Pump, Suspension Control

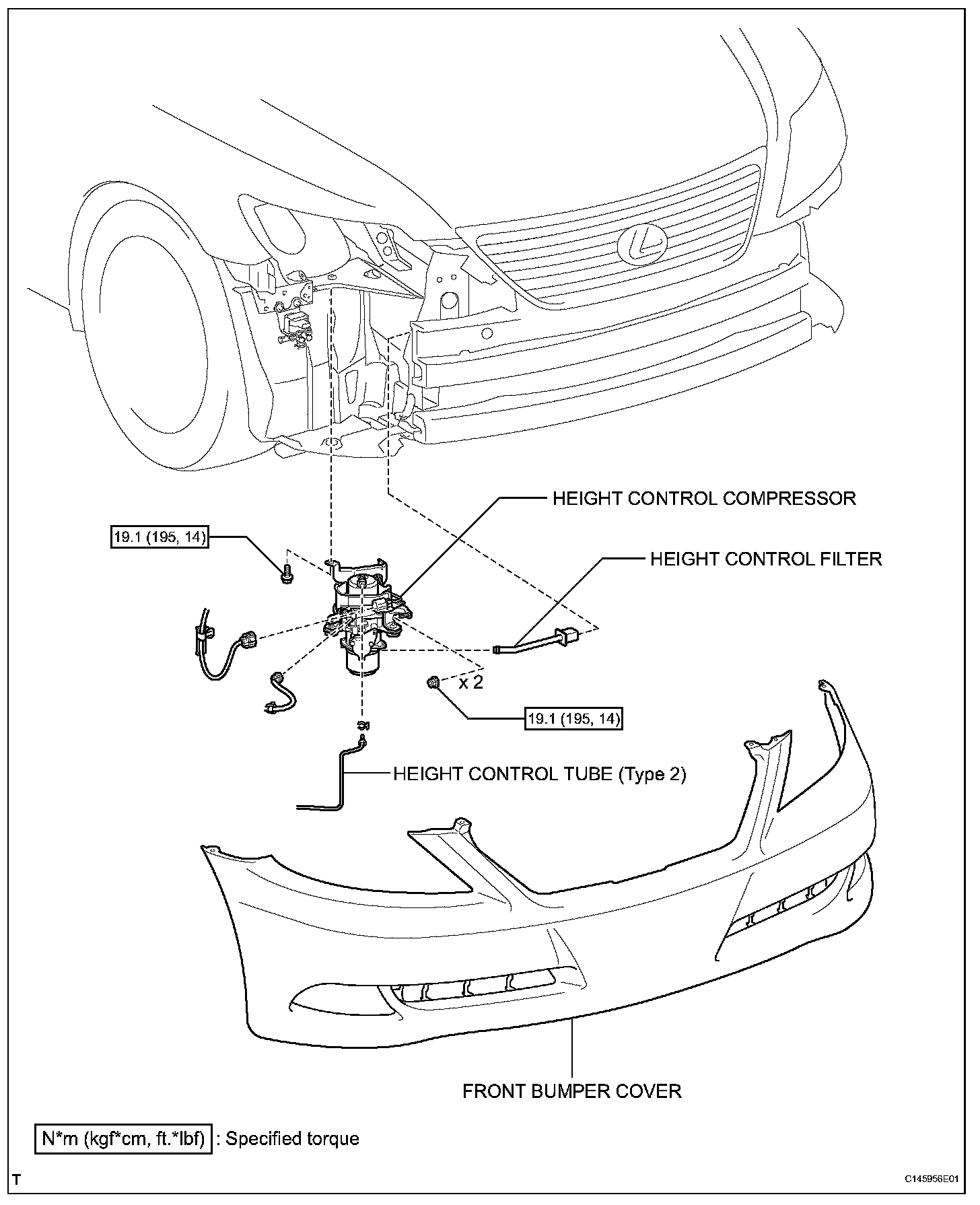

Height Control Compressor:

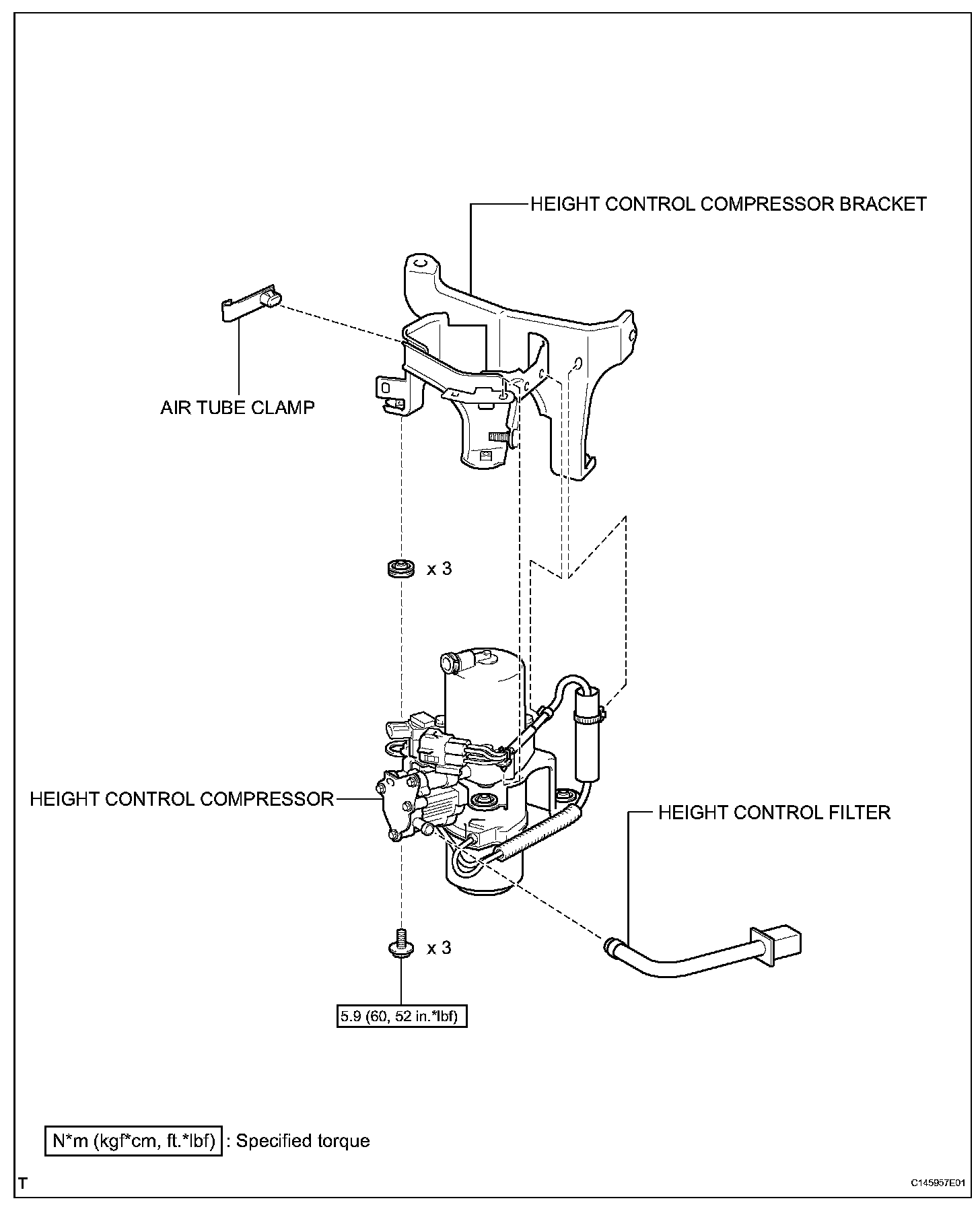

Height Control Compressor:
